GBV 345 - Electrolux/AYP Blower (2010-05) HOUSING Parts Diagram

Blower

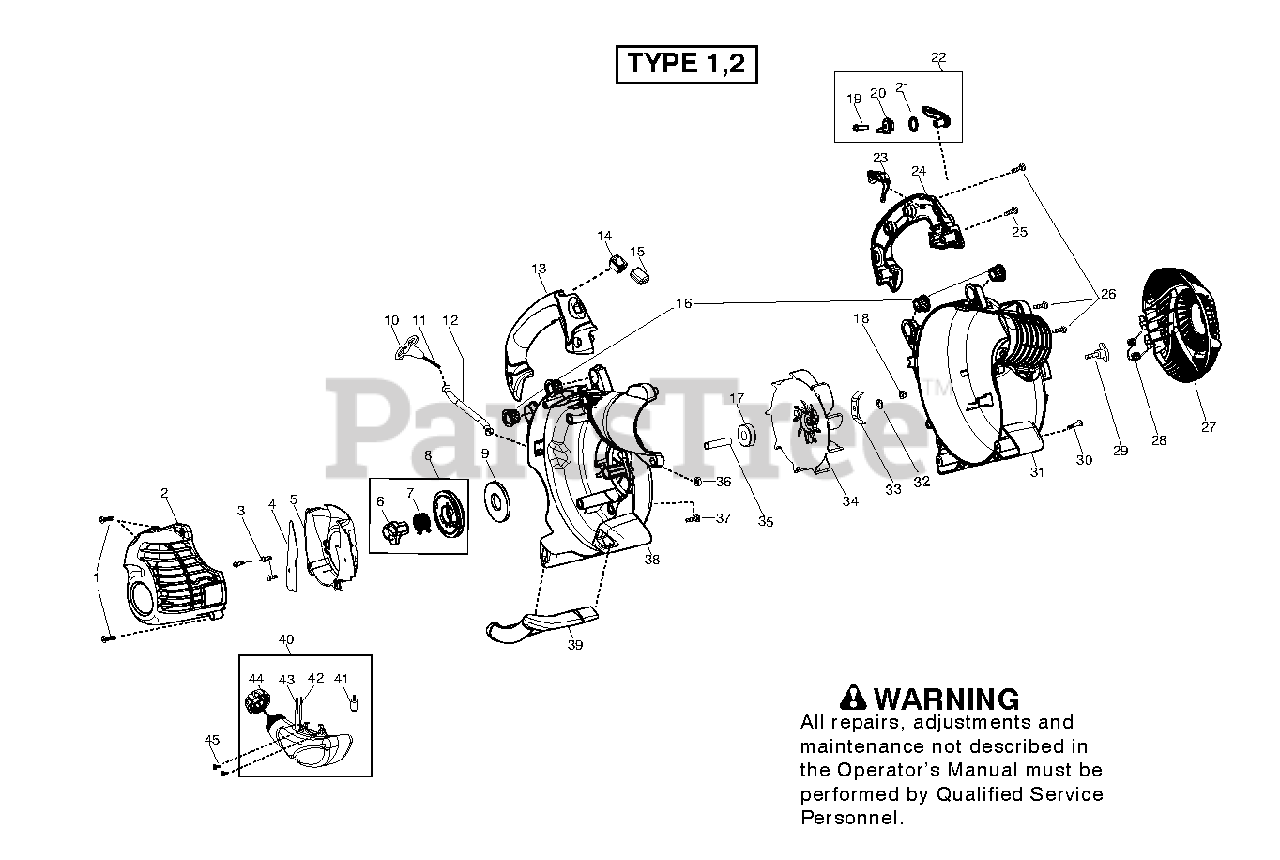

HOUSING Parts Diagram

  • Title

1

Electrolux/AYP 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

2

Electrolux/AYP 545150502

ASSY COVER ENGINE S

$

$

Not available

3

Electrolux/AYP 530015880

SCREW

$4.99

$

In Stock, Qty 8

0

4

Electrolux/AYP 545134001

SHIELD BAFFLE

$6.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 545099101

BAFFLE

$13.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 545052401

Pulley Hub, Si Sm

$3.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 545052501

Spring

$12.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 545050407

KIT STARTER PULLEY

$13.99

$

In Stock, only 3 left!

0

9

Electrolux/AYP 545054901

SPRING STARTER SA
(Superseded to 545008014)

$10.99

$

In Stock, only 1 left!

0

10

Electrolux/AYP 545152905

Handle

$3.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 545050416

Starter Rope Kit

$8.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 545107101

TUBE STARTER ROPE

$8.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 545138601

Handle with Soft Grip, RT

$9.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 545081830

KIT SWITCH

Note: (Incl 15)

$8.99

$

In Stock, only 1 left!

0

15

Electrolux/AYP 545128201

PROTECTOR, SWITCH

$4.99

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 545137701

Grommet

$4.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 545099001

HUB

$6.49

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530626605

NUT

$5.99

$

Usually ships in 3-10 days

0

19

Electrolux/AYP 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

20

Electrolux/AYP 545111501

RATCHET CRUISE CONTROL

$7.49

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 545173101

Washer

$3.99

$

Usually ships in 3-10 days

0

22

Electrolux/AYP 545180841

TRIGGER THROTTLE CONTROL

Note: ( Incl 19 20 21)

$12.99

$

Usually ships in 3-10 days

0

23

Electrolux/AYP 545144903

TRIGGER

$7.99

$

Usually ships in 3-10 days

0

24

Electrolux/AYP 545138801

Handle

$15.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 530016406

SCREW #10 PLASTITE 1.362

$6.49

$

In Stock, only 1 left!

0

26

Electrolux/AYP 530015814

SCREW

$6.49

$

In Stock, Qty 16

0

27

Electrolux/AYP 545139001

DOOR VAC BLACK

$10.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545115601

SPRING VAC DOOR

$4.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 545003502

SCREW

$3.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530015940

SCREW

$6.49

$

In Stock, Qty 8

0

31

Electrolux/AYP 545152501

ASSY SCROLL AV LH SRS BLK

Note: ( Incl 27 28)

$56.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530092322

LOCK WASHER

$3.49

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 545120701

BLADE MULCH

$9.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 545113601

ASSY IMPELLAR HUB
(Superseded to 580780901)

$14.99

$

In Stock, only 3 left!

0

35

Electrolux/AYP 545113701

SPACER FLYWHEEL

$5.99

$

In Stock, only 1 left!

0

36

Electrolux/AYP 000000000

NO LONGER AVAILABLE

Note: SEE SERVICE REFERENCE FOR PART NUMBER

$

$

Not available

37

Electrolux/AYP 530016386

SCREW

$8.99

$

In Stock, only 1 left!

0

38

Electrolux/AYP 545161608

ASSY SCROLL BEARING BLACK

Note: (Incl 17)

$

$

Not available

39

Electrolux/AYP 545138501

Handle

$12.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 545100401

Fuel Tank Assembly, Non Low Perm St
(Superseded to 578943308)

Note: (Incl 41 42 43 44)

$

$

Not available

41

Electrolux/AYP 530095646

FUEL PICK-UP ASSY

$6.99

$

In Stock, Qty 20+

0

42

Electrolux/AYP 530069247

KIT-LINE

$7.99

$

In Stock, Qty 20+

0

43

Electrolux/AYP 530069216

LINE KIT

$11.99

$

In Stock, Qty 20+

0

44

Electrolux/AYP 530057973

ASSY FUEL CAP W/RETAINER
(Superseded to 578931605)

$9.49

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 530016445

SCREW FUEL TANK RETAINER

$6.49

$

Usually ships in 3-10 days

0
