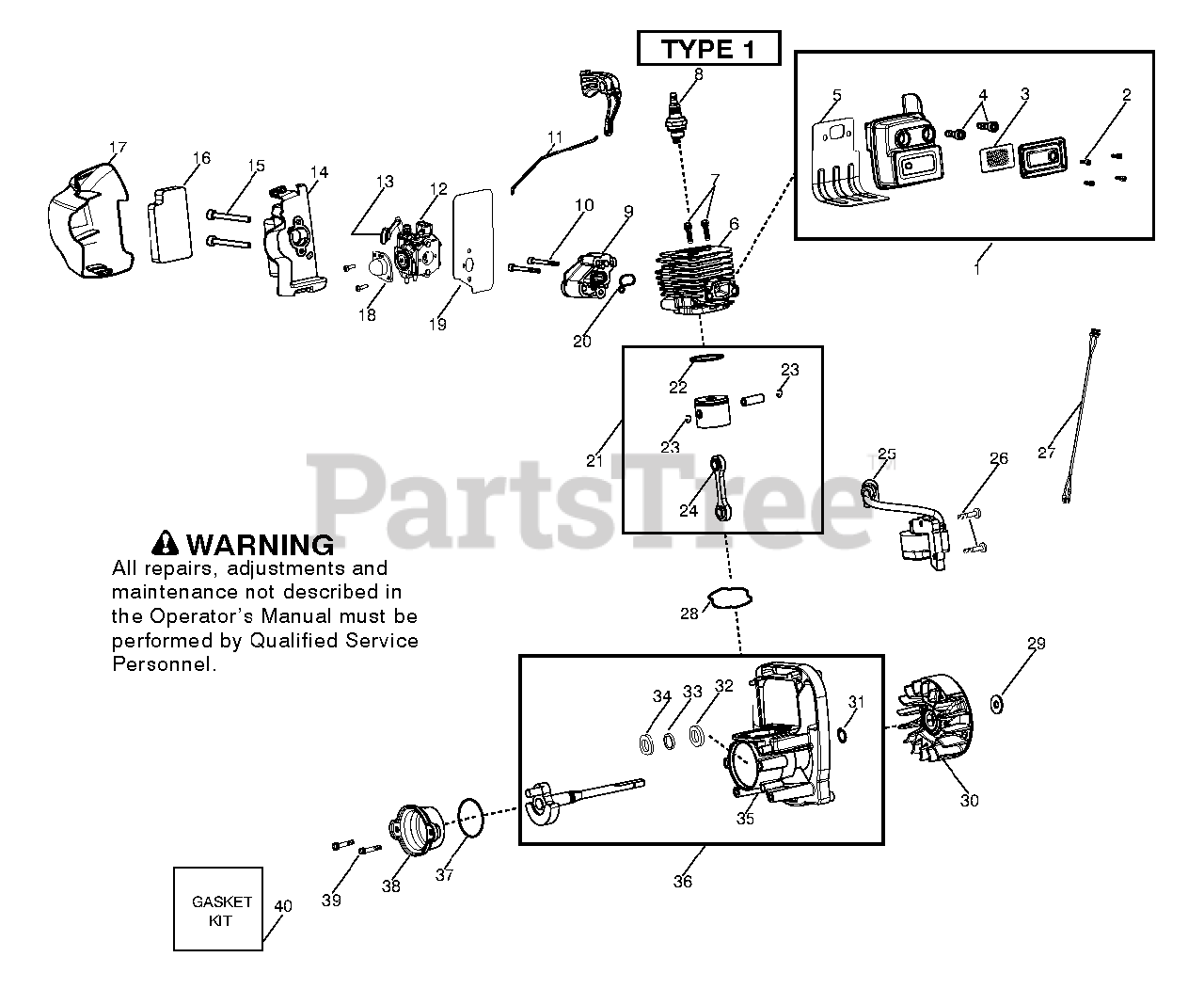

GBV 345 - Electrolux/AYP Blower (2010-05) ENGINE Parts Diagram

Blower

ENGINE Parts Diagram

  • Title

1

Electrolux/AYP 545090001

ASSY MUFFLER
(Superseded to 525592801)

Note: (Incl 2 3 4 5)

$51.99

$

In Stock, only 1 left!

0

2

Electrolux/AYP 530015241

SCREW-6-19X5/16PLAST PA

$3.99

$

Usually ships in 3-10 days

0

3

Electrolux/AYP 545081845

Muffler Assembly, Welded
(Superseded to 525592801)

$51.99

$

In Stock, only 1 left!

0

4

Electrolux/AYP 530058982

BOLT MUFFLER

$4.99

$

In Stock, Qty 7

0

5

Electrolux/AYP 545081832

KIT GASKET 25CC

$17.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 545115301

CYLINDER CHROME 25CC

$

$

Not available

7

Electrolux/AYP 530015953

SCREW

$6.49

$

In Stock, Qty 7

0

8

Electrolux/AYP 952030249

PLUG-SPARK (RCJ-6Y)

$4.99

$

In Stock, Qty 20+

0

9

Electrolux/AYP 545084901

ADAPTER CARBURETOR

$17.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 530016441

SCREW

$6.49

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 545115501

LINKAGE THROTTLE

$6.49

$

In Stock, only 1 left!

0

12

Electrolux/AYP 545081857

Carburetor Kit, C1U-W43

Note: (Incl 13 18)

$50.99

$

In Stock, only 3 left!

0

13

Electrolux/AYP 545157104

Choke Lever, C1U-W43

$12.99

$

In Stock, only 1 left!

0

14

Electrolux/AYP 545139303

BASE AIRBOX PP GOLD

$

$

Not available

15

Electrolux/AYP 530016429

SCREW

$6.49

$

In Stock, Qty 6

0

16

Electrolux/AYP 545146501

Air Filter, Foam

$6.99

$

Usually ships in 3-10 days

0

17

Electrolux/AYP 545139201

Air Box Cover, Black

$7.99

$

Usually ships in 3-10 days

0

18

Electrolux/AYP 530058709

PURGE BULB ZAMA

$7.99

$

In Stock, only 1 left!

0

19

Electrolux/AYP 545081832

KIT GASKET 25CC

$17.99

$

Usually ships in 3-10 days

0

20

Electrolux/AYP 545081832

KIT GASKET 25CC

$17.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 545081864

KIT PISTON CONN ROD

Note: (Incl 22 23 24)

$53.99

$

In Stock, only 1 left!

0

22

Electrolux/AYP 530012472

RING-PISTON
(Superseded to 545154009)

$4.99

$

In Stock, only 2 left!

0

23

Electrolux/AYP 530015162

WRIST PIN RET.

$6.49

$

In Stock, only 1 left!

0

24

Electrolux/AYP 545081865

KIT PISTON CONN ROD FORGED
(Superseded to 545156002)

$34.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 545158001

KIT MODULE W/0 INTERRUPT
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530016357

SCREW

$6.49

$

In Stock, only 4 left!

0

27

Electrolux/AYP 545127601

HARNESS WIRE

$9.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 545081832

KIT GASKET 25CC

$17.99

$

Usually ships in 3-10 days

0

29

Electrolux/AYP 530015828

WASHER FLAT

$4.99

$

Usually ships in 3-10 days

0

30

Electrolux/AYP 530054115

FLYWHEEL
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

31

Electrolux/AYP 530015941

RETAINING RING

$4.99

$

Usually ships in 3-10 days

0

32

Electrolux/AYP 530055728

OUTER BEARING

$9.99

$

Usually ships in 3-10 days

0

33

Electrolux/AYP 530019264

Seal

$7.49

$

In Stock, only 1 left!

0

34

Electrolux/AYP 530032125

BEARING
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 530012582

ASSY CRANKCASE

Note: (Incl 32 33 34)

$37.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 545102102

ASSY CRANKCASE & CRANKSHAFT

Note: (Incl 31 35)

$

$

Not available

37

Electrolux/AYP 545081832

KIT GASKET 25CC

$17.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 530057954

ASSY REAR PLUG

Note: (Incl 37)

$5.99

$

In Stock, only 1 left!

0

39

Electrolux/AYP 530016386

SCREW

$8.99

$

In Stock, only 1 left!

0

40

Electrolux/AYP 545081832

KIT GASKET 25CC

Note: (Incl 5 19 20 28 37)

$17.99

$

Usually ships in 3-10 days

0
