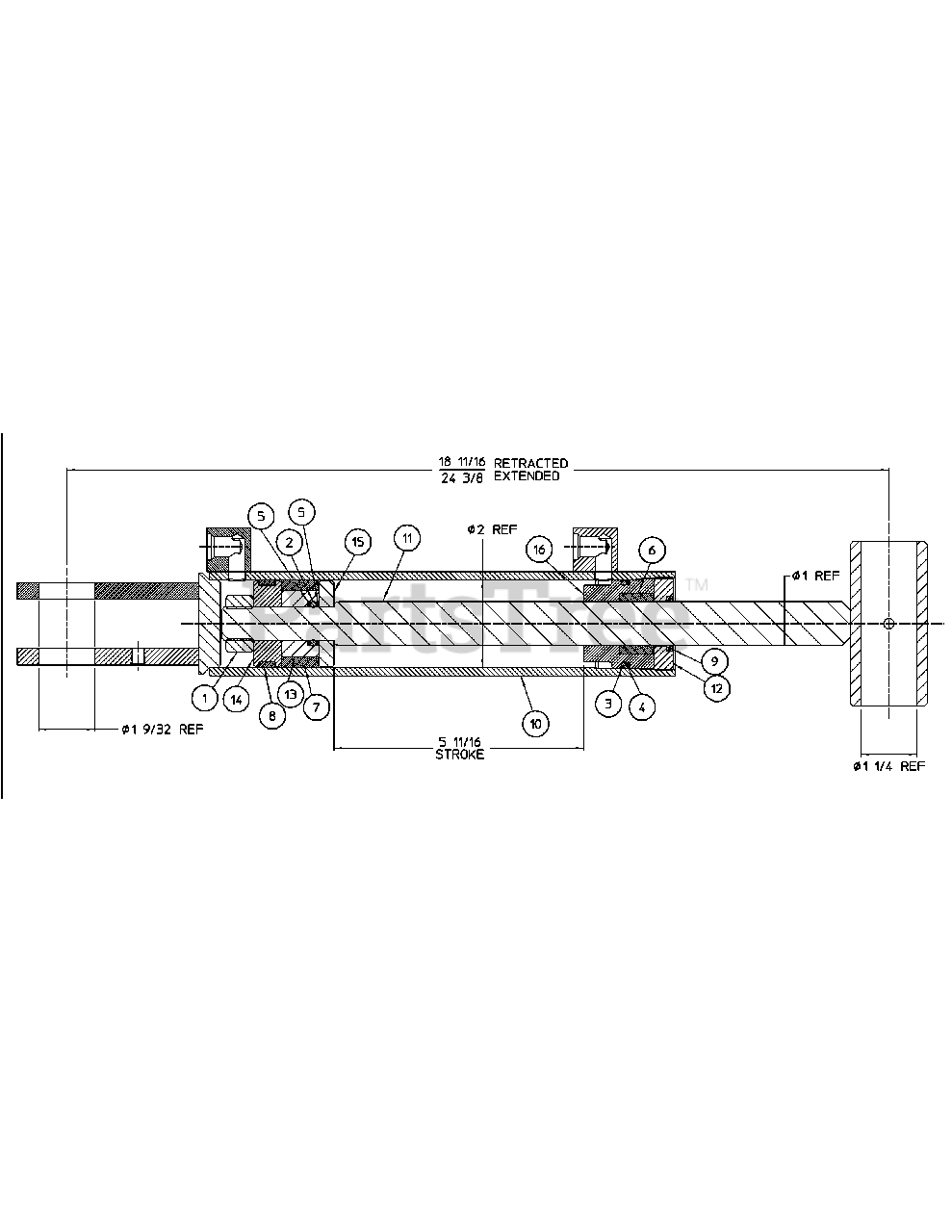

GB 600 (59A40141727) - Cub Cadet Yanmar Tractor Grapple Bucket Attachment Hydraulic Cylinder Assembly Parts Diagram

Tractor Grapple Bucket Attachment

Hydraulic Cylinder Assembly Parts Diagram

  • Title

1

Cub Cadet AQ-007574

Nut, Hex 3/4-16 Gr 5 Lock

$

$

Not available

2

Cub Cadet N/A

O-Ring, 1" OD x 3/4 ID

Note: Order AQ-904485

$

$

Currently unavailable

3

Cub Cadet N/A

O-Ring

Note: Order AQ-904485

$

$

Currently unavailable

4

Cub Cadet N/A

Back-Up Ring

Note: Order AQ-904485

$

$

Currently unavailable

5

Cub Cadet N/A

Back-Up Ring

Note: Order AQ-904485

$

$

Currently unavailable

6

Cub Cadet N/A

V-Ring Packing

Note: Order AQ-904485

$

$

Currently unavailable

7

Cub Cadet N/A

V-Stack

Note: Order AQ-904485

$

$

Currently unavailable

8

Cub Cadet N/A

Wear Ring

Note: Order AQ-904485

$

$

Currently unavailable

9

Cub Cadet N/A

Rod Wiper

Note: Order AQ-904485

$

$

Currently unavailable

10

Cub Cadet N/A

Cylinder Tube Weldment

Note: Order AQ-000206

$

$

Currently unavailable

11

Cub Cadet AQ-903540

Piston Rod Weldment

$

$

Not available

12

Cub Cadet AQ-904053

Gland Nut

$

$

Not available

13

Cub Cadet AQ-904431

Piston Spacer

$

$

Not available

14

Cub Cadet AQ-904466

Piston

$

$

Not available

15

Cub Cadet AQ-904467

Piston Washer

$

$

Not available

16

Cub Cadet AQ-904541

Gland

$

$

Not available

Cub Cadet AQ-904485

Seal Repair Kit

Note: (Incl. Ref 2-9)

$

$

Not available

Cub Cadet AQ-000206

Complete Hydraulic Cylinder

$

$

Not available
