GB 600 (59A40141727) - Cub Cadet Yanmar Tractor Grapple Bucket Attachment Grapple Bucket Parts Diagram

Tractor Grapple Bucket Attachment

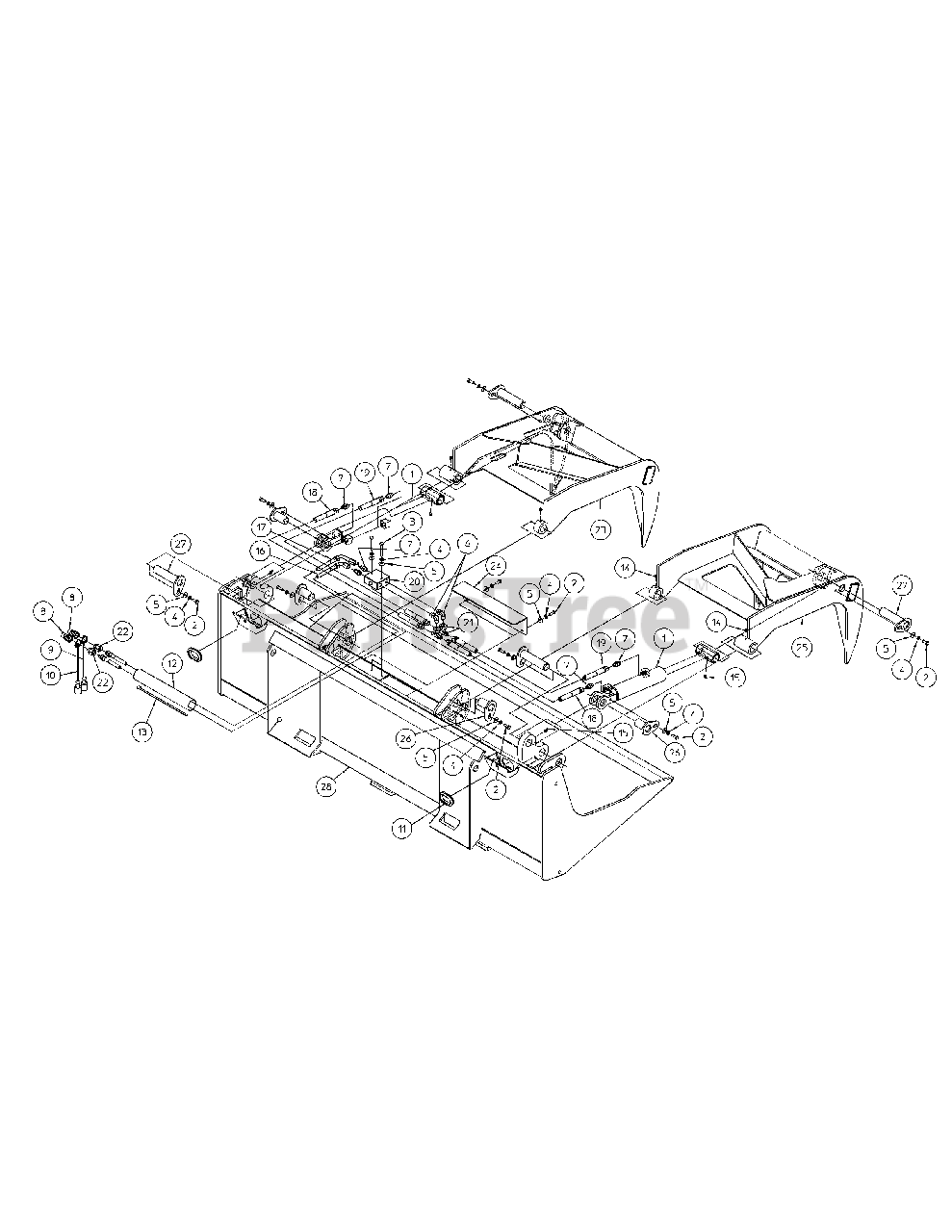

Grapple Bucket Parts Diagram

  • Title

1

Cub Cadet AQ-000206

Hydraulic Cylinder Assembly

$

$

Not available

2

Cub Cadet AQ-006791

Bolt, Hex NC 5/16" x 7/8" Long

$

$

Not available

3

Cub Cadet AQ-006811

Bolt, Hex SAE 2 NC 5/16" x 2-1/4"

$

$

Not available

4

Cub Cadet AQ-008071

Lock Washer, MW 5/16"

$

$

Not available

5

Cub Cadet AQ-008151

Flat Washer, 5/16"

$

$

Not available

6

Cub Cadet AQ-011174

Straight Thread Elbow 90 Degree

$

$

Not available

7

Cub Cadet AQ-011194

Straight Thread Connector

$

$

Not available

8

Cub Cadet AQ-011275

Coupler Nose

$

$

Not available

9

Cub Cadet AQ-011294

Dust Cap, Red

$

$

Not available

10

Cub Cadet AQ-011295

Dust Cap, Yellow

$

$

Not available

11

Cub Cadet AQ-014089

Grommet

$

$

Not available

12

Cub Cadet AQ-014099

Hose Sleeve

$

$

Not available

13

Cub Cadet AQ-014133

Plastic Tie

$

$

Not available

14

Cub Cadet AQ-014505

Grease Fitting, 1/4

$

$

Not available

15

Cub Cadet AQ-014521

Grease Fitting, 45 degree

$

$

Not available

16

Cub Cadet AQ-017140

Hydraulic Hose, 1/4" x 78"

$

$

Not available

17

Cub Cadet AQ-017142

Hydraulic Hose, 1/4" x 78"

$

$

Not available

18

Cub Cadet AQ-017284

Hydraulic Hose, 3/8" ID x 40"

$

$

Not available

19

Cub Cadet AQ-017308

Hydraulic Hose, 3/8" ID x 49"

$

$

Not available

20

Cub Cadet AQ-023138

Check Valve

$

$

Not available

21

Cub Cadet AQ-024014

Swivel Nut Branch Tee

$

$

Not available

22

Cub Cadet AQ-024123

Fitting, Hydraulic Adapter

$

$

Not available

23

Cub Cadet AQ-615210

LH Fork Weldment

$

$

Not available

24

Cub Cadet AQ-615213

Valve Cover

$

$

Not available

25

Cub Cadet AQ-615215

RH Fork Weldment

$

$

Not available

26

Cub Cadet AQ-615220

Short Pivot Pin Weldment

$

$

Not available

27

Cub Cadet AQ-615225

Long Pivot Pin Weldment

$

$

Not available

28

Cub Cadet AQ-615610

Grapple Bucket Weldment with Decal

$

$

Not available
