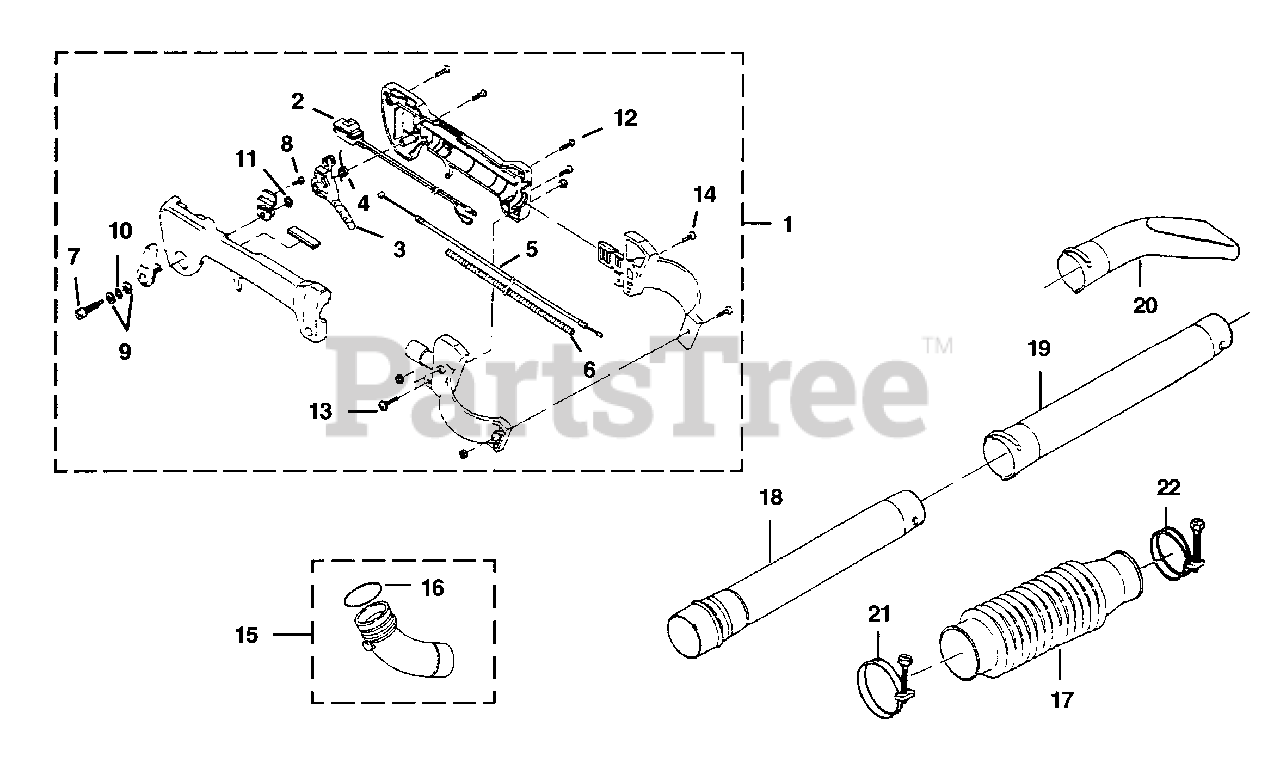

GB 50 (UT-26115) - Green Machine Blower Tubes - Control Handle Parts Diagram

Blower

Tubes - Control Handle Parts Diagram

  • Title
1

Homelite UP00538

CONTROL LEVER ASSEMBLY

$

$

Not available

2

Homelite PS00788

SWITCH COMPLETE

$

$

Not available

3

Homelite PS00789

TRIGGER-Throttle

$

$

Not available

4

$

$

Not available

5

Homelite PS00791

CABLE-Throttle

$

$

Not available

6

Homelite PS00792

SPIRAL CABLE TUBE

$

$

Not available

7

Homelite PS00793

SCREW-Socket Hd (M6 x 30)

$

$

Not available

8

Homelite PS00794

SCREW-Self Tapping (M4 x 8)

$

$

Not available

9

$2.49

$

Usually ships in 3-7 days

0

10

Homelite PS00796

WASHER-Wave

$

$

Not available

11

Homelite PS00780

NUT (M6)

$

$

Not available

12

Homelite PS00798

SCREW-Self Tapping (M4 x 16)

$

$

Not available

13

Homelite PS00726

SCREW ASSEMBLY (M5 x 25 W SW)

$

$

Not available

14

Homelite PS00722

SCREW-Pan Hd (MS x 20)

$

$

Not available

15

Homelite UP00526

ELBOW COMPLETE

$

$

Not available

16

$

$

Not available

17

Homelite PS00930

TUBE-Flexible

$

$

Not available

18

Homelite PS00931

TUBE-Upper

$

$

Not available

19

Homelite PS00932

TUBE-Lower

$

$

Not available

20

$

$

Not available

21

Homelite PS00927

CLAMP-Hose

$

$

Not available

22

Homelite PS00928

CLAMP-Hose

$

$

Not available
