GB 50 (UT-26115) - Green Machine Blower Ignition - Rotor Parts Diagram

Blower

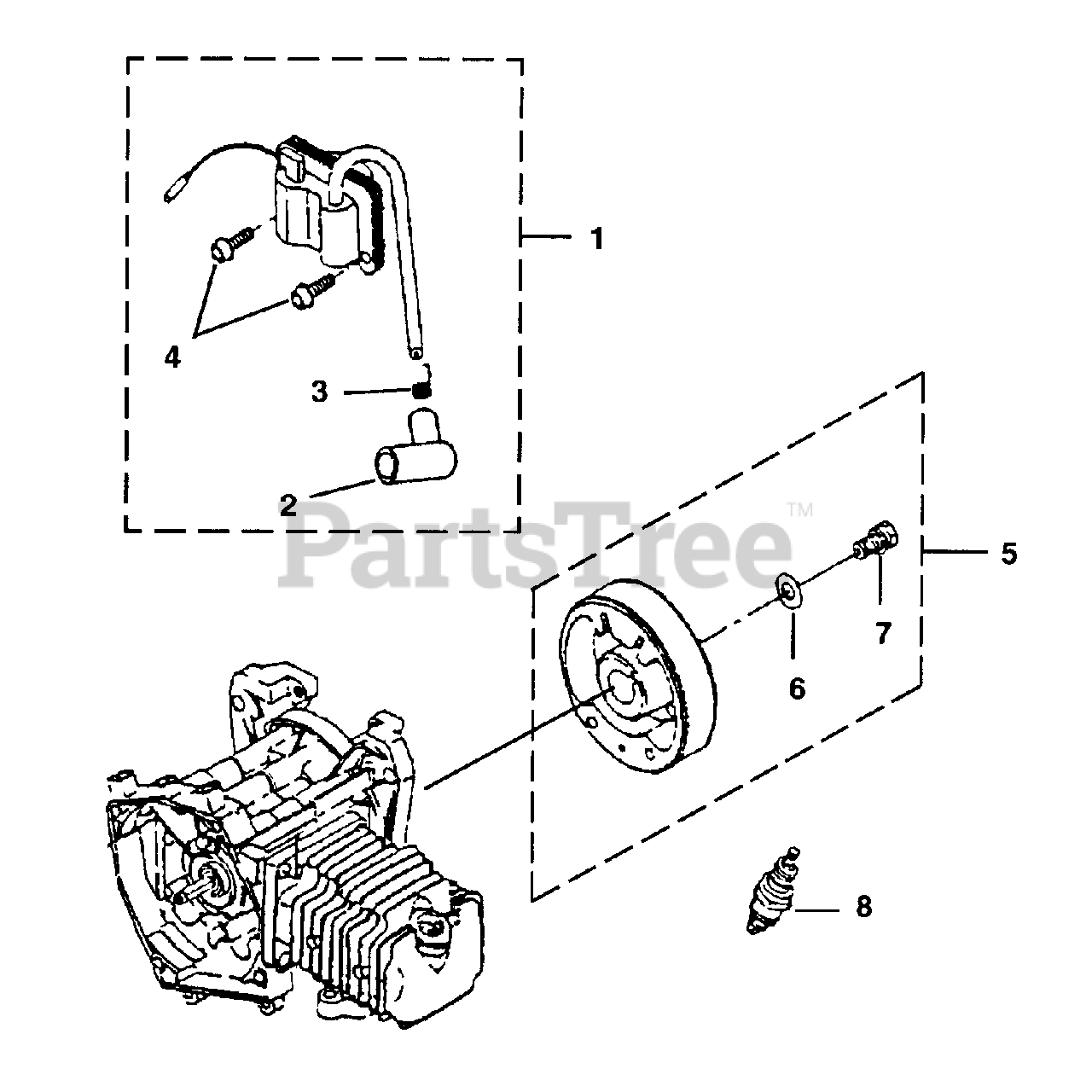

Ignition - Rotor Parts Diagram

  • Title

1

Homelite UP00531

IGNITION KIT

$

$

Not available

2

Homelite PS00689

CAP-Plug

$

$

Not available

3

Homelite PS00499

SPRING-Plug Cap

$

$

Not available

4

Homelite PS00764

SCREW-Socket Hd (M5 x 22 W)

Note: Torque Specs 35 - 45 In/Lbs, 4.0 - 5.1 Nm

$

$

Not available

5

Homelite UP00533

ROTOR ASSEMBLY

$

$

Not available

6

Homelite PS00767

WASHER (M8)

$

$

Not available

7

Homelite PS00769

BOLT ASSEMBLY (MS x 16 SW)

Note: Torque Specs 53 - 69 In/Lbs, 6.0 - 7.8 Nm

$

$

Not available

8

Homelite PS03150

SPARK PLUG

Note: Torque Specs 120 - 180 In/Lbs, 13.6 - 20.3 Nm

$

$

Currently unavailable
