GB 50 (UT-26115) - Green Machine Blower Exhaust System Parts Diagram

Blower

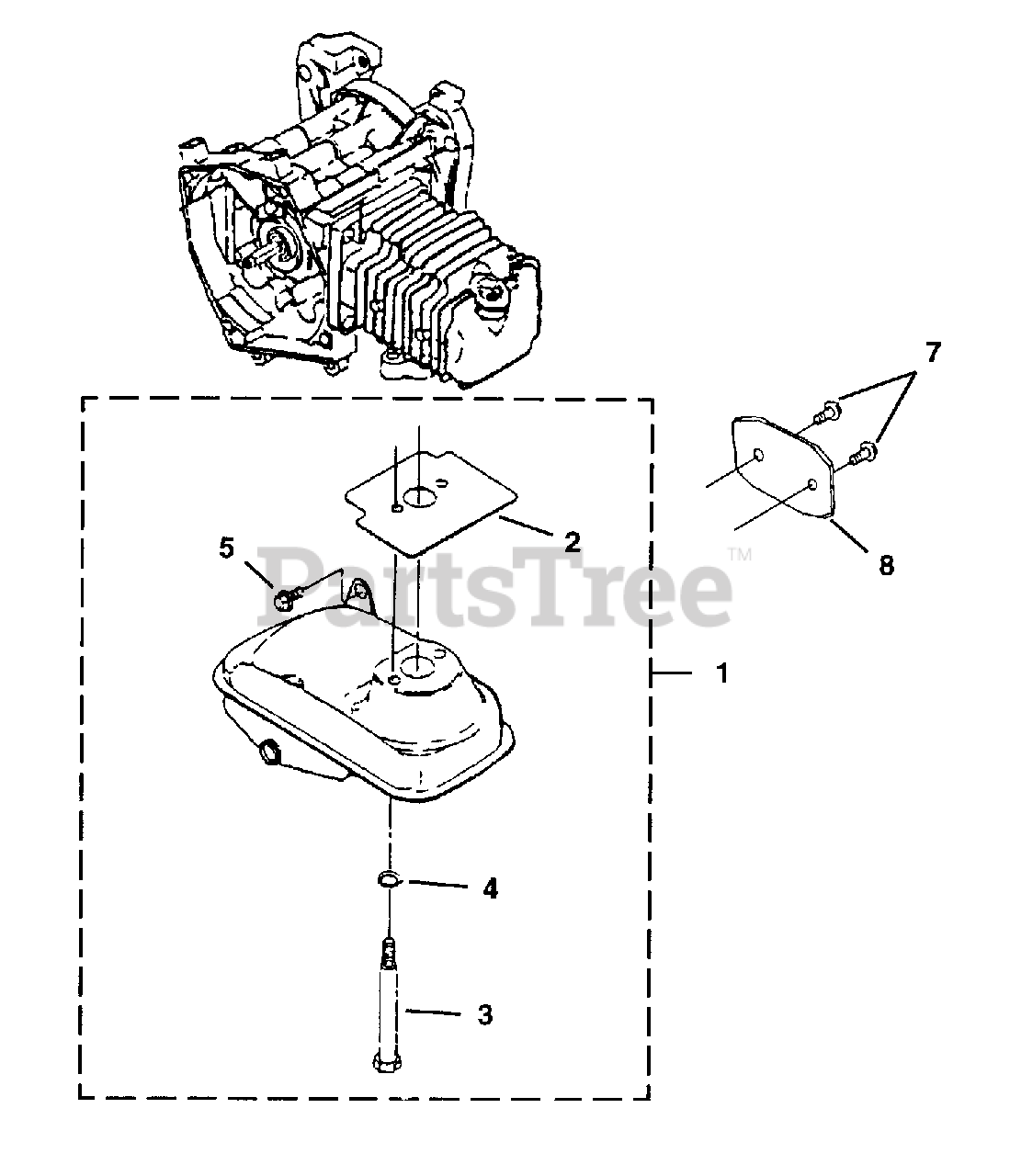

Exhaust System Parts Diagram

  • Title

1

Homelite UP00534

MUFFLER ASSEMBLY

$

$

Not available

2

Homelite PS00746

GASKET-Muffler

$

$

Not available

3

Homelite PS00771

BOLT-Muffler (M6 x 13)

Note: Torque Specs 88 - 104 In/Lbs, 9.9 - 11.8 Nm

$

$

Not available

4

Homelite PS00772

WASHER (M6)

$

$

Not available

5

Homelite PS00773

BOLT ASSEMBLY (M6 x 16 W SW)

Note: Torque Specs 53 - 69 In/Lbs, 6.0 - 7.8 Nm

$

$

Not available

6

Homelite PS03399

PROTECTOR

$

$

Not available

7

Homelite PS03400

SCREW

$

$

Currently unavailable

8

UNKNOWN

$

$

Not available
