GB 50 (UT-26115) - Green Machine Blower Engine Internals Parts Diagram

Blower

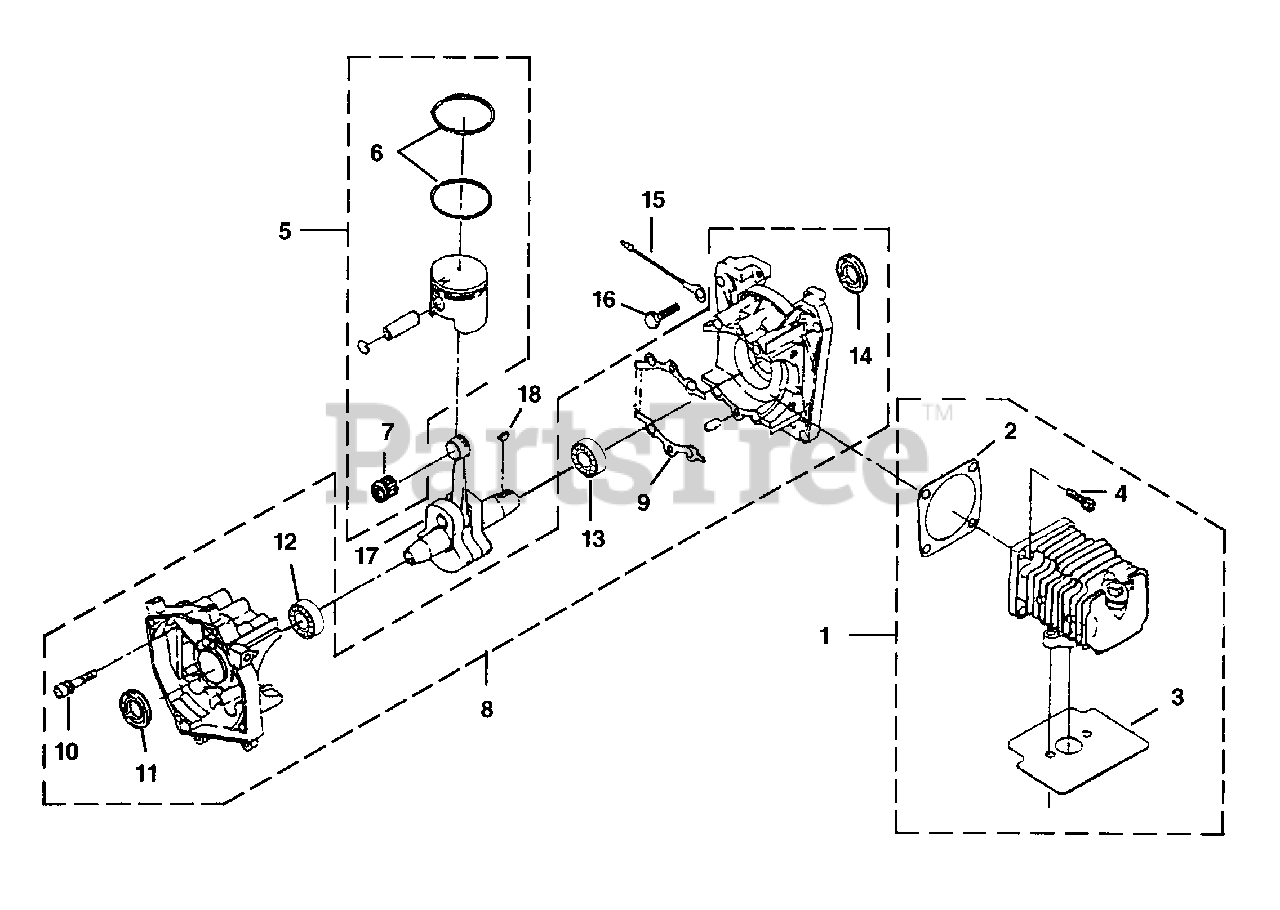

Engine Internals Parts Diagram

  • Title

1

Homelite UP00528

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS00745

GASKET-Cylinder

$

$

Not available

3

Homelite PS00746

GASKET-Muffler

$

$

Not available

4

Homelite PS00848

SCREW-Socket Hd (M6 x 18)

Note: Torque Specs 95 - 111 In/Lbs, 10.7 - 12.5 Nm

$

$

Currently unavailable

5

Homelite UP00529

PISTON ASSEMBLY

$

$

Not available

6

Homelite PS00748

RING-Piston

$

$

Not available

2

Homelite PS00745

GASKET-Cylinder

$

$

Not available

7

Homelite PS00750

BEARING-Wrist Pin

$

$

Not available

8

Homelite UP00530

CRANKCASE ASSEMBLY

$

$

Not available

9

Homelite PS00751

GASKET-Crankcase

$

$

Not available

10

Homelite PS00752

SCREW-Socket Hd (M5 x 30 SW)

Note: Torque Specs 53 - 69 In/Lbs, 6.0 - 7.8 Nm

$

$

Not available

11

Homelite PS03153

OIL SEAL

$

$

Not available

12

Homelite PS03154

BALL BEARING

$

$

Not available

13

Homelite PS03155

BALL BEARING

$

$

Not available

14

Homelite PS03156

OIL SEAL

$

$

Not available

15

Homelite PS00753

WIRE-Ground

$

$

Not available

16

Homelite PS00754

BOLT ASSEMBLY (M6 x 25 SW)

Note: Torque Specs 95 - 111 In/Lbs, 10.7 - 12.5 Nm

$

$

Not available

17

Homelite PS00755

CRANKSHAFT COMPLETE

$

$

Not available

18

Homelite PS00756

WOODRUFF KEY

$

$

Not available
