GB 50 (UT-26113) - Green Machine Blower Air Filter, Carburetor, Fuel Tank Parts Diagram

Blower

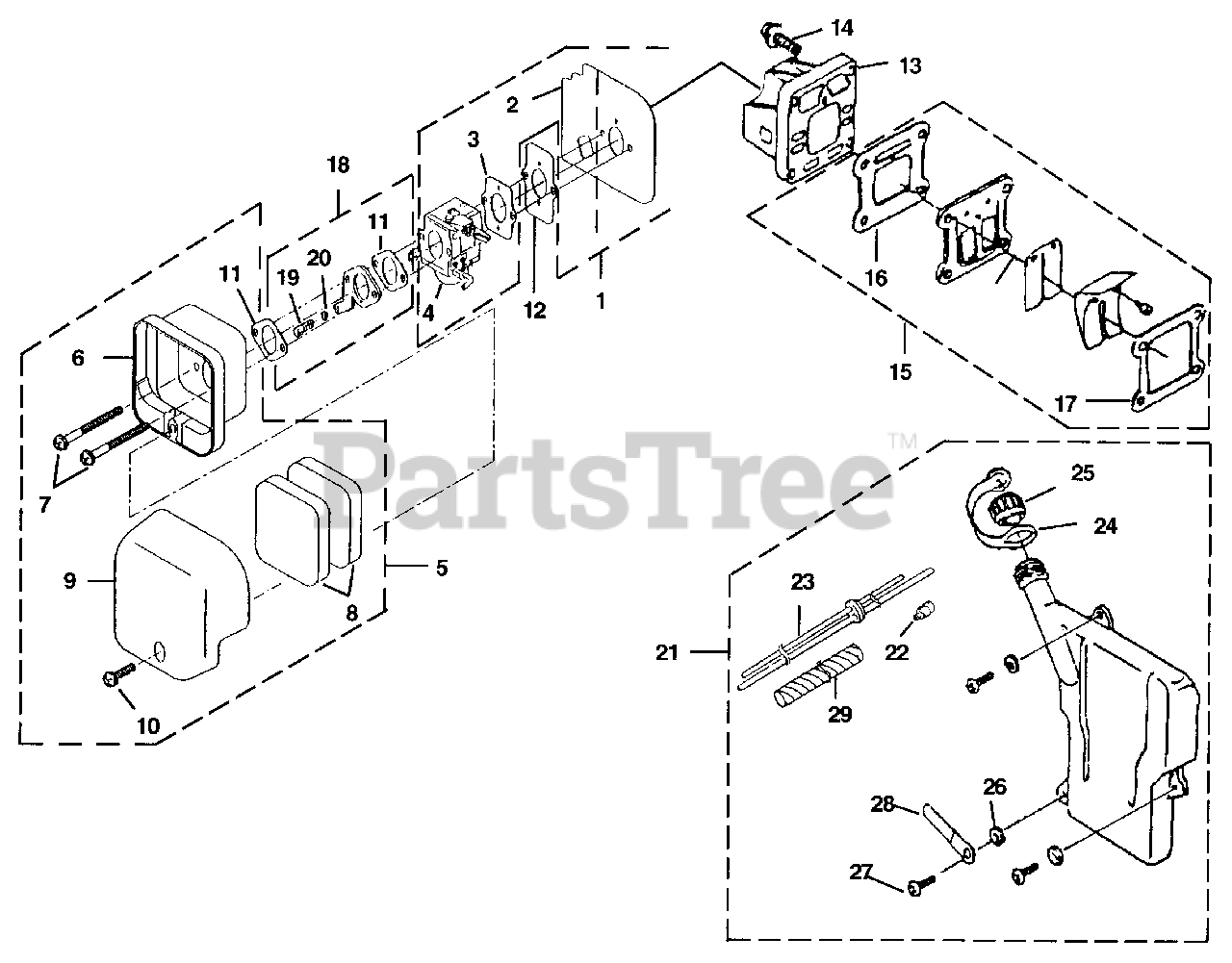

Air Filter, Carburetor, Fuel Tank Parts Diagram

  • Title
1

Homelite UP00535

CARBURETOR ASSEMBLY

$

$

Not available

2

Homelite PS00774

GASKET-Carburetor

$

$

Not available

3

Homelite PS00776

GASKET-Carburetor

$

$

Not available

4

Homelite PS01441

PRIMER BULB
(Superseded to UP04802)

$8.49

$

In Stock, only 4 left!

0

5

Homelite UP00537

AIR FILTER ASSEMBLY

$

$

Not available

6

Homelite PS00781

BODY-Air Filter

Note: Torque Specs: 19-29 In/Lbs., 2.1-3.3 Nm

$

$

Not available

7

Homelite PS00782

SCREW (M5 x 62)

$

$

Not available

8

Homelite UP02948

FILTER-Air
(Superseded to PS00783)

$

$

Not available

9

Homelite PS00784

COVER-Air Filter

Note: Torque Specs: 19-29 In/Lbs., 2.1-3.3 Nm

$

$

Not available

10

Homelite PS00785

SCREW ASSEMBLY

$

$

Not available

11

Homelite PS00777

GASKET-Air Filter

$

$

Not available

12

Homelite PS00787

PLATE-Carburetor Mounting

$

$

Not available

13

Homelite PS00757

HEAT DAM

Note: Torque Specs: 35-45 In/Lbs., 4.0-5.1 Nm

$

$

Not available

14

Homelite PS00758

SCREW-Socket Hd (M5 x 20)

$

$

Not available

15

Homelite UP00532

REED VALVE ASSEMBLY

$

$

Not available

16

Homelite PS00765

GASKET-Heat Dam

$

$

Not available

17

Homelite PS00766

GASKET-Reed Valve

$

$

Not available

18

Homelite UP00536

BRACKET ASSEMBLY

$

$

Not available

11

Homelite PS00777

GASKET-Air Filter

$

$

Not available

19

Homelite PS00611

SCREW-Cable Adjust

$

$

Not available

20

Homelite PS00780

NUT (M6)

$

$

Not available

21

Homelite UP00520

FUEL TANK ASSEMBLY

$

$

Not available

22

Homelite PS00520

FILTER-Fuel

$

$

Currently unavailable

23

Homelite PS00718

TUBE-Fuel

$

$

Not available

24

Homelite PS00522

RETAINER-Cap
(Superseded to UP02946)

$

$

Not available

25

Homelite UP02946

CAP-Fuel

$

$

Not available

26

Homelite PS00657

WASHERS(M5)

$2.49

$

Usually ships in 3-7 days

0

27

Homelite PS00722

SCREWS-Pan Hd (M5 x 20)

$

$

Not available

28

Homelite PS00723

RETAINER-Fuel Line

$

$

Not available

29

Homelite PS00724

SPIRAL RETAINER-Fuel Line

$

$

Not available
