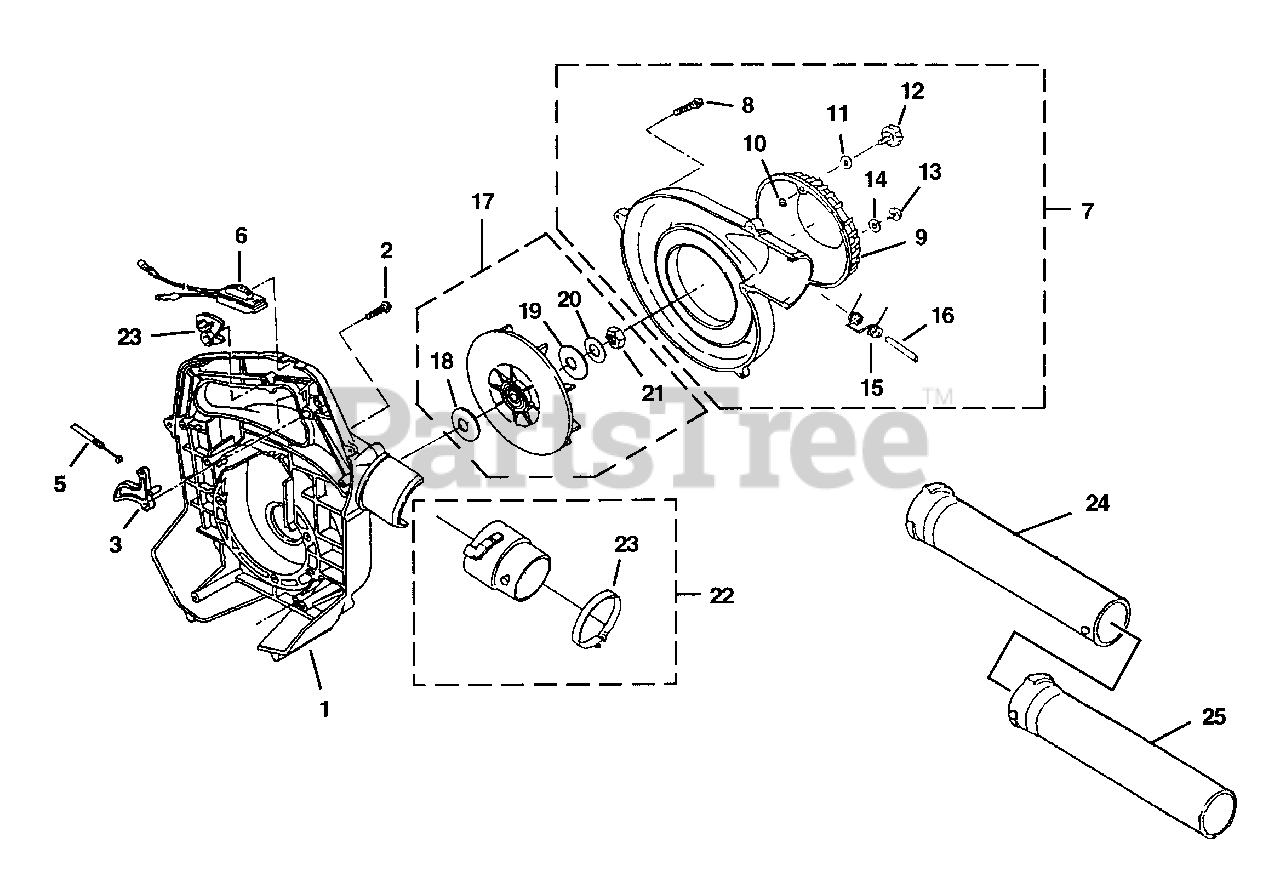

GB 25 (UT-26114) - Green Machine Blower Volute - Fan - Tubes Parts Diagram

Blower

Volute - Fan - Tubes Parts Diagram

  • Title

1

Homelite PS00645

VOLUTE (Inner)

$

$

Not available

2

Homelite PS00646

SCREW ASSEMBLY (M5 x 35 W SW)

Note: (Torque Specs 35 - 45 In/Lbs, 4.0 - 5.1 Nm)

$2.49

$

Usually ships in 3-7 days

0

3

Homelite PS00647

TRIGGER-Throttle

$

$

Not available

4

Homelite PS00648

LOCK- Throttle

$

$

Not available

5

Homelite PS00649

CABLE-Throttle

$

$

Not available

6

Homelite PS00651

SWITCH

$

$

Currently unavailable

7

Homelite UP00503

VOLUTE COMPLETE (Outer)

$

$

Not available

8

Homelite PS00641

SCREW-Tapping (M5 x 20)

Note: (Torque Specs 17 - 22 In/Lbs, 1.9 - 2.5 Nm)

$2.49

$

Usually ships in 3-7 days

0

9

Homelite PS00652

DOOR

$

$

Not available

10

Homelite PS00653

SNAP RING-Outer

$

$

Not available

11

Homelite PS00654

WASHER

$

$

Not available

12

Homelite PS00655

KNOB

$

$

Not available

13

Homelite PS00656

SCREW-Tapping (M5 x 14)

Note: (Torque Specs 17 - 22 In/Lbs, 1.9 - 2.5 Nm)

$

$

Not available

14

Homelite PS00657

WASHER (M5)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite PS00658

SPRING

$

$

Currently unavailable

16

Homelite PS00660

SHAFT-Hinge

$9.49

$

Usually ships in 3-7 days

0

17

Homelite UP00505

FAN ASSEMBLY

$

$

Not available

18

Homelite PS00661

WASHER

$

$

Not available

19

Homelite PS00662

WASHER (M8)

$

$

Not available

20

Homelite PS00663

WASHER (M8)

$

$

Not available

21

Homelite PS00665

NUT (M8 x 6)

Note: (Torque Specs 78 - 94 In/Lbs, 8.8 - 10.6 Nm)

$

$

Not available

22

Homelite UP00506

TUBE ADAPTER & CLAMP

$

$

Not available

23

Homelite PS00668

CLAMP

$

$

Not available

24

Homelite PS00935

TUBE-Rear

$

$

Currently unavailable

25

Homelite PS00936

TUBE-Front

$

$

Currently unavailable
