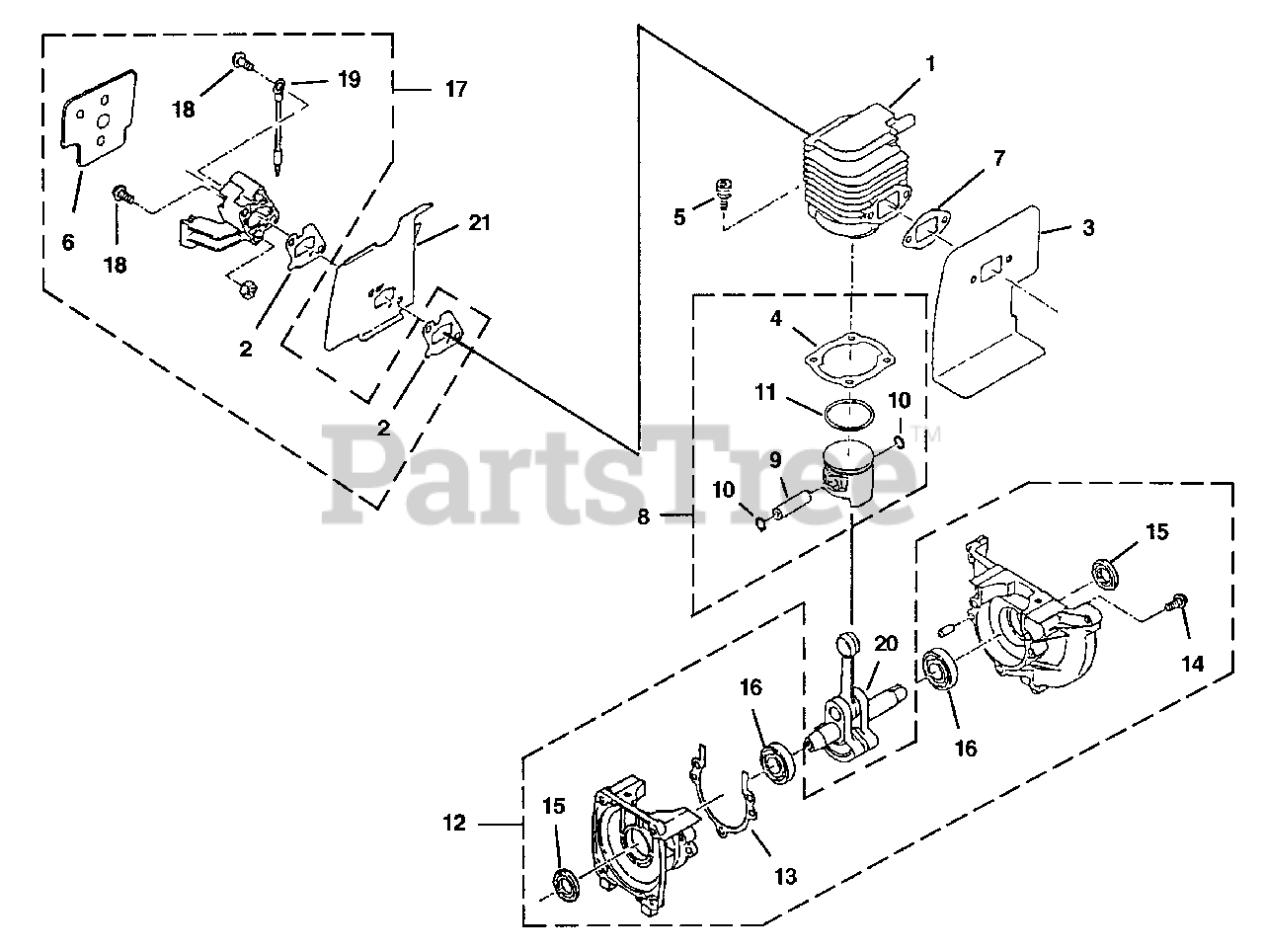

GB 25 (UT-26114) - Green Machine Blower Engine Internals Parts Diagram

Blower

Engine Internals Parts Diagram

  • Title

1

Homelite UP00507

CYLINDER ASSEMBLY

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

3

Homelite PS00695

INSULATOR-Muffler

$5.49

$

Usually ships in 3-7 days

0

4

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

5

Homelite PS00840

SCREW-Socket HD (MS x 20 W SW)

Note: (Torque Specs 53 - 69 In/Lbs, 6.0 - 7.8 Nm)

$2.49

$

Usually ships in 3-7 days

0

6

Homelite PS00673

INSULATOR-Gasket

$4.49

$

Usually ships in 3-7 days

0

7

Homelite PS00674

GASKET-Muffler

$

$

Not available

8

Homelite UP00508

PISTON ASSEMBLY

$

$

Not available

9

Homelite PS00675

PIN-Piston

$

$

Not available

10

Homelite PS00843

RING-Retaining

$

$

Not available

11

Homelite PS00677

RING-Piston

$

$

Not available

4

Homelite PS00574

GASKET-Cylinder

$

$

Currently unavailable

12

Homelite UP00472

CRANKCASE ASSEMBLY

$

$

Currently unavailable

13

Homelite PS00823

GASKET-Crankcase

$

$

Not available

14

Homelite PS00824

SCREW (M5 x 25)

Note: (Torque Specs 35 - 45 In/Lbs, 4.0 - 5.1 Nm)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite PS03095

OIL SEAL

$

$

Currently unavailable

16

Homelite PS03376

BALL BEARING

$

$

Currently unavailable

17

Homelite UP00510

HEAT DAM ASSEMBLY

$

$

Not available

2

Homelite PS00581

GASKET-Heat Dam

$

$

Not available

6

Homelite PS00673

INSULATOR-Carburetor

$4.49

$

Usually ships in 3-7 days

0

18

Homelite PS00852

SCREW-Socket Hd (M5 x 25)

Note: (Torque Specs 35 - 45 In/Lbs, 4.0 - 5.1 Nm. Loctite Required Red 262)

$2.49

$

Usually ships in 3-7 days

0

19

Homelite PS00608

WIRE-Ground

$

$

Currently unavailable

20

Homelite PS00680

CRANKSHAFT COMPLETE

$

$

Not available

21

Homelite PS00685

INSULATOR - Carburetor

$15.99

$

Usually ships in 3-7 days

0
