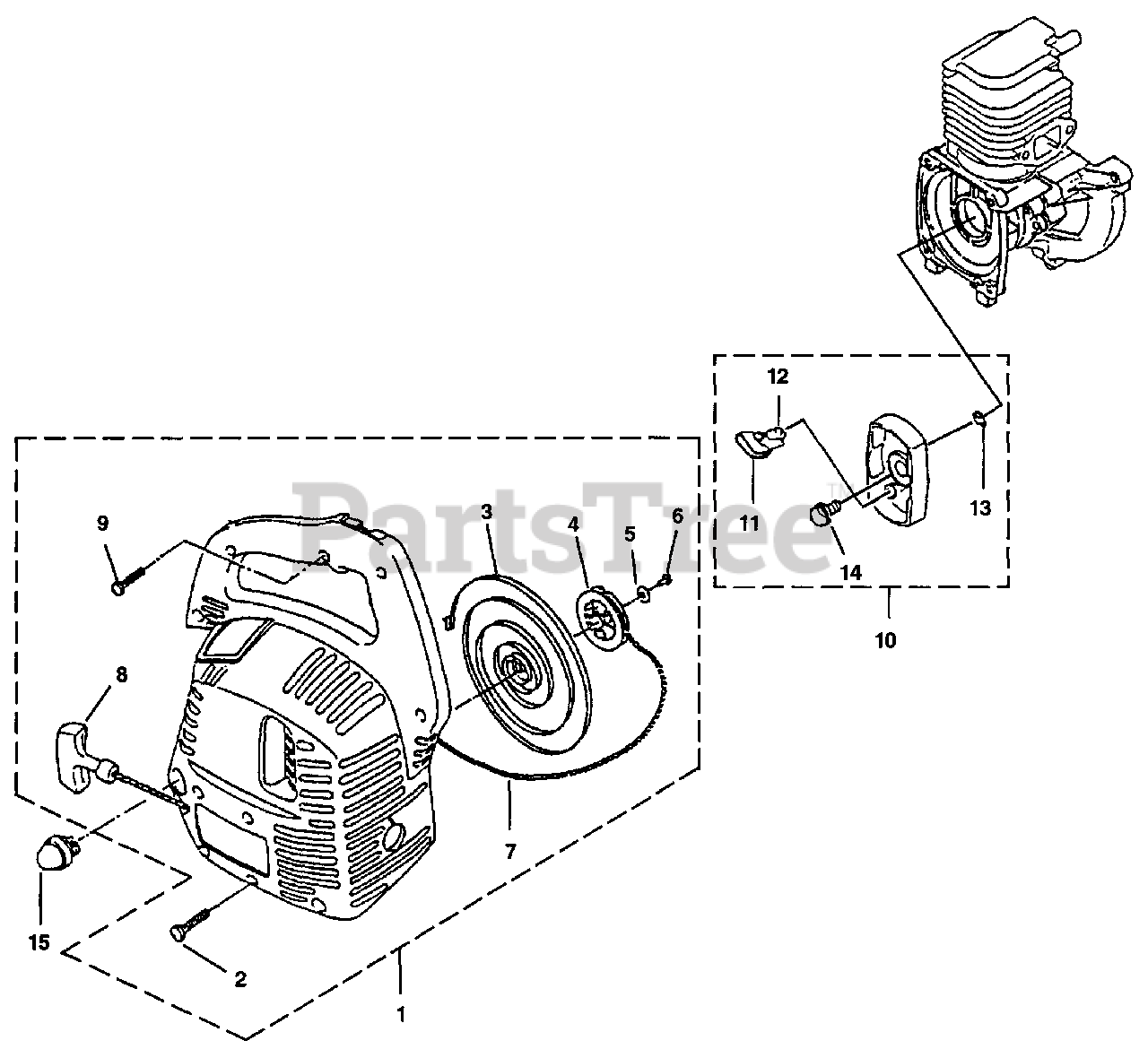

GB 25 (UT-26112) - Green Machine Blower Starter & Primer Bulb Parts Diagram

Blower

Starter & Primer Bulb Parts Diagram

  • Title

1

Homelite UP00501

STARTER COMPLETE

$

$

Not available

2

Homelite PS00820

SCREW-Socket Hd (M5 x 18 W SW)

$

$

Not available

3

Homelite PS00628

SPRING

$

$

Not available

4

Homelite PS00629

PULLEY

$

$

Not available

5

Homelite PS00636

WASHER

$2.49

$

Usually ships in 3-7 days

0

6

Homelite PS00637

SCREW (M6 x 14)

Note: (Torque Specs: 57-83 In/Lbs, 6.4-9.4 Nm)

$

$

Not available

7

Homelite PS00638

ROPE-Starter

$15.99

$

Usually ships in 3-7 days

0

8

Homelite PS00639

GRIP

$19.99

$

Usually ships in 3-7 days

0

9

Homelite PS00641

SCREW-Tapping (M5 x 20)

$2.49

$

Usually ships in 3-7 days

0

10

Homelite UP00469

STARTER CUP ASSEMBLY

$

$

Not available

11

Homelite PS00712

RATCHET

$

$

Not available

12

Homelite PS00478

SPRING-Return

$

$

Not available

13

Homelite PS00479

E-CLIP

$8.49

$

Usually ships in 3-7 days

0

14

Homelite PS00569

BOLT ASSEMBLY (M6 x 14)

Note: (Torque Specs: 57-83 In/Lbs, 6.4-9.4 Nm)

$2.49

$

Usually ships in 3-7 days

0

15

Homelite PS00650

PRIMER BULB
(Superseded to UP04033)

$

$

Not available
