GB 151 C - Paramount Blower BLOWER ASSEMBLY Parts Diagram

Blower

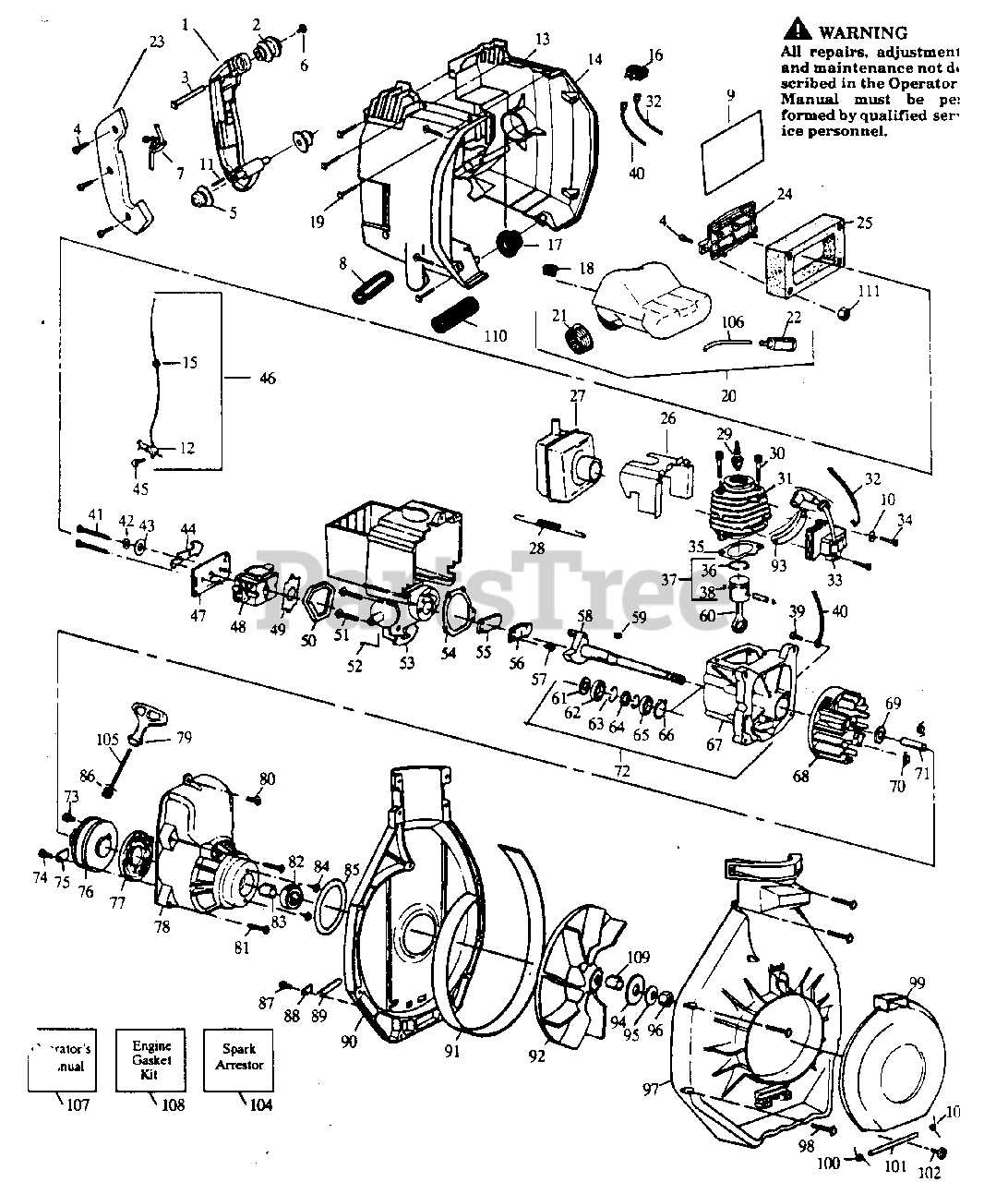

BLOWER ASSEMBLY Parts Diagram

  • Title
1

$6.49

$

Usually ships in 3-10 days

0

2

Poulan 530026994

Front Isolator

$

$

Not available

3

$1.99

$

Usually ships in 3-10 days

0

4

Poulan 530015956

Screw
(Superseded to 530015635)

$5.99

$

In Stock, only 4 left!

0

5

Poulan 530029130

Rear Isolator

$3.99

$

In Stock, only 1 left!

0

$0.99

$

Usually ships in 3-10 days

0

7

$12.99

$

Usually ships in 3-10 days

0

8

Poulan 534100940

Assist Handle Tube
(Superseded to 530037595)

$

$

Not available

9

Poulan 530029991

Instruction Decal

$

$

Not available

10

$

$

Not available

$0.99

$

Usually ships in 3-10 days

0

12

Poulan 530029146

Cable Anchor
(Superseded to 530037492)

$

$

Not available

13

Poulan 534100570

Shroud-Left

$24.99

$

Usually ships in 3-10 days

0

14

Poulan 534100560

Shroud-Right

$34.99

$

Usually ships in 3-10 days

0

15

$0.99

$

Usually ships in 3-10 days

0

16

$

$

Not available

17

Poulan 530029129

Isolator

$3.99

$

Usually ships in 3-10 days

0

18

Poulan 530029295

Isolator

$0.99

$

Usually ships in 3-10 days

0

19

$6.49

$

In Stock, Qty 16

0

20

Poulan 530014162

Fuel Tank Ass'y. (Inc. 21,22,106)

$

$

Not available

21

Poulan 530010729

Fuel Cap (w/ retainer)
(Superseded to 530014347)

$9.49

$

In Stock, Qty 15

0

22

Poulan 530010897

Fuel Pick-up Ass'y.
(Superseded to 530095646)

$6.99

$

In Stock, Qty 20+

0

23

Poulan 534100550

Handle Cover

$4.99

$

Usually ships in 3-10 days

0

24

$2.49

$

Usually ships in 3-10 days

0

25

Poulan 530029112

Air Filter

$

$

Not available

26

Poulan 530029404

Air Baffle

$2.99

$

Usually ships in 3-10 days

0

27

$12.99

$

Usually ships in 3-10 days

0

28

$1.99

$

Usually ships in 3-10 days

0

29

Poulan 530030073

Spark Plug (CJ-8Y)

$

$

Not available

30

$2.49

$

Usually ships in 3-10 days

0

31

Poulan 530012244

Cylinder
(Superseded to 530069627)

$

$

Not available

32

Poulan 530029145

Lead Wire

$

$

Not available

33

Poulan 530039137

Ignition Module

$54.99

$

In Stock, only 1 left!

0

34

$0.99

$

Usually ships in 3-10 days

0

35

Poulan 530019178

Gasket
(Superseded to 530019267)

$4.99

$

In Stock, only 4 left!

0

36

Poulan 530026413

Piston Ring

$

$

Not available

37

Poulan 530069274

Piston Kit

Note: (Incl. #36,38, Pin)

$

$

Not available

38

Poulan 530015162

Retainer

$6.49

$

In Stock, only 1 left!

0

39

$3.99

$

Usually ships in 3-10 days

0

40

Poulan 530029144

Ground Wire

$5.99

$

Usually ships in 3-10 days

0

41

$6.49

$

In Stock, Qty 6

0

42

Poulan 530015254

Wave Washer

$3.99

$

In Stock, only 2 left!

0

43

Poulan 530027528

Spacer
(Superseded to 530015852)

$3.49

$

In Stock, only 1 left!

0

44

Poulan 530029114

Choke Shutter

$

$

Not available

45

$6.49

$

In Stock, only 2 left!

0

46

Poulan 530029146

Cable Assembly (Inc.45)
(Superseded to 530037492)

$

$

Not available

47

$1.99

$

Usually ships in 3-10 days

0

48

Poulan 530035263

Carburetor
(Superseded to 545081825)

$66.99

$

Usually ships in 3-10 days

0

49

$7.49

$

In Stock, only 2 left!

0

$3.99

$

In Stock, only 2 left!

0

51

$6.49

$

In Stock, only 1 left!

0

52

Poulan 530029113

Ground Wire

$0.99

$

Usually ships in 3-10 days

0

53

Poulan 530029070

Reed Block
(Superseded to 530047696)

$

$

Not available

54

$3.99

$

Usually ships in 3-10 days

0

55

Poulan 530027593

Reed Valve

$6.49

$

In Stock, only 3 left!

0

56

Poulan 530027594

Reed Stop

$5.99

$

Usually ships in 3-10 days

0

57

$3.99

$

Usually ships in 3-10 days

0

58

Poulan 530014033

Crankshaft

$27.99

$

Usually ships in 3-10 days

0

$3.99

$

Usually ships in 3-10 days

0

60

Poulan 530014005

Piston Rod

$

$

Not available

61

$0.99

$

Usually ships in 3-10 days

0

62

Poulan 530032103

Inner Bearing

$

$

Not available

63

Poulan 530015787

Retaining Ring

$3.99

$

Usually ships in 3-10 days

0

64

Poulan 530019158

Crankshaft Seal

$6.49

$

Usually ships in 3-10 days

0

65

Poulan 530032102

Outer Bearing

$

$

Not available

66

Poulan 530015789

Retaining Ring

$4.99

$

Usually ships in 3-10 days

0

67

Poulan 530014016

Crankcase

$

$

Not available

68

Poulan 530039136

Flywheel
(Superseded to 530039189)

$

$

Not available

69

Poulan 530347987

Washer
(Superseded to 530016030)

$3.99

$

Usually ships in 3-10 days

0

70

$6.49

$

In Stock, Qty 5

0

71

$2.99

$

Usually ships in 3-10 days

0

72

Poulan 530014156

Crankcase/Crankshaft Assy.

$

$

Not available

73

Poulan 530015823

Screw
(Superseded to 530016080)

$6.49

$

In Stock, only 1 left!

0

74

$3.99

$

Usually ships in 3-10 days

0

75

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

76

Poulan 530069291

Starter Pulley
(Superseded to 530071387)

Note: (Incl.73)

$

$

Not available

77

Poulan 530029395

Starter Spring
(Superseded to 545008010)

$9.49

$

In Stock, Qty 20+

0

78

Poulan 530029069

Fan Housing
(Superseded to 530069714)

$

$

Not available

79

Poulan 530027569

Starter Handle

$6.49

$

Usually ships in 3-10 days

0

80

$6.49

$

In Stock, only 2 left!

0

81

$3.99

$

Usually ships in 3-10 days

0

82

Poulan 530032108

Bearing
(Superseded to 530054114)

$20.99

$

Usually ships in 3-10 days

0

83

$3.99

$

Usually ships in 3-10 days

0

84

Poulan 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 3 left!

0

85

Poulan 530019167

"O" Ring

$

$

Not available

86

$4.99

$

Usually ships in 3-10 days

0

87

$3.99

$

In Stock, only 2 left!

0

88

Poulan 530027523

Retainer

$7.49

$

In Stock, only 2 left!

0

89

Poulan 530029119

Roll Pin

$0.99

$

Usually ships in 3-10 days

0

90

Poulan 530094710

Blower Housing (Upper)

$8.99

$

Usually ships in 3-10 days

0

$6.49

$

Usually ships in 3-10 days

0

92

Poulan 530014157

Impeller
(Superseded to 530047077)

$

$

Not available

93

$0.99

$

In Stock, only 1 left!

0

94

$1.49

$

Usually ships in 3-10 days

0

95

$4.99

$

Usually ships in 3-10 days

0

$

$

Not available

97

Poulan 530014158

Blower Housing (Lower)
(Superseded to 530047736)

Note: (Incl. 99-103)

$

$

Not available

98

Poulan 530015367

Screw
(Superseded to 530015872)

$6.49

$

In Stock, Qty 16

0

99

Poulan 530094715

Door
(Superseded to 530047736)

$

$

Not available

100

$3.99

$

Usually ships in 3-10 days

0

$1.49

$

In Stock, only 1 left!

0

102

$3.99

$

In Stock, only 2 left!

0

103

$

$

Not available

104

Poulan 530069285

Spark Arrestor Kit

$17.99

$

Usually ships in 3-10 days

0

105

Poulan 530069232

Rope Kit

$7.49

$

In Stock, Qty 20+

0

106

Poulan 530069247

Line Kit

$7.99

$

In Stock, Qty 20+

0

107

Poulan 534068201

Operators Manual

$

$

Not available

108

Poulan 530069294

Gasket Kit

$

$

Not available

109

Poulan 530029118

Hub
(Superseded to 530047077)

$

$

Not available

110

Poulan 534101900

Foam Grip

$

$

Not available

$

$

Not available

Poulan 534061445

Carton (Not a serviceable part)

Note: Not Shown.

$

$

Not available
