G80 V1 (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) RECOIL STARTER Parts Diagram

Engine, Made in Japan

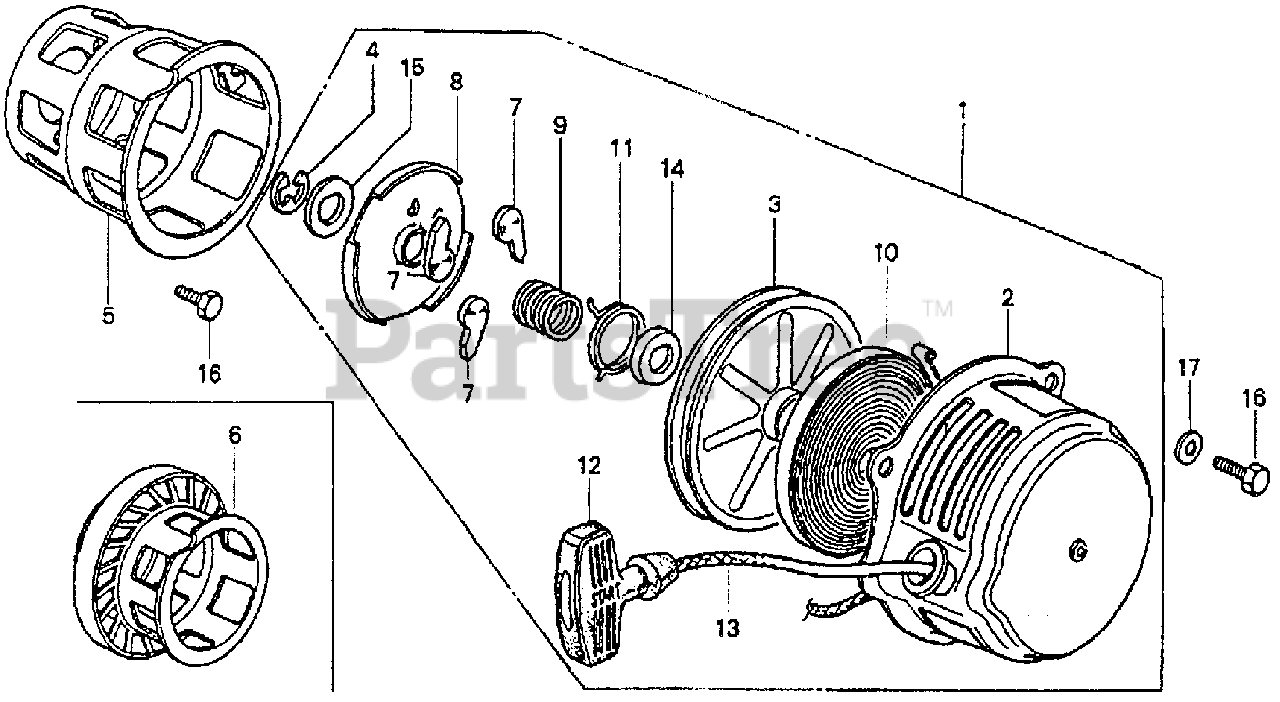

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-823-811H

STARTER ASSY., RECOIL *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-823-812H

CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Currently unavailable

3

Honda 28420-873-003

PULLEY, RECOIL STARTER (NOT AVAILABLE)

$

$

Not available

4

Honda 28423-809-810

E-RING

$

$

Not available

5

Honda 28430-823-020

PULLEY, STARTER

$

$

Not available

7

Honda 28441-822-810

RATCHET, STARTER

$5.99

$

In Stock, only 2 left!

0

8

Honda 28445-822-650

PLATE, FRICTION

$

$

Not available

9

Honda 28446-809-810

SPRING, FRICTION

$2.49

$

Usually ships in 3-6 days

0

10

Honda 28451-809-810

SPRING, STARTER RETURN

$

$

Not available

11

Honda 28455-822-810

SPRING SET

$

$

Not available

12

Honda 28461-950-305

SEE PART DETAILS - PRI; KNOB SET, STARTER

$

$

Currently unavailable

13

Honda 28471-809-810

ROPE, STARTER (#6X64")

$

$

Currently unavailable

14

Honda 90481-809-810

WASHER A

$

$

Not available

15

Honda 90482-810-810

WASHER B

$

$

Not available

16

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

17

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
