G80 V1 (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) CAMSHAFT Parts Diagram

Engine, Made in Japan

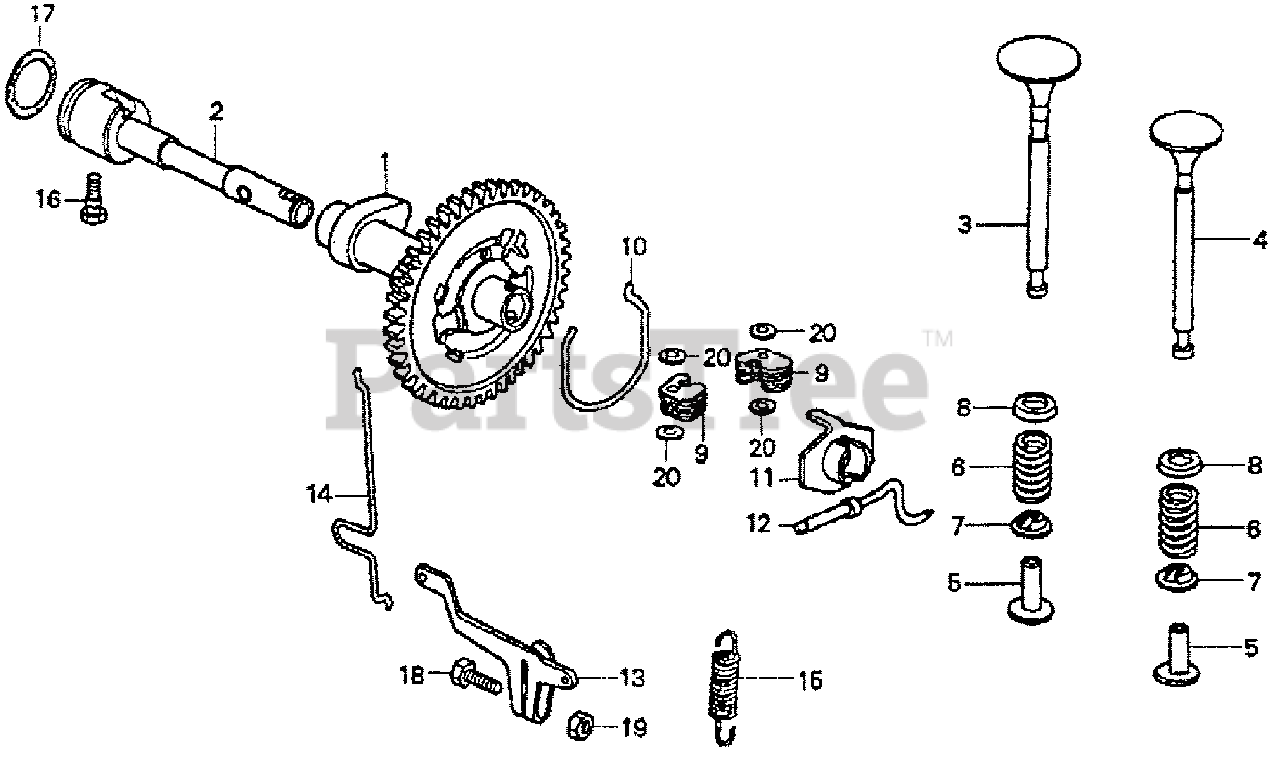

CAMSHAFT Parts Diagram

  • Title

1

Honda 14101-873-000

CAMSHAFT

$

$

Currently unavailable

2

Honda 14210-823-010

CENTER, CAMSHAFT

$

$

Currently unavailable

3

Honda 14711-874-000

VALVE, IN.

$24.99

$

Usually ships in 3-6 days

0

4

Honda 14721-874-000

VALVE, EX. (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 14731-809-010

LIFTER, VALVE

$

$

Currently unavailable

6

Honda 14751-873-000

SPRING, VALVE (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 14771-883-305

RETAINER, VALVE SPRING

$14.99

$

Usually ships in 3-6 days

0

8

Honda 14775-809-000

SEE PART DETAILS - PRI; SEAT, SPRING (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 16511-805-000

WEIGHT, GOVERNOR

$

$

Not available

10

Honda 16515-805-000

CENTER, GOVERNOR WEIGHT

$

$

Currently unavailable

11

Honda 16521-823-000

SLIDER, GOVERNOR

$

$

Not available

12

Honda 16535-823-000

SHAFT, GOVERNOR ARM (NOT AVAILABLE)

$9.49

$

Usually ships in 0 days

0

13

Honda 16541-809-020

ARM, GOVERNOR

Note: Use up to Engine SN 1011232.

$

$

Currently unavailable

13

Honda 16541-809-030

ARM, GOVERNOR (NOT AVAILABLE)

Note: Use from Engine SN 1011233.

$

$

Not available

14

Honda 16545-874-000

ROD, GOVERNOR (NOT AVAILABLE)

$

$

Not available

15

Honda 16551-806-000

SPRING, GOVERNOR

$

$

Not available

16

Honda 90008-809-000

BOLT, CAMSHAFT CENTER STOPPER

$

$

Not available

17

Honda 91318-PA9-003

O-RING (23.5X2.1) (ARAI)

$4.99

$

Usually ships in 3-6 days

0

18

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

19

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

19

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0

20

Honda 94101-03000

WASHER, PLAIN (3MM)

$0.99

$

Usually ships in 3-6 days

0
