G80 RD1 (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) FUEL TANK + FUEL VALVE Parts Diagram

Engine, Made in Japan

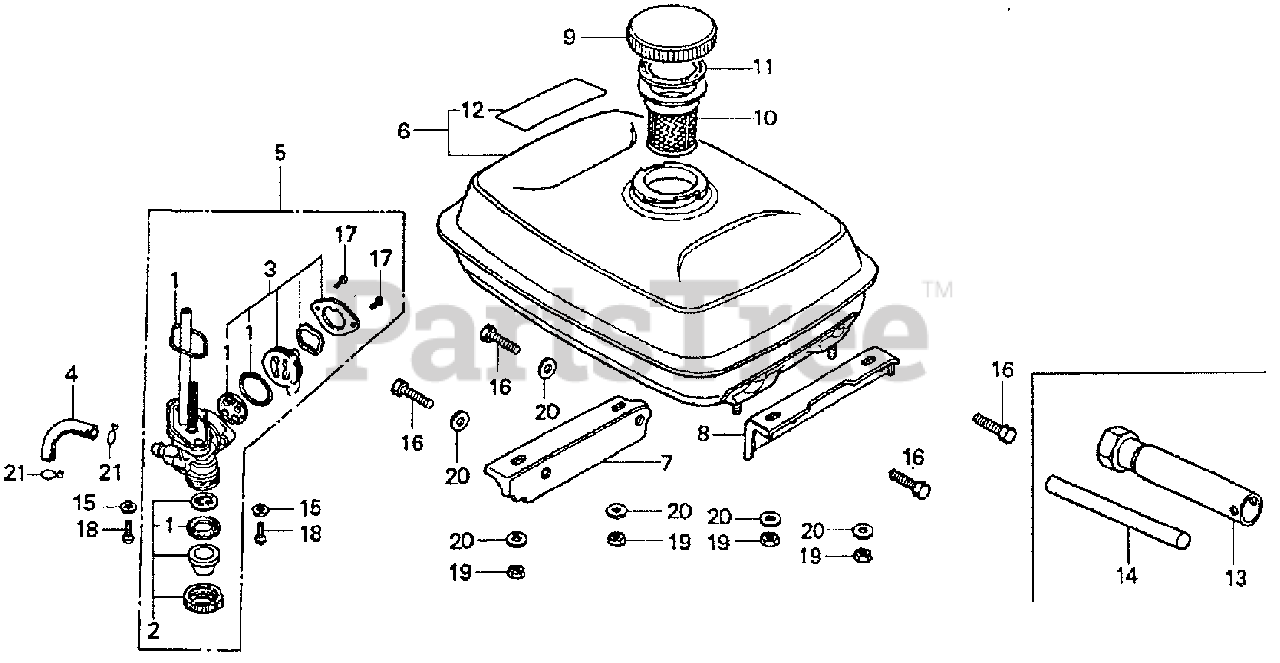

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-865-005

GASKET SET, VALVE

$39.99

$

In Stock, only 1 left!

0

2

Honda 16081-865-015

SEE PART DETAILS - SUP; CUP SET, STRAINER
(Superseded to 16081-865-305)

$34.99

$

In Stock, only 1 left!

0

3

Honda 16082-843-005

LEVER SET, VALVE (NOT AVAILABLE)

$

$

Not available

4

Honda 16851-873-000

TUBE, FUEL (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16950-865-701

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

6

Honda 17500-873-660XC

TANK, FUEL *NH31* (MCKINLEY WHITE) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17505-873-000H

STAY A, FUEL TANK *R8* (BRIGHT RED)

$

$

Not available

8

Honda 17506-873-000H

STAY B, FUEL TANK *R8* (BRIGHT RED)

$

$

Not available

9

Honda 17650-805-750

CAP, FUEL TANK (NOT AVAILABLE)

$

$

Not available

10

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

$

$

Not available

11

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

$

$

Not available

12

Honda 87522-836-670

MARK A, CAUTION

$

$

Not available

13

Honda 89216-809-000

WRENCH, SPARK PLUG (NOT AVAILABLE)

$8.99

$

Usually ships in 3-6 days

0

14

Honda 89219-805-000

HANDLE, BOX WRENCH

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.99

$

In Stock, Qty 7

0

16

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

17

Honda 93500-03008-0A

SCREW, PAN (3X8)

$1.49

$

In Stock, only 1 left!

0

18

Honda 93500-06016-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X16)

$1.49

$

Usually ships in 3-6 days

0

19

Honda 94001-08000-0S

NUT, HEX. (8MM)

$1.99

$

In Stock, Qty 10

0

20

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

$2.99

$

In Stock, only 2 left!

0
