G80 RD1 (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) 1/2 REDUCTION (RD1 TYPE) Parts Diagram

Engine, Made in Japan

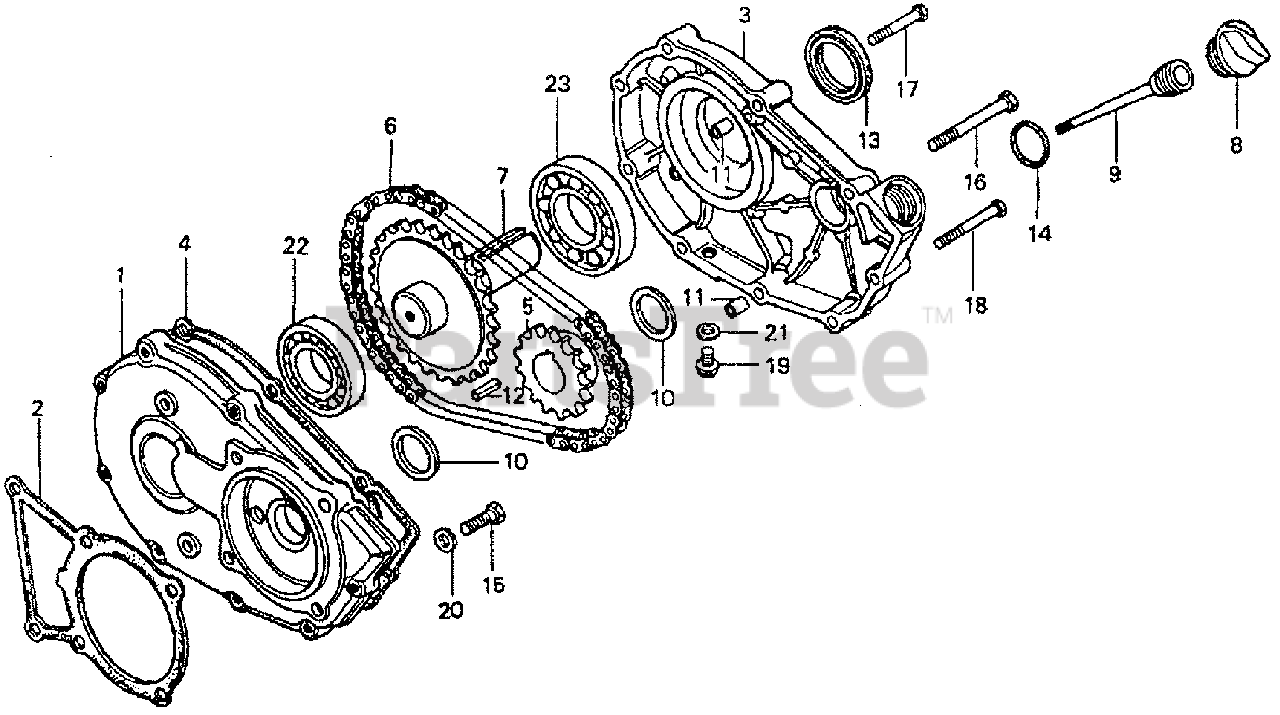

1/2 REDUCTION (RD1 TYPE) Parts Diagram

  • Title

1

Honda 21510-874-900

CASE, REDUCTION

$

$

Not available

2

Honda 21591-809-610

GASKET, REDUCTION CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 21610-874-900

COVER, REDUCTION

$

$

Not available

4

Honda 21691-809-610

GASKET, REDUCTION COVER

$

$

Not available

5

Honda 23121-874-901

SPROCKET, DRIVE

$

$

Not available

6

Honda 23161-874-902

CHAIN, DRIVE (RK428FX38LE)

$

$

Currently unavailable

7

Honda 23711-874-900

SHAFT, P.T.O.

$

$

Not available

8

Honda 25620-805-612

SEE PART DETAILS - PRI; CAP, REDUCTION OIL (GRAY)

$8.99

$

Usually ships in 3-6 days

0

8

Honda 25620-823-000

SEE PART DETAILS - SUP; CAP, REDUCTION OIL

$

$

Not available

9

Honda 25651-809-610

DIPSTICK, OIL

$

$

Not available

10

Honda 90459-357-000

WASHER C, THRUST (25MM)

$5.49

$

Usually ships in 3-6 days

0

11

Honda 90702-881-000

PIN, DOWEL (8X10)

$

$

Not available

12

Honda 90743-874-900

KEY, DRIVE SPROCKET

$

$

Not available

13

Honda 91202-874-901

OIL SEAL (35X50X8)

$

$

Currently unavailable

14

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 7

0

15

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

16

Honda 92101-08065-0A

BOLT, HEX. (8X65)

$2.99

$

Usually ships in 3-6 days

0

17

Honda 92018-06040

BOLT, HEX. (6X40)
(Superseded to 92101-06040-0A)

$1.49

$

Usually ships in 3-6 days

0

18

Honda 92101-06045-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X45)

$1.99

$

Usually ships in 3-6 days

0

19

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

20

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

21

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

22

Honda 96100-62060

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6206)

$

$

Currently unavailable

22

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0

23

Honda 96100-62070-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6207)

$56.99

$

Usually ships in 3-6 days

0

23

Honda 96100-62073-00

SEE PART DETAILS - SUP; BEARING, RADIAL BALL (6207)
(Superseded to 96100-62070-00)

$56.99

$

Usually ships in 3-6 days

0
