G80 Q1 (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) CYLINDER Parts Diagram

Engine, Made in Japan

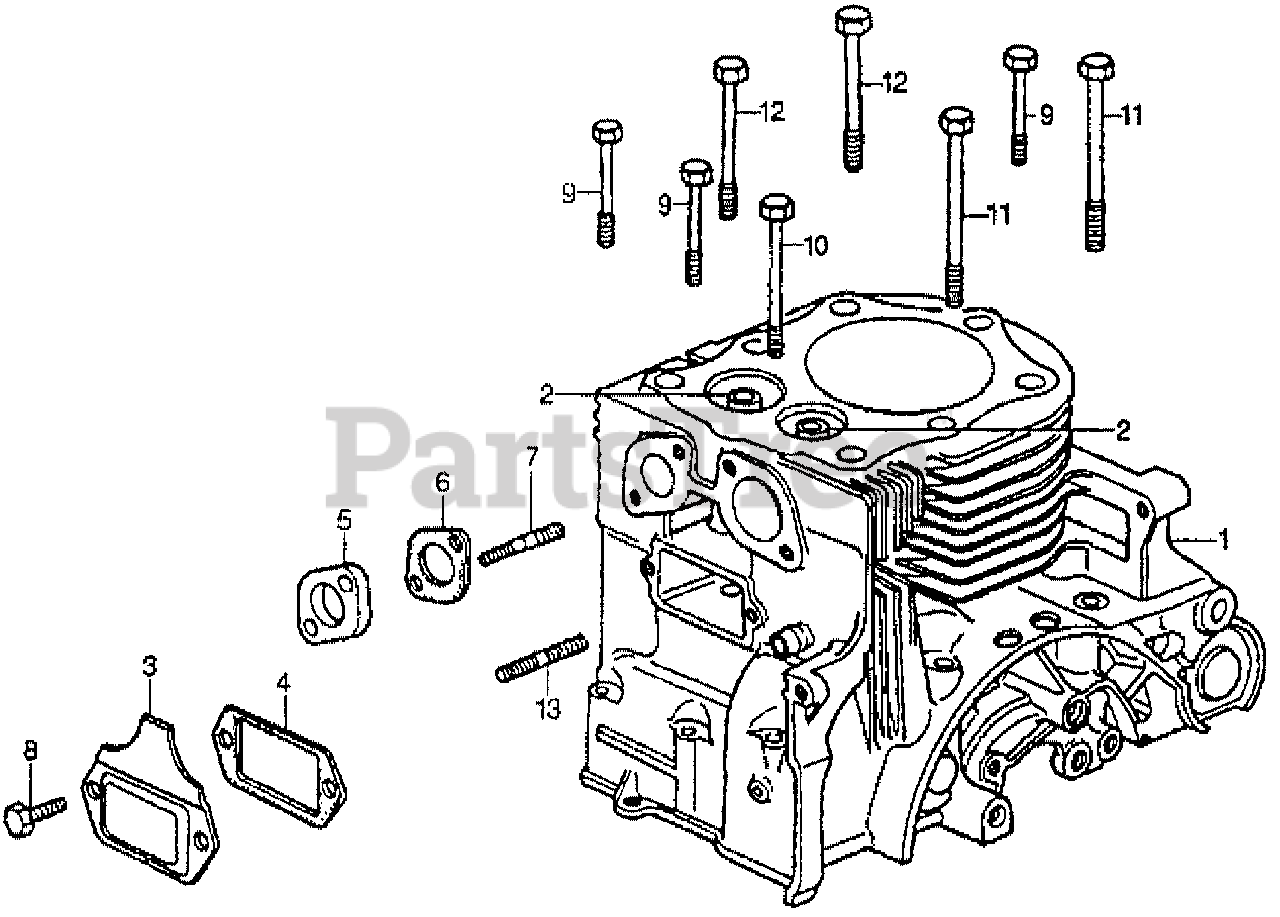

CYLINDER Parts Diagram

  • Title

1

Honda 12100-874-000

CYLINDER

$

$

Not available

2

Honda 12236-874-305

GUIDE, VALVE (OS)

$

$

Not available

3

Honda 12361-874-000

COVER, TAPPET (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 15719-823-000

GASKET, TAPPET COVER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16211-823-000

INSULATOR, CARBURETOR

$

$

Currently unavailable

6

Honda 16229-823-000

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 90062-822-701

BOLT, STUD (8X39) (NOT AVAILABLE)

$3.49

$

Usually ships in 3-6 days

0

8

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

9

Honda 92000-06063-0A

BOLT, HEX. (6X63)

$

$

Currently unavailable

10

Honda 92101-06090-0A

BOLT, HEX. (6X90)

$

$

Not available

11

Honda 92000-08100-0A

BOLT, HEX. (8X100)

$

$

Currently unavailable

12

Honda 92022-08080-0A

BOLT, HEX. (8X80) (SOURCE: VINTAGE PARTS INC.)

$

$

Not available

13

Honda 92700-06032-0B

BOLT, STUD (6X32)

$2.49

$

Usually ships in 3-6 days

0
