G80 BQ (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) BQ FAN COVER + SIDE COVER Parts Diagram

Engine, Made in Japan

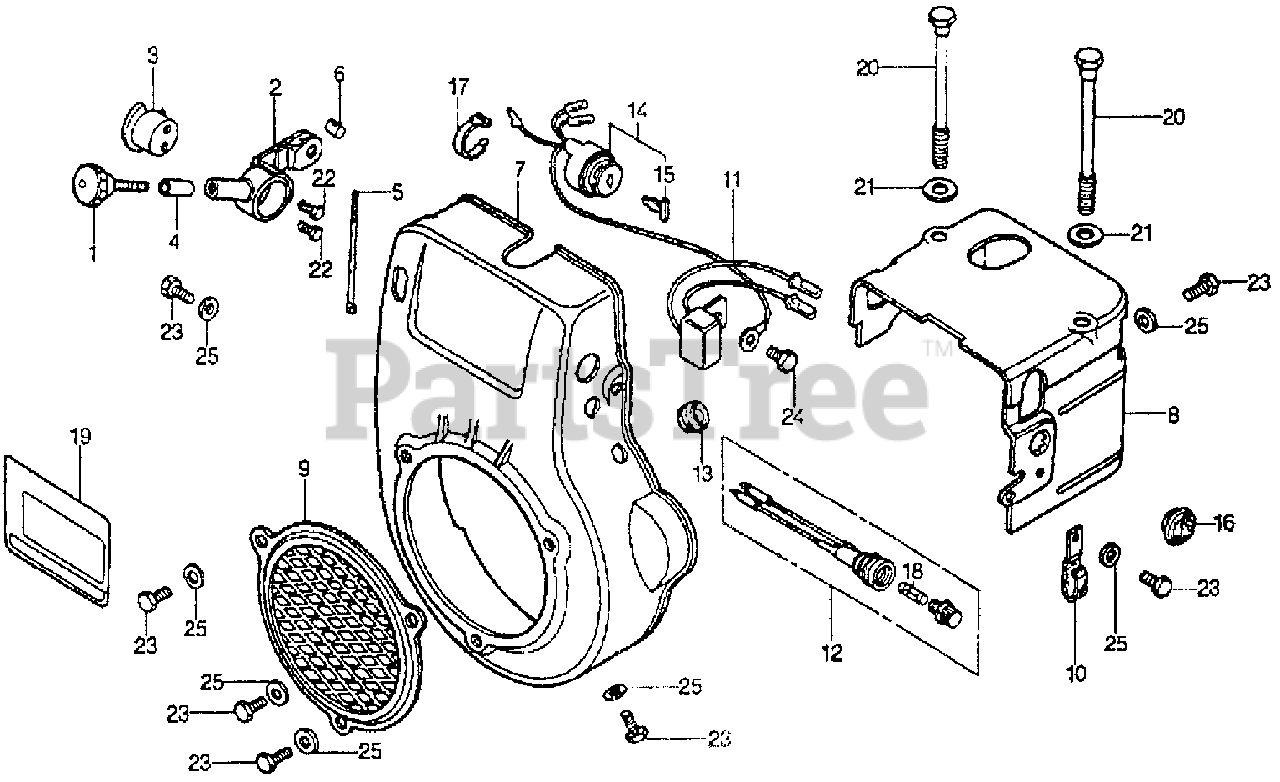

BQ FAN COVER + SIDE COVER Parts Diagram

  • Title

1

Honda 16561-865-000

SCREW, GOVERNOR ADJUST (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 16571-823-000

LEVER, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 16572-874-000

SHAFT, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16574-823-000

BUSH, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16575-823-000

ROD, ADJUSTING

$

$

Not available

6

Honda 16579-823-000

JOINT, ADJUSTING ROD (NOT AVAILABLE)

$

$

Not available

7

Honda 19600-874-761H

COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

8

Honda 19611-874-000H

COVER, SIDE *R8* (BRIGHT RED)

$

$

Not available

9

Honda 19630-823-760H

PROTECTOR, FAN COVER *R8* (BRIGHT RED)

$

$

Not available

10

Honda 30564-848-000

CLAMP, WIRE

Note: Use from Engine SN 1006893.

$

$

Not available

11

Honda 31700-823-760

DIODE

Note: Use up to Engine SN 1010708.

$

$

Currently unavailable

11

Honda 31700-823-761

RECTIFIER, SILICON (NOT AVAILABLE)

Note: Use from Engine SN 1010709.

$

$

Currently unavailable

12

Honda 32130-874-760

HOLDER, FUSE

$

$

Currently unavailable

13

Honda 32983-874-760

GROMMET, CABLE

Note: Use from Engine SN 1002613.

$

$

Currently unavailable

14

Honda 35100-874-303

SWITCH ASSY., COMBINATION

Note: Use up to Engine SN 1006892.

$

$

Not available

14

Honda 35100-874-761

SWITCH ASSY., COMBINATION

Note: Use from Engine SN 1006893.

$

$

Currently unavailable

15

Honda 35111-862-003

KEY

$9.49

$

Usually ships in 3-6 days

0

16

Honda 36151-873-740

GROMMET, COVER (NOT AVAILABLE)

$

$

Currently unavailable

17

Honda 36153-823-760

BAND, CABLE

Note: Use up to Engine SN 1006892.

$

$

Not available

18

Honda 38201-868-158

SEE PART DETAILS - SUP; FUSE (15A)
(Superseded to 38201-880-000)

$3.99

$

Usually ships in 3-6 days

0

19

Honda 87521-874-660

PLATE, DESCRIPTION (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 90006-874-000

BOLT, HEX. (10X76)

$

$

Not available

21

Honda 90426-035-000

WASHER, MAGNET FIXING

$3.49

$

Usually ships in 3-6 days

0

22

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

23

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

24

Honda 93101-06006-0A

BOLT, HEX. (6X6)

$

$

Not available

25

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
