G80 BQ (G80) - Honda Engine, Made in Japan (SN: G80-1000009 - G80-1054008) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

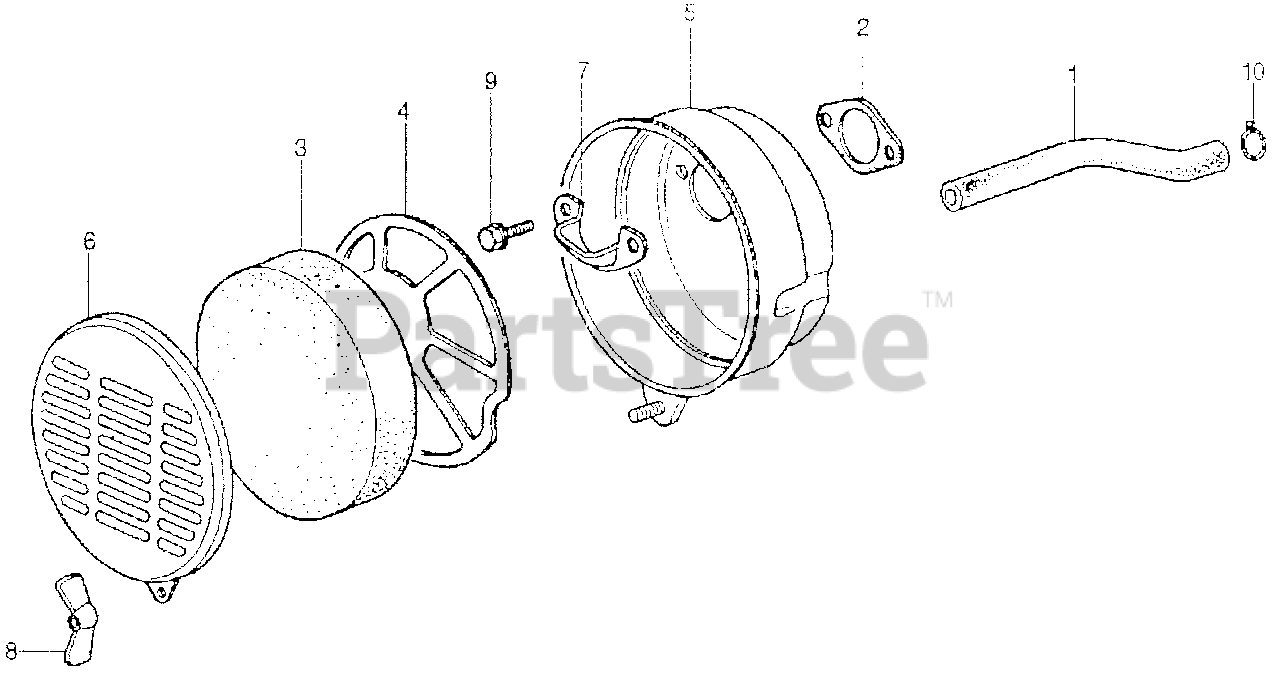

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 12381-873-000

TUBE, BREATHER

$

$

Not available

2

Honda 16269-823-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 17211-809-010

SEE PART DETAILS - SUP; ELEMENT, AIR CLEANER

$

$

Currently unavailable

3

Honda 17211-823-680

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER

$9.99

$

Usually ships in 3-6 days

0

4

Honda 17212-809-014

GRID, CLEANER

$

$

Currently unavailable

5

Honda 17220-873-000H

HOUSING, AIR CLEANER *R8* (BRIGHT RED) (NOT AVAILABLE)

$43.99

$

Usually ships in 3-6 days

0

6

Honda 17231-873-000H

COVER, AIR CLEANER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 17235-873-000

PLATE, BAFFLE (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90325-044-000

WINGNUT, TOOL BOX SETTING

$5.49

$

In Stock, Qty 20+

0

9

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

Note: Use up to Engine SN 1035383.

$1.99

$

Usually ships in 3-6 days

0

9

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

Note: Use from Engine SN 1035384.

$

$

Currently unavailable

9

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: Use from Engine SN 1035384.

$2.49

$

In Stock, only 1 left!

0

10

Honda 95002-02130

CLIP, TUBE (B12.5)

$1.49

$

In Stock, Qty 5

0
