G65 RD (G65) - Honda Engine, Made in Japan (SN: G65-1000025 - G65-1115197) G65 RECOIL STARTER Parts Diagram

Engine, Made in Japan

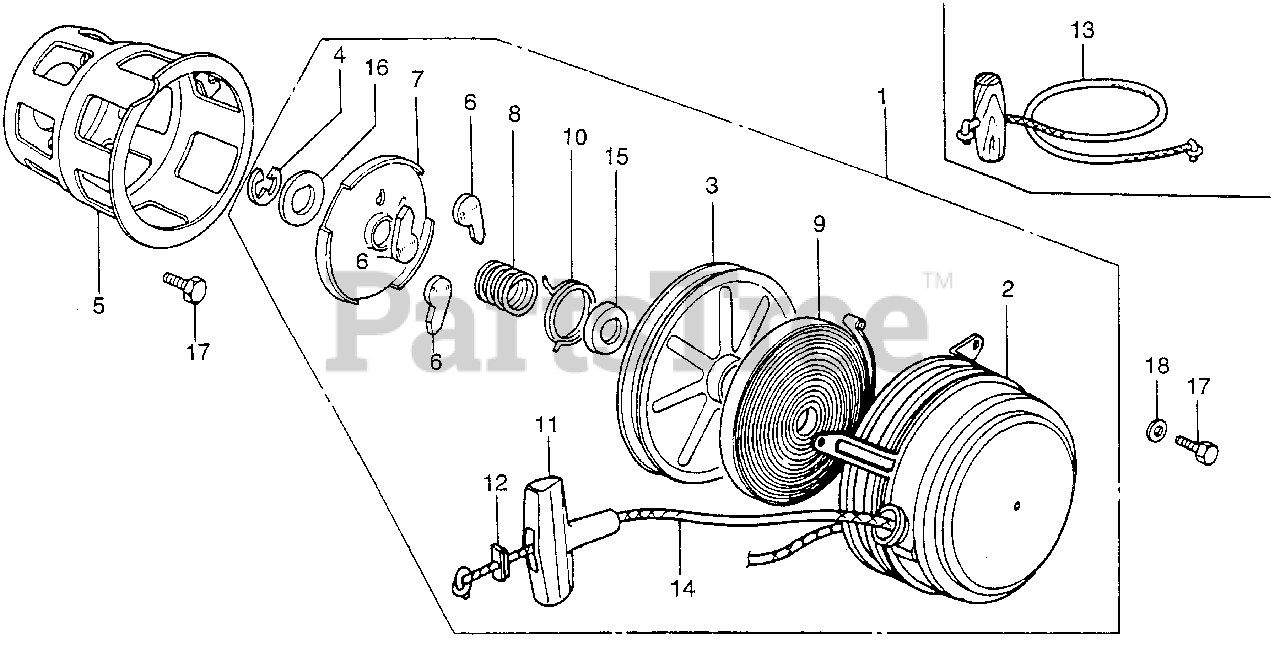

G65 RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-823-810H

STARTER, RECOIL *R2L* (SCARLET) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-823-810

CASE, STARTER

$

$

Not available

3

Honda 28420-822-810

PULLEY, RECOIL STARTER (NOT AVAILABLE)

$25.99

$

Usually ships in 3-6 days

0

4

Honda 28423-809-810

E-RING

Note: Use up to Engine SN 1013011.

$

$

Not available

5

Honda 28430-823-010

PULLEY, STARTER

$

$

Not available

6

Honda 28441-822-810

RATCHET, STARTER

$5.99

$

In Stock, only 2 left!

0

7

Honda 28445-822-650

PLATE, FRICTION

$

$

Not available

8

Honda 28446-809-810

SPRING, FRICTION

$2.49

$

Usually ships in 3-6 days

0

9

Honda 28451-809-810

SPRING, STARTER RETURN

$

$

Not available

10

Honda 28455-822-810

SPRING SET

$

$

Not available

11

Honda 28461-950-305

SEE PART DETAILS - PRI; KNOB SET, STARTER

$

$

Currently unavailable

12

Honda 28465-822-650

STOPPER, ROPE

$

$

Not available

13

Honda 28470-822-000

ROPE, STARTER (#6X64") (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 28471-809-810

ROPE, STARTER (#6X64")

$

$

Currently unavailable

15

Honda 90481-809-810

WASHER A

$

$

Not available

16

Honda 90482-810-810

WASHER B

$

$

Not available

17

Honda 92000-06012

SEE PART DETAILS - SUP; BOLT, HEX. (6X12)

$

$

Currently unavailable

17

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

18

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
