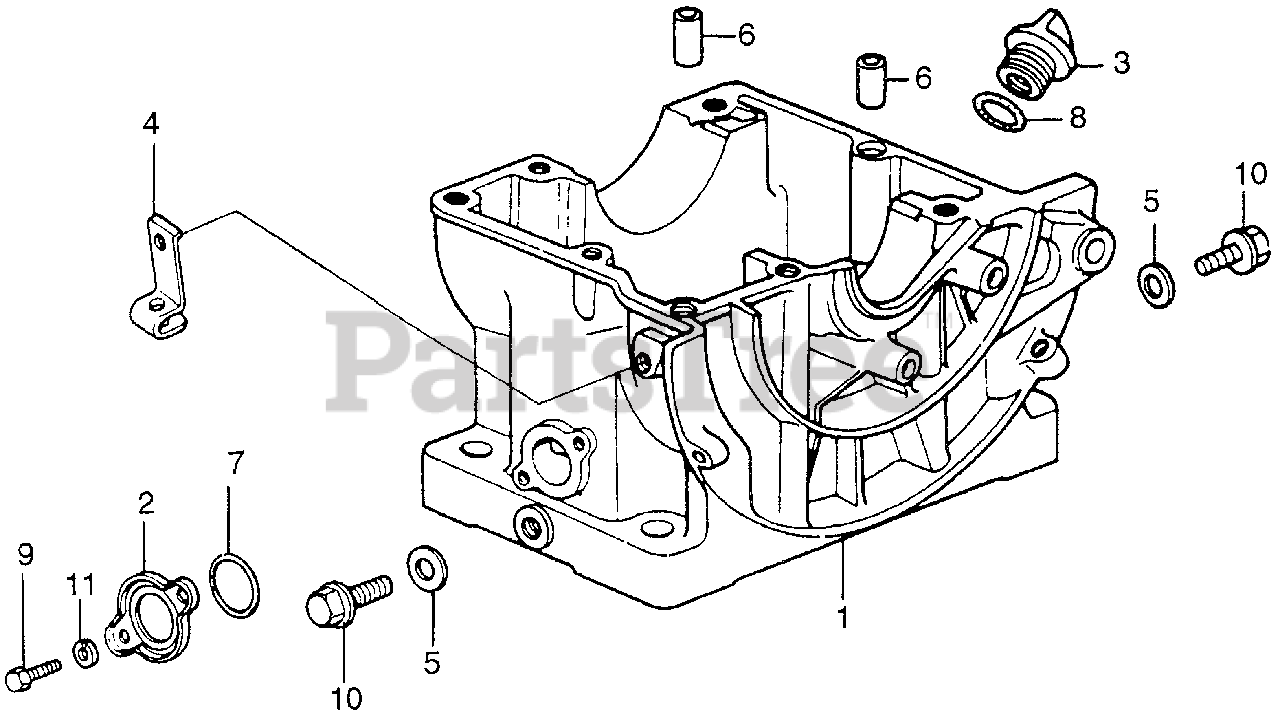

G65 Q (G65) - Honda Engine, Made in Japan (SN: G65-1000025 - G65-1115197) OIL PAN Parts Diagram

Engine, Made in Japan

OIL PAN Parts Diagram

  • Title

1

Honda 11200-823-010

PAN, OIL (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 11210-822-010

COVER, OIL PAN

Note: Use from Engine SN 1042095.

$3.99

$

Usually ships in 3-6 days

0

2

Honda 11210-822-405

COVER, OIL PAN

Note: Use up to Engine SN 1042094.

$

$

Not available

3

Honda 15611-921-000

CAP, OIL

$13.99

$

Usually ships in 3-6 days

0

4

Honda 16591-809-000

HOLDER, CABLE (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, only 3 left!

0

6

Honda 90701-200-000

PIN, KNOCK (8.5X11) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 91301-028-000

O-RING (27X2.0)

Note: Use from Engine SN 1042095.

$3.99

$

Usually ships in 3-6 days

0

7

Honda 91305-KF0-003

O-RING (27X2.0)

Note: Use from Engine SN 1042095.

$3.99

$

Usually ships in 3-6 days

0

8

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

Usually ships in 3-6 days

0

9

Honda 92000-06012

SEE PART DETAILS - SUP; BOLT, HEX. (6X12)

$

$

Currently unavailable

9

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

10

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0
