G65 K2 RD1 (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) GK2/Q3 ADVANCER Parts Diagram

Engine, Made in Japan

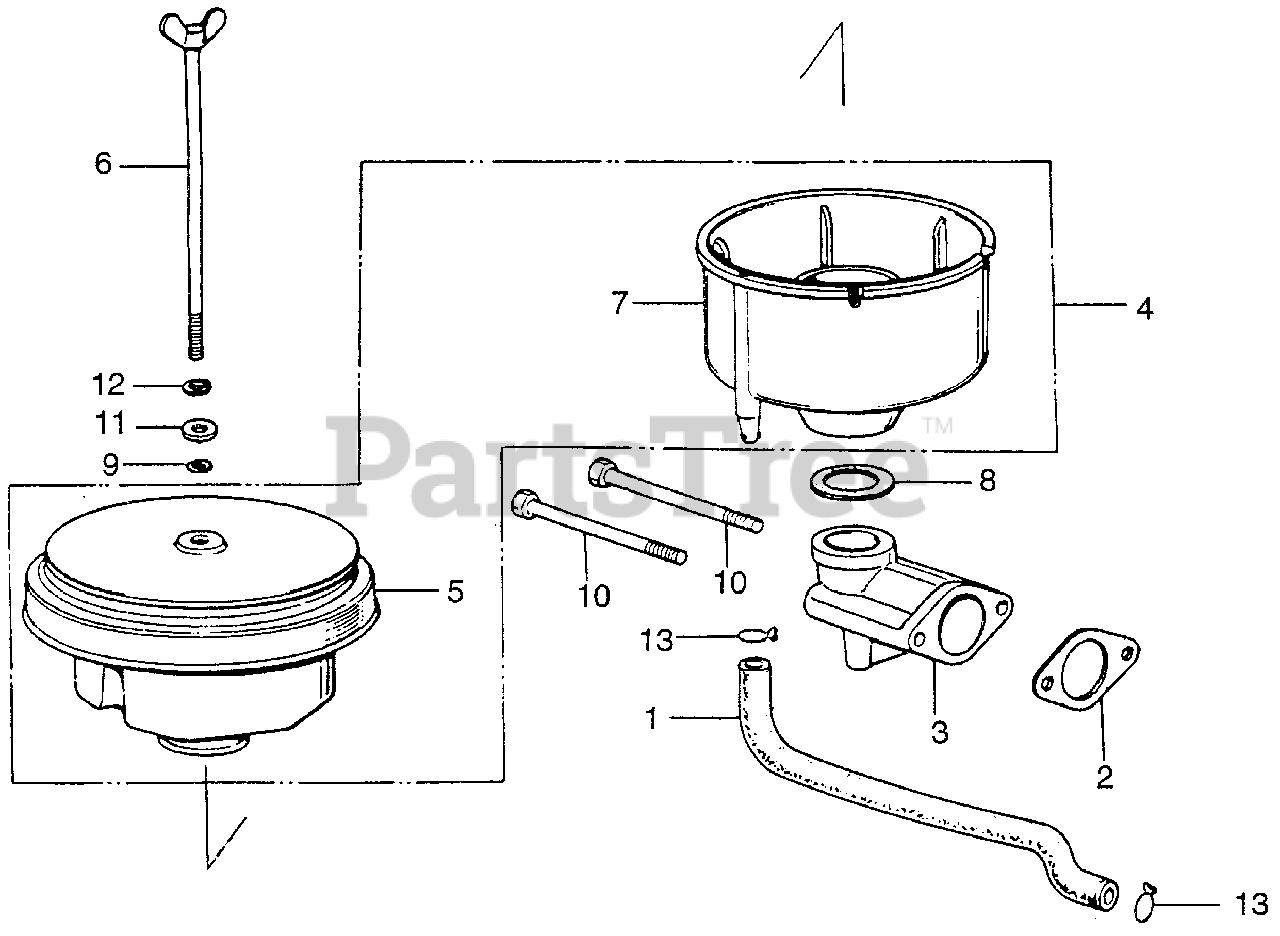

GK2/Q3 ADVANCER Parts Diagram

  • Title

1

Honda 12381-873-740

TUBE, BREATHER

$

$

Not available

2

Honda 16269-823-000

SEE PART DETAILS - SUP; GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 17251-873-740

ELBOW, AIR CLEANER

$

$

Not available

4

Honda 17400-873-505

SEE PART DETAILS - PRI; AIR CLEANER ASSY., OIL BATH

$

$

Currently unavailable

5

Honda 174A0-889-000

BODY KIT, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 17425-865-780

BOLT, AIR CLEANER

$14.99

$

Usually ships in 3-6 days

0

7

Honda 17441-724-000

PAN, CLEANER OIL

$

$

Currently unavailable

8

Honda 17475-709-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 91301-283-005

SEE PART DETAILS - SUP; O-RING (5X2.4)
(Superseded to 91301-426-010)

$5.49

$

Usually ships in 3-6 days

0

9

Honda 91301-426-010

SEE PART DETAILS - PRI; O-RING (4.9X2.5)

$5.49

$

Usually ships in 3-6 days

0

10

Honda 92101-06070-0A

BOLT, HEX. (6X70)

$3.49

$

Usually ships in 3-6 days

0

11

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

12

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

13

Honda 95002-02130

CLIP, TUBE (B12.5)

$1.49

$

In Stock, Qty 5

0
