G65 K2 RD1 (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) FAN COVER + SIDE COVER Parts Diagram

Engine, Made in Japan

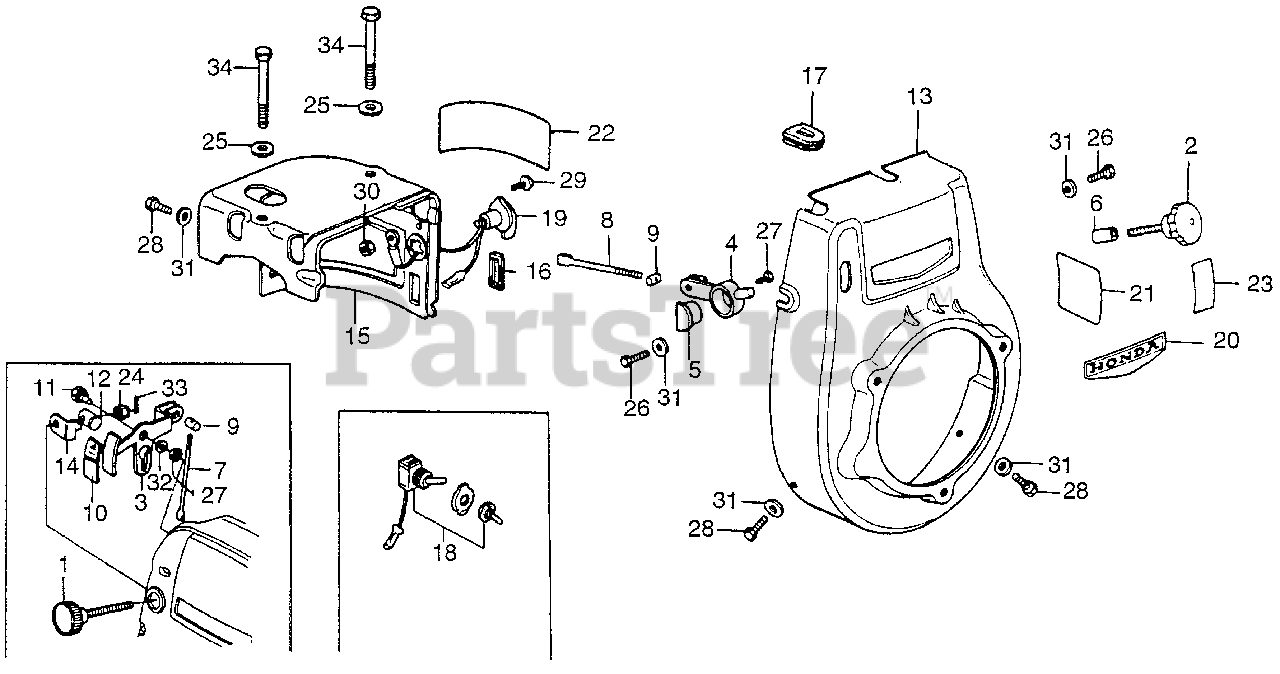

FAN COVER + SIDE COVER Parts Diagram

  • Title

2

Honda 16561-865-000

SCREW, GOVERNOR ADJUST (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 16571-823-000

LEVER, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 16572-823-000

SHAFT, CONTROL

$

$

Not available

6

Honda 16574-823-000

BUSH, CONTROL (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 16575-823-000

ROD, ADJUSTING

$

$

Not available

9

Honda 16579-823-000

JOINT, ADJUSTING ROD (NOT AVAILABLE)

$

$

Not available

13

Honda 19600-873-000H

COVER, FAN *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 19611-873-000H

COVER, SIDE *R8* (BRIGHT RED)

$

$

Not available

17

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$4.99

$

Usually ships in 3-6 days

0

17

Honda 19905-865-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

19

Honda 36100-865-003

SWITCH ASSY., ENGINE STOP

$

$

Not available

20

Honda 87101-865-000

EMBLEM (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 87521-873-660

PLATE, DESCRIPTION

$

$

Not available

23

Honda 87531-823-660

PLATE, THROTTLE (ENGLISH/FRENCH)

$

$

Not available

25

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

Usually ships in 3-6 days

0

26

Honda 92101-05008-0A

SEE PART DETAILS - PRI; BOLT, HEX. (5X8)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 92000-06012

SEE PART DETAILS - SUP; BOLT, HEX. (6X12)

$

$

Currently unavailable

28

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

29

Honda 93500-05008-0A

SCREW, PAN (5X8)

Note: Use up to Engine SN 3007795.

$1.49

$

In Stock, Qty 8

0

29

Honda 93500-05008-0H

SCREW, PAN (5X8)

Note: Use from Engine SN 3007796.

$1.49

$

Usually ships in 3-6 days

0

30

Honda 94001-05000-0S

NUT, HEX. (5MM)

Note: Use up to Engine SN 3007795.

$2.49

$

Usually ships in 3-6 days

0

30

Honda 94001-050800S

SEE PART DETAILS - PRI; NUT, HEX. (5MM)
(Superseded to 94001-05080-0S)

Note: Use from Engine SN 3007796.

$1.49

$

Usually ships in 3-6 days

0

31

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
