G65 K2 RD1 (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) CRANKSHAFT + PISTON Parts Diagram

Engine, Made in Japan

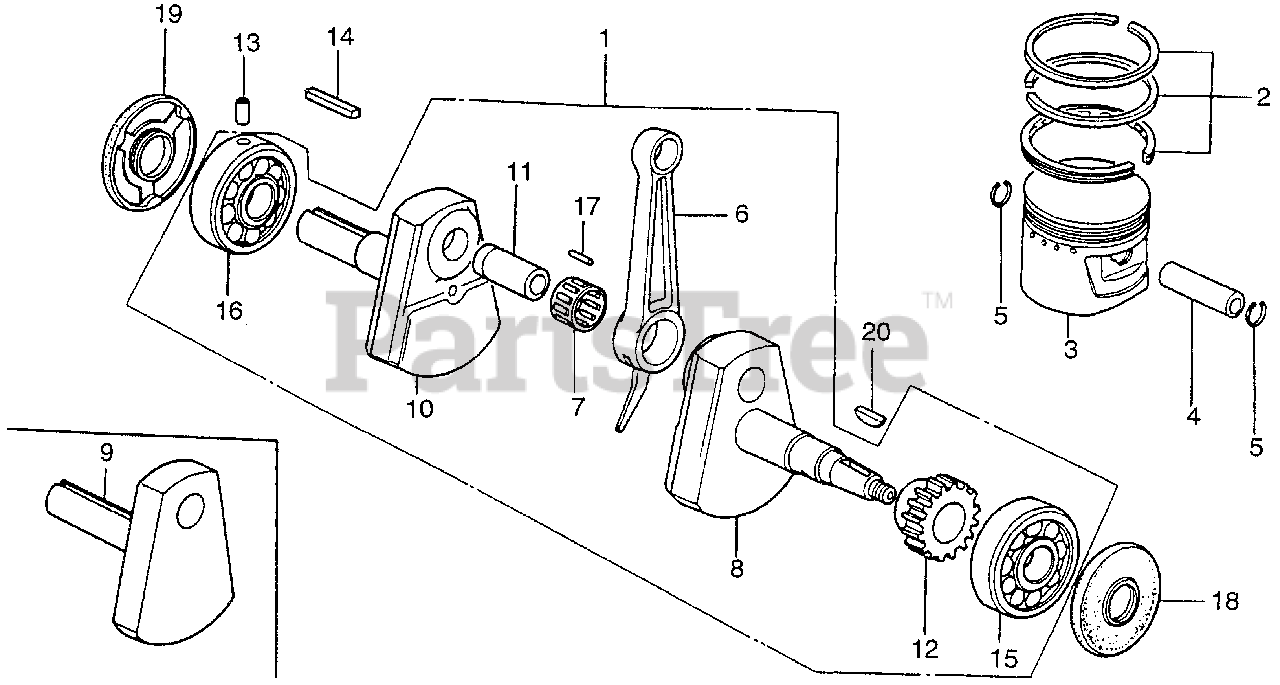

CRANKSHAFT + PISTON Parts Diagram

  • Title

1

Honda 13000-873-000

CRANKSHAFT ASSY.

$

$

Not available

1

Honda 13000-873-700

CRANKSHAFT ASSY.

$

$

Not available

2

Honda 13011-809-010

RING SET, PISTON (STD)

$51.99

$

Usually ships in 3-6 days

0

2

Honda 13021-809-010

RING SET, PISTON (OS 0.25) (NOT AVAILABLE)

$36.99

$

Usually ships in 3-6 days

0

2

Honda 13031-809-010

RING SET, PISTON (OS 0.50) (NOT AVAILABLE)

$

$

Not available

2

Honda 13041-809-010

RING SET, PISTON (0.75) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 13101-823-000

PISTON (STD) (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 13102-823-000

PISTON (OS 0.25)

$

$

Currently unavailable

3

Honda 13103-823-000

PISTON (OS 0.50) (NOT AVAILABLE)

$

$

Not available

3

Honda 13104-823-000

PISTON (0.75)

$

$

Not available

4

Honda 13111-809-010

PIN, PISTON

$

$

Not available

5

Honda 94601-19000

CLIP, PISTON PIN (19MM)

$0.99

$

Usually ships in 3-6 days

0

6

Honda 13201-809-010

ROD, CONNECTING (NOT AVAILABLE)

$110.99

$

Usually ships in 3-6 days

0

7

Honda 13211-809-000

RETAINER, ROLLER

$51.99

$

Usually ships in 3-6 days

0

8

Honda 13311-823-310

CRANKSHAFT, R. (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 13321-809-010

CRANKSHAFT, L.

$

$

Not available

10

Honda 13321-873-700

CRANKSHAFT, L.

$

$

Not available

11

Honda 13381-809-010

PIN, CRANK (N/A: SEE ASSEMBLY)

$

$

Not available

12

Honda 14311-823-000

GEAR, TIMING

$

$

Not available

13

Honda 90705-259-020

PIN, KNOCK (7X12) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$9.99

$

Usually ships in 3-6 days

0

15

Honda 91001-809-003

BEARING, RADIAL BALL (6306S)

$

$

Currently unavailable

16

Honda 91002-809-003

SEE PART DETAILS - SUP; BEARING, BALL (6306)

$

$

Not available

17

Honda 91101-809-020

ROLLER, ROD (3X16)

$

$

Not available

18

Honda 91201-809-003

OIL SEAL (30759) (NOT AVAILABLE)

$

$

Not available

19

Honda 91202-809-003

OIL SEAL (PJ30779)

$24.99

$

Usually ships in 3-6 days

0

20

Honda 94401-25180

KEY, SPECIAL WOODRUFF (25X18)

$1.99

$

In Stock, Qty 12

0
