G65 K2 RD1 (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) 1/2 REDUCTION (G65-RD/G65K2-RD1 TYPE) Parts Diagram

Engine, Made in Japan

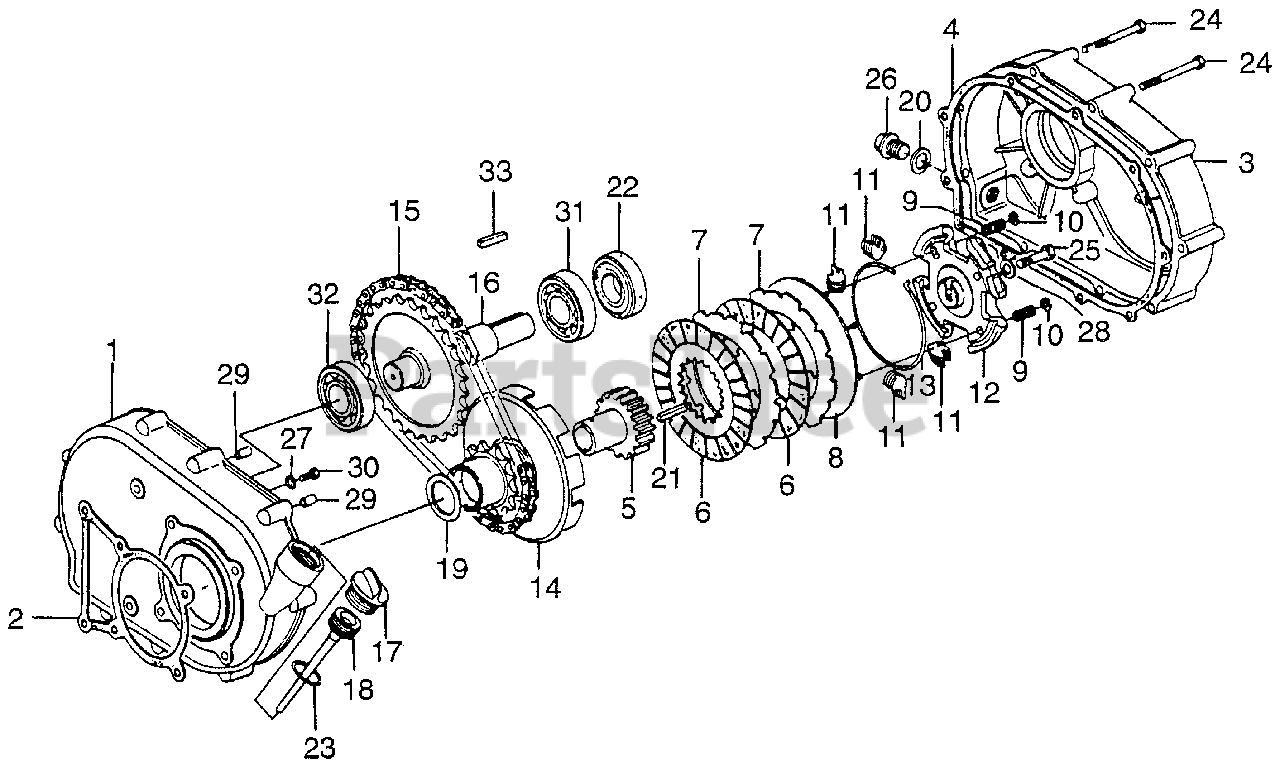

1/2 REDUCTION (G65-RD/G65K2-RD1 TYPE) Parts Diagram

  • Title

1

Honda 21510-823-611

CASE, REDUCTION

$

$

Not available

2

Honda 21591-809-610

GASKET, REDUCTION CASE (NOT AVAILABLE)

$

$

Currently unavailable

3

Honda 21610-822-611

COVER, REDUCTION

$227.99

$

Usually ships in 3-6 days

0

4

Honda 21691-822-306

SEE PART DETAILS - PRI; GASKET, REDUCTION

$

$

Not available

5

Honda 22121-822-610

CENTER, CLUTCH (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 22201-822-306

SEE PART DETAILS - PRI; DISK, CLUTCH FRICTION

$41.99

$

In Stock, Qty 10

0

7

Honda 22311-822-610

PLATE, CLUTCH

$24.99

$

In Stock, Qty 7

0

8

Honda 22350-822-610

PLATE, CLUTCH PRESSURE

$30.99

$

In Stock, Qty 5

0

9

Honda 22411-822-611

SPRING, CLUTCH FREE

$4.49

$

Usually ships in 3-6 days

0

10

Honda 22421-822-610

HOLDER, CLUTCH SPRING

$1.99

$

In Stock, only 1 left!

0

11

Honda 22521-822-610

WEIGHT, CLUTCH

$4.99

$

Usually ships in 3-6 days

0

12

Honda 22531-822-612

HOLDER, CLUTCH WEIGHT

$

$

Currently unavailable

13

Honda 22535-822-610

CENTER, CLUTCH WEIGHT

$3.49

$

Usually ships in 3-6 days

0

14

Honda 23120-822-610

SPROCKET, DRIVE (NOT AVAILABLE)

$

$

Currently unavailable

15

Honda 23161-822-611

CHAIN, DRIVE (RK428SH-36LE)

$64.99

$

Usually ships in 3-6 days

0

16

Honda 23711-822-610

SHAFT, P.T.O. (28T)

$74.99

$

Usually ships in 3-6 days

0

17

Honda 25620-823-000

SEE PART DETAILS - SUP; CAP, REDUCTION OIL

$

$

Not available

18

Honda 25651-822-610

DIPSTICK, OIL (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 90403-822-610

WASHER (22MM) (NOT AVAILABLE)

$

$

Currently unavailable

20

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

21

Honda 90741-822-610

KEY, CLUTCH CENTER (NOT AVAILABLE)

$

$

Currently unavailable

22

Honda 91202-805-610

SEE PART DETAILS - SUP; OIL SEAL (PJ30507)
(Superseded to 91202-Z2F-801)

$11.99

$

In Stock, Qty 11

0

23

Honda 91301-805-000

O-RING (26X2.7)

$5.49

$

In Stock, Qty 11

0

24

Honda 92000-06056-0A

BOLT, HEX. (6X56) (NOT AVAILABLE)

$

$

Currently unavailable

25

Honda 92000-08036-0A

SEE PART DETAILS - SUP; BOLT, HEX. (8X36)
(Superseded to 92101-08035-0A)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 92101-08035-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X35)

$1.49

$

Usually ships in 3-6 days

0

25

Honda 92101-08036-0A

SEE PART DETAILS - SUP; BOLT, HEX. (8X36)

$

$

Currently unavailable

26

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

27

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

27

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

28

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

29

Honda 94301-08100

SEE PART DETAILS - PRI; PIN A, DOWEL (8X10)

$2.99

$

Usually ships in 3-6 days

0

30

Honda 95100-08025-00

BOLT, HEX. (8X25) (NOT AVAILABLE)

$

$

Currently unavailable

31

Honda 96100-62050-10

BEARING, RADIAL BALL (6205)

$28.99

$

Usually ships in 3-6 days

0

32

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$32.99

$

In Stock, only 1 left!

0

33

Honda 90741-889-810

SEE PART DETAILS - PRI; KEY (7X7X33)

$9.99

$

Usually ships in 3-6 days

0
