G65 K2 Q3 (G65) - Honda Engine, Made in Japan (SN: G65-3000034 - G65-3102930) POINTS + IGNITION COILS + FLYWHEEL Parts Diagram

Engine, Made in Japan

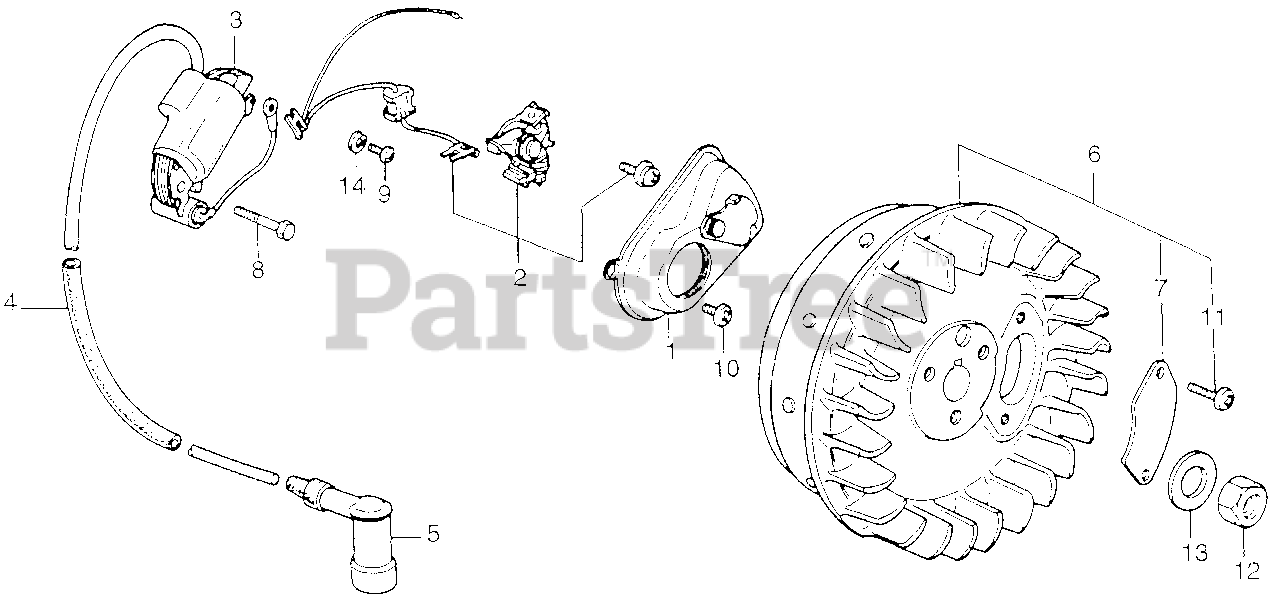

POINTS + IGNITION COILS + FLYWHEEL Parts Diagram

  • Title

1

Honda 30210-823-010

COVER, POINT

$

$

Not available

2

Honda 30280-873-000

POINTS ASSY.

$

$

Not available

3

Honda 30560-873-013

COIL, IGNITION (KOKUSAN)

$

$

Not available

4

Honda 30565-873-000

TUBE, IGNITION RUBBER (NOT AVAILABLE)

$

$

Currently unavailable

5

Honda 30700-098-163

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR

Note: Use up to Engine SN 3036785.

$

$

Not available

5

Honda 30700-865-013

SEE PART DETAILS - PRI; CAP ASSY., NOISE SUPPRESSOR

Note: Use from Engine SN 3036786.

$

$

Not available

6

Honda 31121-873-003

MAGNETO, FLYWHEEL (KOKUSAN) (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 31125-822-000

COVER, FLYWHEEL WINDOW (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 92000-06028

SEE PART DETAILS - SUP; BOLT, HEX. (6X28)

$

$

Currently unavailable

8

Honda 92101-06028-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X28)

$1.49

$

Usually ships in 3-6 days

0

9

Honda 93500-03007-0A

SCREW, PAN (3X7) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

10

Honda 93500-05006-0A

SEE PART DETAILS - PRI; SCREW, PAN (5X6)

$1.49

$

Usually ships in 3-6 days

0

11

Honda 93500-05008-0A

SCREW, PAN (5X8)

$1.49

$

In Stock, Qty 8

0

13

Honda 90408-822-010

WASHER (14MM)

$

$

Currently unavailable

14

Honda 94111-03000

WASHER, SPRING (3MM)

$1.49

$

In Stock, Qty 10

0
