G543ST (960730026) - Husqvarna Grass Catcher (2008-12) PRODUCT COMPLETE Parts Diagram

Grass Catcher

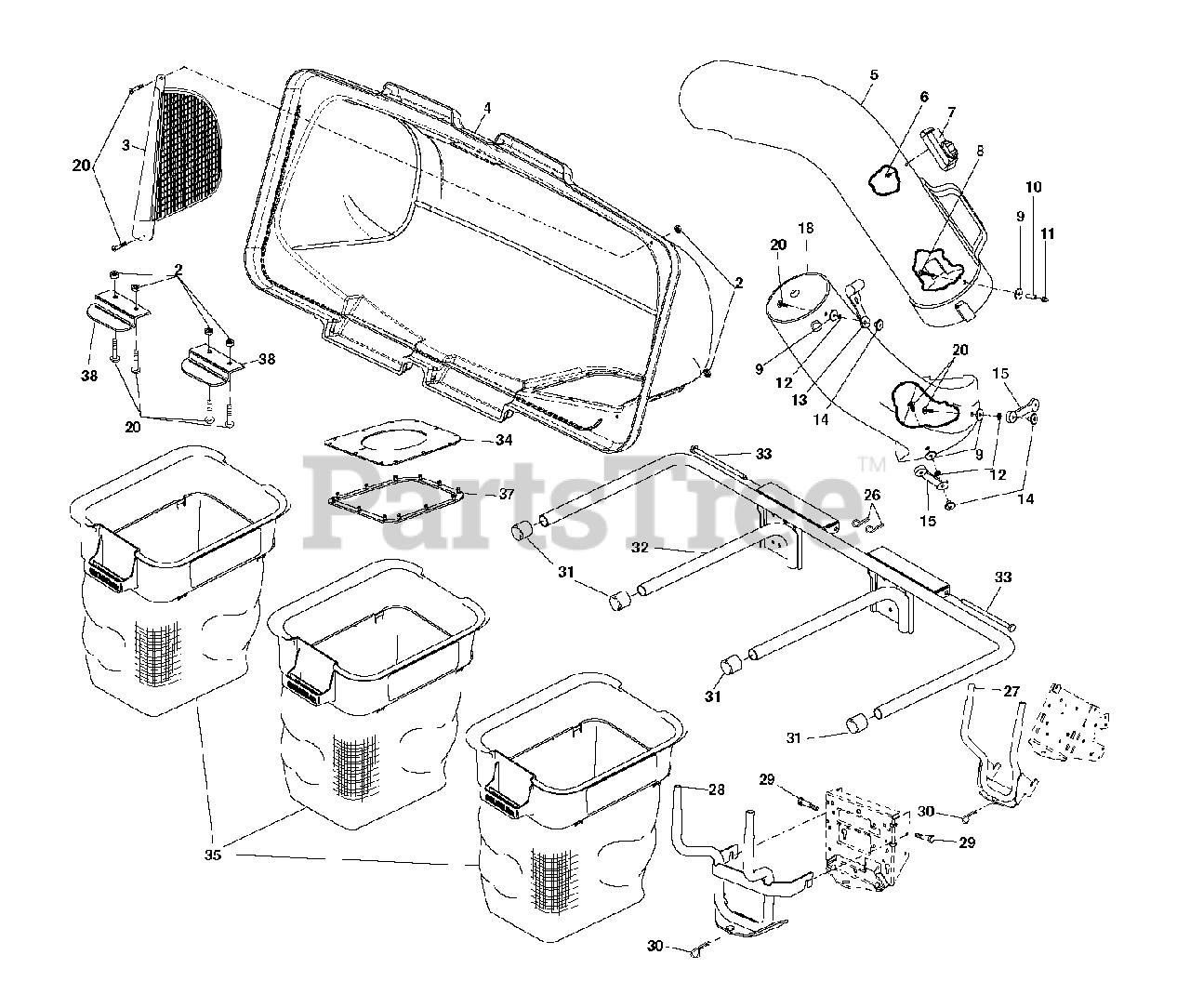

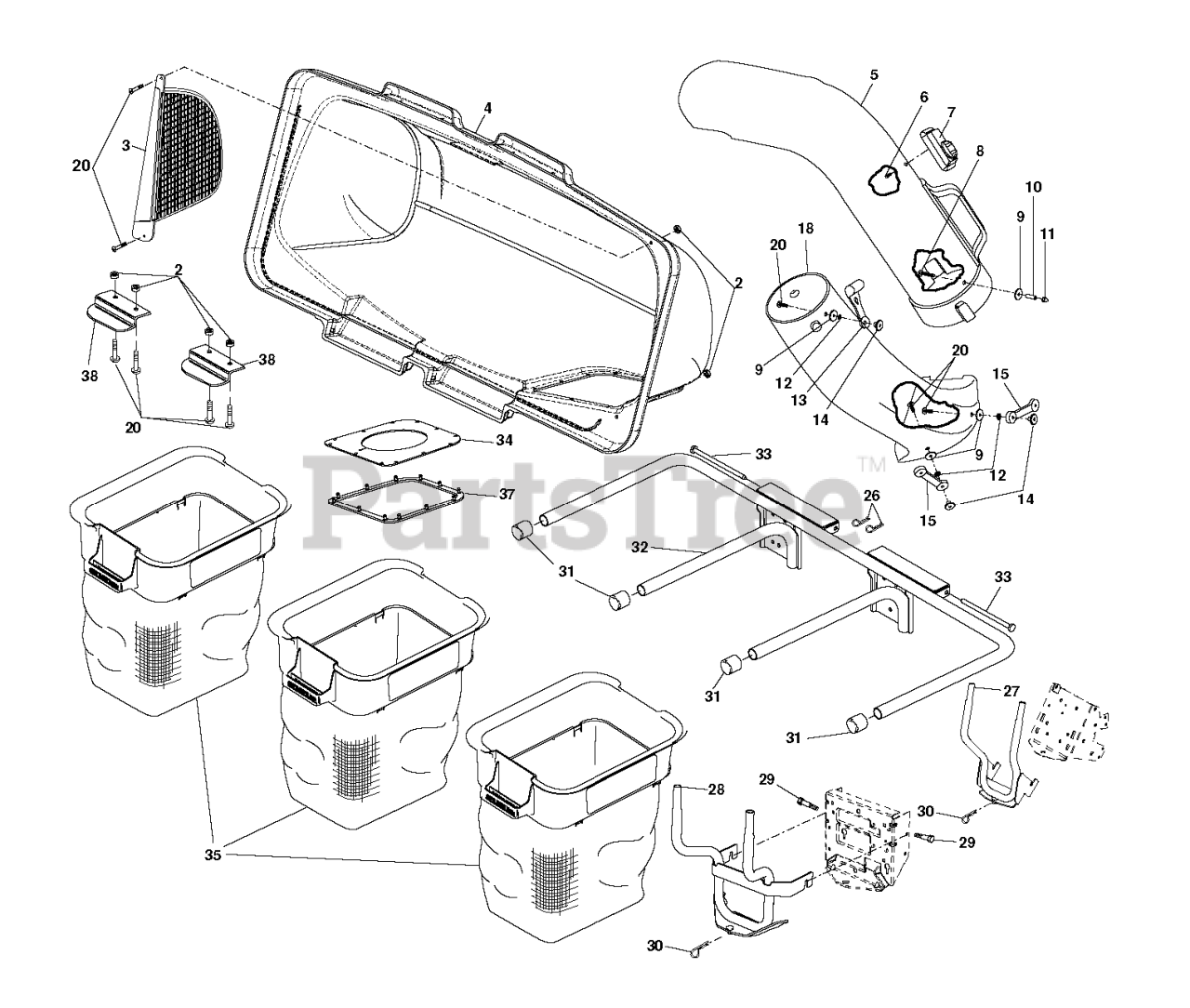

PRODUCT COMPLETE Parts Diagram

  • Title

2

Husqvarna 532069180

LOCKNUT

$6.49

$

Usually ships in 3-10 days

0

3

Husqvarna 532192709

SCREEN.COVER.BAGGER

$26.99

$

Usually ships in 3-10 days

0

4

Husqvarna 532195373

COVER.ASM.3BIN.GENERIC.

$278.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532187299

UPPER CHUTE 54"

$145.99

$

Usually ships in 3-10 days

0

6

Husqvarna 818021008

SCREW

$5.99

$

Usually ships in 3-10 days

0

7

Husqvarna 532130933

INDICATOR ASM BAG

$7.99

$

In Stock, only 2 left!

0

8

Husqvarna 532087175

SCREW
(Superseded to 874981024)

$9.99

$

In Stock, Qty 10

0

9

Husqvarna 532052784

RP STEEL WASHER
(Superseded to 819061216)

$4.99

$

In Stock, only 1 left!

0

10

Husqvarna 532007206

SPACER LT

$7.49

$

In Stock, Qty 8

0

11

Husqvarna 532060867

NUT
(Superseded to 539108086)

$4.99

$

In Stock, Qty 20+

0

12

Husqvarna 810071000

LOCKWASHER (3 2)

$4.99

$

In Stock, Qty 14

0

13

Husqvarna 532109808

LATCH.HOOD.

$6.99

$

In Stock, Qty 15

0

14

Husqvarna 532125004

WELDNUT
(Superseded to 596987401)

$3.99

$

In Stock, Qty 20+

0

15

532160793

LATCH ASSY

$

$

Not available

18

Husqvarna 532187300

CHUTE.BAGGER.LOWER.54"

$133.99

$

In Stock, only 1 left!

0

20

Husqvarna 871081010

SCREW
(Superseded to 596039001)

$3.99

$

In Stock, Qty 18

0

26

Husqvarna 532124670

Retainer Spring

$

$

Not available

27

Husqvarna 532414445

BAGGER.ASM.SUPPORT.GT.TEX.BLAC
(Superseded to 532198128)

$133.99

$

Usually ships in 3-10 days

0

28

Husqvarna 532420732

BAGGER.ASM.PNT.3-BIN.
(Superseded to 532198364)

$121.99

$

Usually ships in 3-10 days

0

29

Husqvarna 532176997

SHOULDER BOLT, SELF-TAP

$7.49

$

Usually ships in 3-10 days

0

30

Husqvarna 532165898

SPRING.RETAINER.YELLOW.ZINC

$7.49

$

Usually ships in 3-10 days

0

31

Husqvarna 532174083

PLUG, TUBING END

$7.49

$

In Stock, only 3 left!

0

32

Husqvarna 532414444

BAGGER.ASM.FRAME.3BIN.BLACK
(Superseded to 532176990)

$121.99

$

Usually ships in 3-10 days

0

33

Husqvarna 532192786

BAGGER.HINGE.PIN

$17.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532192550

SEAL.BAGGER.TOP.3-BIN.BLK

$20.99

$

In Stock, Qty 11

0

35

Husqvarna 532400226

CONTAINER BAG, SOFT

$87.99

$

In Stock, only 1 left!

0

37

Husqvarna 532192603

GASKET.COVER.BAGGER

$10.99

$

In Stock, only 1 left!

0

38

Husqvarna 532130895

LATCH CER38

$7.49

$

Usually ships in 3-10 days

0
