G42 RD (G42) - Honda Engine, Made in Japan (SN: G42-1000001 - G42-1188303) FUEL TANK Parts Diagram

Engine, Made in Japan

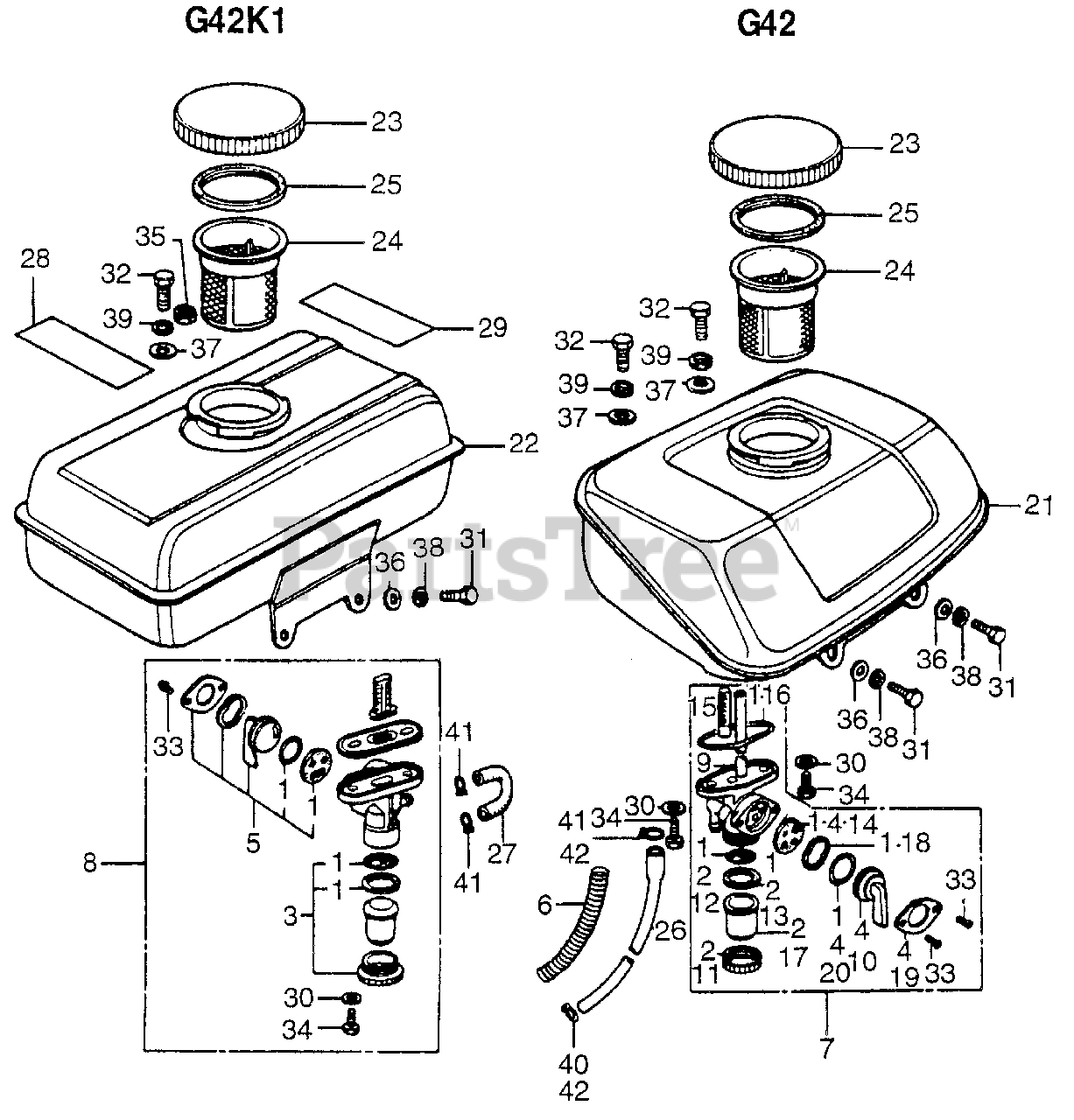

FUEL TANK Parts Diagram

  • Title

1

Honda 16080-865-005

GASKET SET, VALVE

Note: Use from Engine SN 1076268.

$39.99

$

In Stock, only 1 left!

0

2

Honda 16081-865-005

CUP SET, STRAINER

Note: Use from Engine SN 1076268.

$

$

Not available

4

Honda 16082-865-650

LEVER SET, VALVE

Note: Use from Engine SN 1076268.

$

$

Not available

6

Honda 16236-865-020

SPRING, FUEL TUBE (NOT AVAILABLE)

Note: Use up to Engine SN 1117087.

$

$

Currently unavailable

7

Honda 16950-805-305

SEE PART DETAILS - PRI; PETCOCK ASSY. (N/A: SEE COMPONENTS)

$32.99

$

Usually ships in 3-6 days

0

9

Honda 16950-865-701

SEE PART DETAILS - PRI; PETCOCK ASSY.

$

$

Not available

10

Honda 16952-865-010

LEVER, VALVE

$16.99

$

Usually ships in 3-6 days

0

11

Honda 16957-703-004

NUT, RING (NOT AVAILABLE)

Note: Use up to Engine SN 1076267.

$

$

Currently unavailable

12

Honda 16080-865-005

GASKET SET, VALVE

Note: Use up to Engine SN 1076267.

$39.99

$

In Stock, only 1 left!

0

13

Honda 16958-703-007

GASKET, FUEL STRAINER CUP

Note: Use up to Engine SN 1076267.

$5.99

$

In Stock, Qty 6

0

14

Honda 16959-865-000

GASKET, VALVE

Note: Use up to Engine SN 1076267.

$

$

Not available

15

Honda 16960-865-010

STRAINER (UPPER) (NOT AVAILABLE)

Note: Use up to Engine SN 1076267.

$

$

Currently unavailable

16

Honda 16962-865-010

RING, PETCOCK SEAL

Note: Use up to Engine SN 1076267.

$

$

Not available

17

Honda 16081-865-005

CUP SET, STRAINER

Note: Use up to Engine SN 1076267.

$

$

Not available

18

Honda 16975-815-004

SPRING, LEVER (NOT AVAILABLE)

$4.49

$

Usually ships in 3-6 days

0

19

Honda 16978-865-000

STOPPER, LEVER

Note: Use up to Engine SN 1076267.

$

$

Not available

20

Honda 16983-815-000

O-RING (21MM) (NOT AVAILABLE)

Note: Use up to Engine SN 1076267.

$

$

Not available

21

Honda 17500-865-662XC

TANK, FUEL *NH31* (MCKINLEY WHITE)

$

$

Not available

23

Honda 17650-805-750

CAP, FUEL TANK (NOT AVAILABLE)

$

$

Not available

24

Honda 17672-703-020

SEE PART DETAILS - PRI; FILTER, FUEL

$

$

Not available

25

Honda 17673-703-030

GASKET, FUEL FILTER (NOT AVAILABLE)

$

$

Not available

26

Honda 17685-865-010

TUBE, FUEL (4.5) (NOT AVAILABLE)

Note: Use up to Engine SN 1117087.

$

$

Currently unavailable

26

Honda 95001-75008-60M

BULK HOSE, FUEL (7.5X8000) (7.3X290)

Note: Use from Engine SN 1117088.

$155.99

$

Usually ships in 3-6 days

0

30

Honda 90445-700-000

GASKET, FIBER (6MM)

$1.99

$

In Stock, Qty 7

0

31

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

32

Honda 92101-08020-0A

BOLT, HEX. (8X20)

Note: Use up to Engine SN 2001782.

$2.49

$

Usually ships in 3-6 days

0

33

Honda 93500-03008-0A

SCREW, PAN (3X8)

$1.49

$

In Stock, only 1 left!

0

34

Honda 93500-06016-0A

SEE PART DETAILS - PRI; SCREW, PAN (6X16)

$1.49

$

Usually ships in 3-6 days

0

36

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0

37

Honda 94101-08000

WASHER, PLAIN (8MM)

$1.49

$

In Stock, Qty 20+

0

38

Honda 94111-06000

WASHER, SPRING (6MM)

$1.49

$

In Stock, only 1 left!

0

39

Honda 94111-08000

WASHER, SPRING (8MM)

$1.49

$

Usually ships in 3-6 days

0

40

Honda 95002-02080

CLIP, TUBE (B8)

Note: Use up to Engine SN 1117087.

$2.49

$

In Stock, only 4 left!

0

41

Honda 95002-02100

CLIP, TUBE (B10)

Note: Use up to Engine SN 1117087.

$2.49

$

In Stock, Qty 20+

0

42

Honda 95002-02120

SEE PART DETAILS - PRI; CLIP, TUBE (B12)

Note: Use from Engine SN 1117088.

$2.99

$

In Stock, only 2 left!

0
