G42 K1 RD (G42) - Honda Engine, Made in Japan (SN: G42-2103869 - G42-2191278) MUFFLER + TOOLS Parts Diagram

Engine, Made in Japan

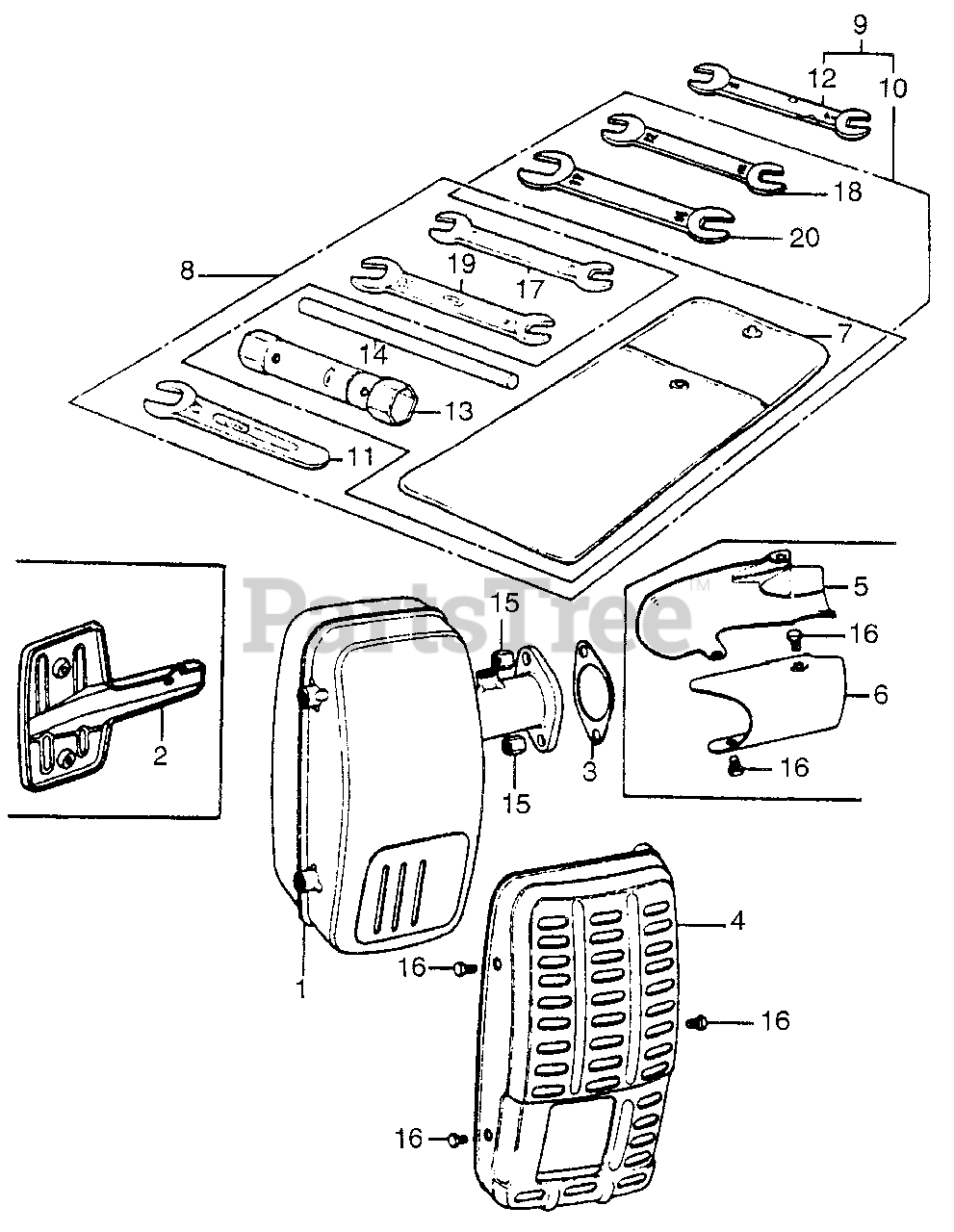

MUFFLER + TOOLS Parts Diagram

  • Title

1

Honda 18300-865-010

MUFFLER

$

$

Not available

2

Honda 18321-865-000

SEPARATOR, MUFFLER

$

$

Not available

3

Honda 18351-822-000

GASKET, MUFFLER

$6.49

$

Usually ships in 3-6 days

0

4

Honda 18361-865-020

PROTECTOR, MUFFLER

$

$

Not available

7

Honda 89101-ME5-670

BAG, TOOL

$8.99

$

In Stock, only 1 left!

0

9

Honda 89000-865-000

TOOL KIT

Note: Use up to Engine SN 2048612.

$16.99

$

Usually ships in 3-6 days

0

10

Honda 89000-875-000

TOOL KIT

Note: Use from Engine SN 2048613.

$11.99

$

Usually ships in 3-6 days

0

12

Honda 89215-700-000

WRENCH (8X9)

Note: Use up to Engine SN 2048612.

$6.99

$

Usually ships in 3-6 days

0

14

Honda 89219-805-000

HANDLE, BOX WRENCH

$3.99

$

Usually ships in 3-6 days

0

15

Honda 90381-703-000

NUT, HEX. (6MM)

$

$

Currently unavailable

16

Honda 93101-06006-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X6)

Note: Use from Engine SN 1094751.

$

$

Not available

18

Honda 99001-10120

WRENCH (10X12) (OPEN END)

$7.49

$

Usually ships in 3-6 days

0

20

Honda 99001-14170

WRENCH (14X17) (OPEN END)

$11.99

$

Usually ships in 3-6 days

0
