G42 K1 RD (G42) - Honda Engine, Made in Japan (SN: G42-2103869 - G42-2191278) CYLINDER Parts Diagram

Engine, Made in Japan

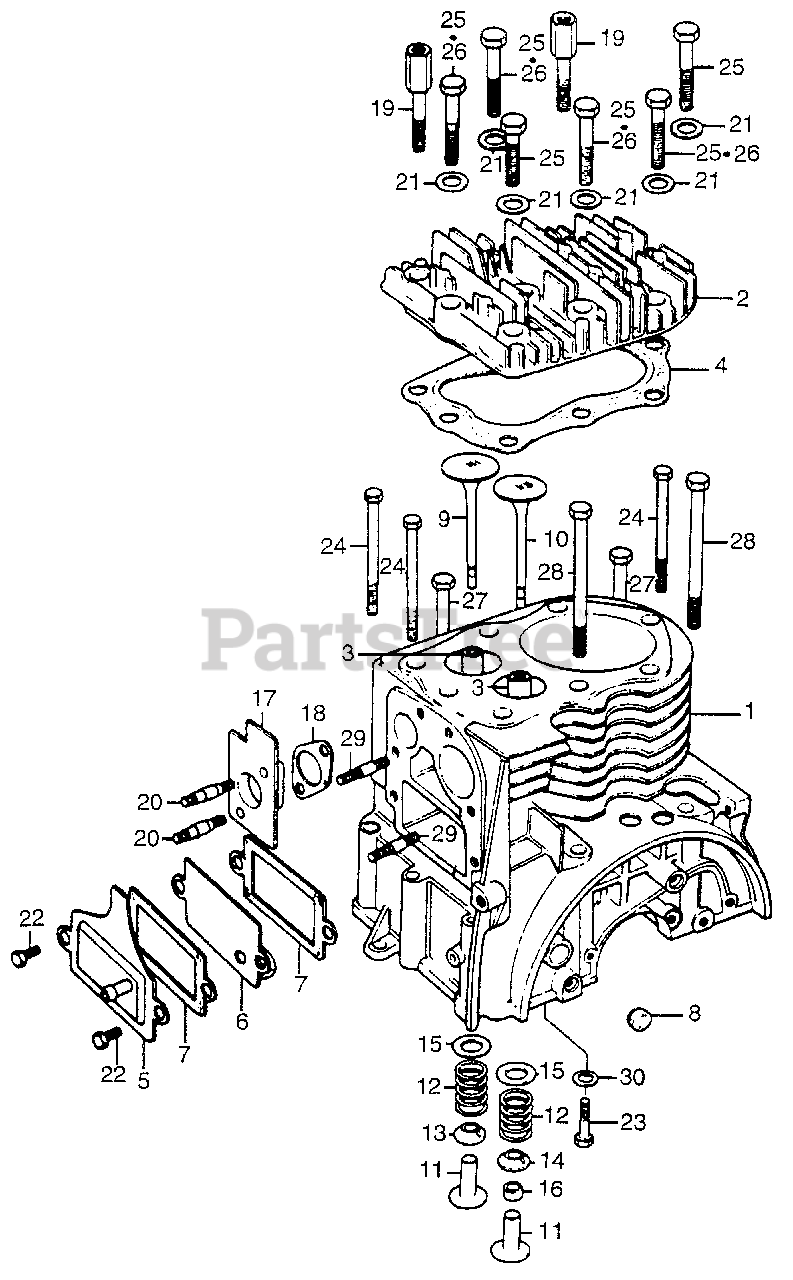

CYLINDER Parts Diagram

  • Title

2

Honda 12201-865-000

CYLINDER HEAD

$

$

Currently unavailable

3

Honda 12236-822-305

GUIDE, VALVE

$

$

Not available

4

Honda 12251-843-306

GASKET, CYLINDER HEAD

$36.99

$

Usually ships in 3-6 days

0

5

Honda 12361-865-010

COVER, TAPPET

$

$

Not available

16

Honda 14777-822-405

ADJUSTER, TAPPET CLEARANCE

$

$

Currently unavailable

16

Honda 14777-822-415

ADJUSTER, TAPPET CLEARANCE

$

$

Not available

16

Honda 14777-822-425

ADJUSTER, TAPPET CLEARANCE

$

$

Currently unavailable

17

Honda 16211-865-781

INSULATOR, CARBURETOR (NOT AVAILABLE)

$

$

Currently unavailable

18

Honda 16229-822-010

GASKET, CARBURETOR INSULATOR (NOT AVAILABLE)

$

$

Currently unavailable

19

Honda 90001-865-000

BOLT, CYLINDER HEAD CLAMP

Note: Use from Engine SN 2001783.

$

$

Currently unavailable

20

Honda 90062-822-701

BOLT, STUD (8X39) (NOT AVAILABLE)

$3.49

$

Usually ships in 3-6 days

0

21

Honda 90402-822-000

WASHER, HEAD (8MM)

$1.99

$

Usually ships in 3-6 days

0

22

Honda 92101-06016-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X16)

$1.99

$

In Stock, Qty 20+

0

23

Honda 92101-06032-0A

BOLT, HEX. (6X32)

$2.49

$

Usually ships in 3-6 days

0

24

Honda 92101-06070-0A

BOLT, HEX. (6X70)

$3.49

$

Usually ships in 3-6 days

0

25

Honda 95125-08036-00

SEE PART DETAILS - PRI; BOLT, HEX. (8X36) (SOURCE: VINTAGE PARTS INC.)

$

$

Currently unavailable

27

Honda 92000-08070-0A

BOLT, HEX. (8X70)

$

$

Currently unavailable

27

Honda 92200-08070-0A

BOLT, HEX. (8X70) (NOT AVAILABLE)

$

$

Currently unavailable

28

Honda 92000-08100-0A

BOLT, HEX. (8X100)

$

$

Currently unavailable

29

Honda 92900-06018-0B

SEE PART DETAILS - PRI; BOLT, STUD (6X18)

$2.49

$

Usually ships in 3-6 days

0

30

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
