G42 K1 RD (G42) - Honda Engine, Made in Japan (SN: G42-2103869 - G42-2191278) CARBURETOR Parts Diagram

Engine, Made in Japan

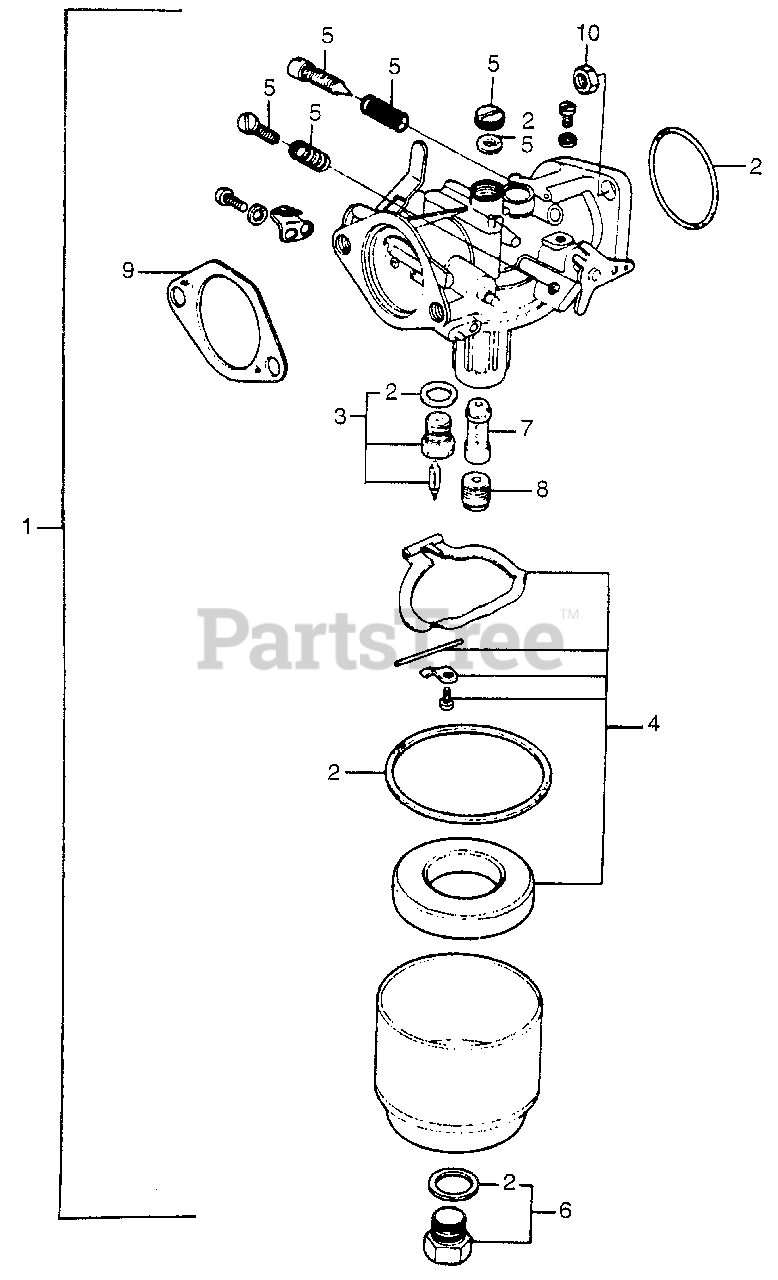

CARBURETOR Parts Diagram

  • Title

1

Honda 16100-865-701

CARBURETOR (N/A: SEE COMPONENTS)

$

$

Currently unavailable

2

Honda 16010-848-505

GASKET SET

$

$

Not available

3

Honda 16011-865-014

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-866-004)

Note: Use up to Engine SN 2103868.

$22.99

$

In Stock, only 1 left!

0

3

Honda 16011-865-014

SEE PART DETAILS - SUP; VALVE SET, FLOAT
(Superseded to 16011-866-004)

$22.99

$

In Stock, only 1 left!

0

4

Honda 16013-124-014

SEE PART DETAILS - PRI; FLOAT SET

Note: Use up to Engine SN 2103868.

$58.99

$

Usually ships in 3-6 days

0

4

Honda 16013-124-014

SEE PART DETAILS - PRI; FLOAT SET

$58.99

$

Usually ships in 3-6 days

0

5

Honda 16016-848-004

SCREW SET A (NOT AVAILABLE)

$

$

Currently unavailable

6

Honda 16028-848-004

SCREW SET (NOT AVAILABLE)

$

$

Currently unavailable

7

Honda 16166-865-004

NOZZLE, MAIN (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 99114-077-0800

JET, MAIN (#80) (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 99114-077-0780

JET, MAIN (#78) (NOT AVAILABLE)

$

$

Not available

9

Honda 16269-822-000

GASKET, AIR CLEANER (NOT AVAILABLE)

$

$

Currently unavailable

10

Honda 94001-06000-0S

SEE PART DETAILS - SUP; NUT, HEX. (6MM)
(Superseded to 94001-06200-0S)

$1.99

$

In Stock, Qty 20+

0

10

Honda 94001-06200-0S

SEE PART DETAILS - PRI; NUT, HEX. (6MM)

$1.99

$

In Stock, Qty 20+

0
