G42 K1 Q (G42) - Honda Engine, Made in Japan (SN: G42-2000001 - G42-2191278) RECOIL STARTER Parts Diagram

Engine, Made in Japan

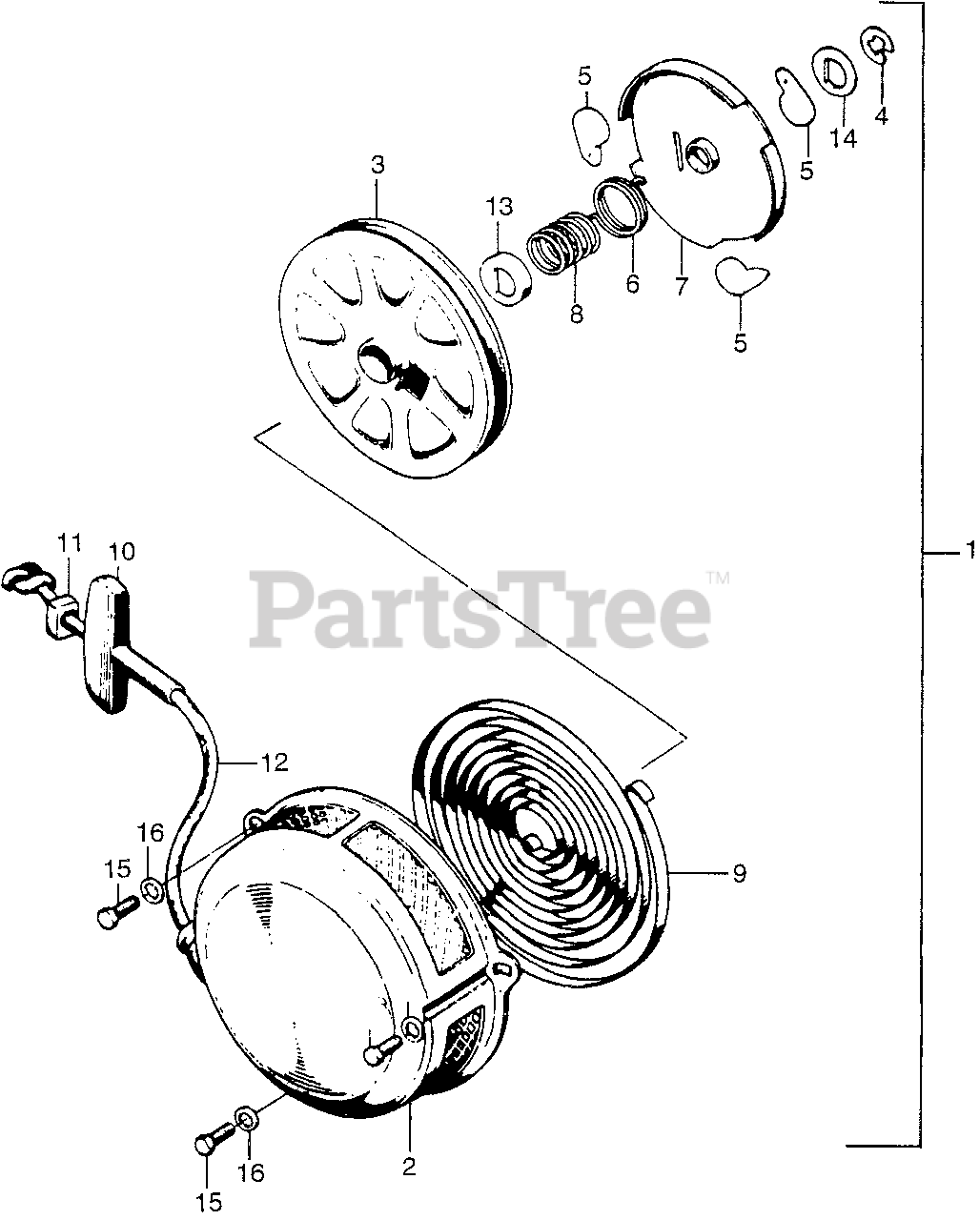

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-865-702H

STARTER ASSY., RECOIL *R8* (BRIGHT RED)

$

$

Currently unavailable

2

Honda 28410-848-811H

CASE, RECOIL STARTER *R8* (BRIGHT RED) (NOT AVAILABLE)

$

$

Currently unavailable

2

Honda 28410-865-700H

CASE, RECOIL STARTER *R8* (BRIGHT RED)

$

$

Not available

3

Honda 28420-848-810

PULLEY, RECOIL STARTER

$

$

Not available

4

Honda 28423-809-810

E-RING

$

$

Not available

5

Honda 28441-848-810

RATCHET, STARTER

$7.99

$

Usually ships in 3-6 days

0

6

Honda 28455-822-810

SPRING SET

$

$

Not available

7

Honda 28445-848-810

PLATE, FRICTION

$

$

Not available

8

Honda 28446-809-810

SPRING, FRICTION

$2.49

$

Usually ships in 3-6 days

0

9

Honda 28451-848-810

SPRING, STARTER RETURN

$39.99

$

Usually ships in 3-6 days

0

10

Honda 28461-950-305

SEE PART DETAILS - PRI; KNOB SET, STARTER

$

$

Currently unavailable

12

Honda 28462-ZE8-004

SEE PART DETAILS - PRI; ROPE, RECOIL STARTER (#6X54")

$

$

Not available

13

Honda 90481-822-650

WASHER A (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 90482-810-810

WASHER B

$

$

Not available

15

Honda 92101-06012-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X12)

$1.99

$

Usually ships in 3-6 days

0

16

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM)

$0.99

$

In Stock, Qty 20+

0
