G42 K1 Q (G42) - Honda Engine, Made in Japan (SN: G42-2000001 - G42-2191278) G42 1/2 REDUCTION CLUTCH I K1 Parts Diagram

Engine, Made in Japan

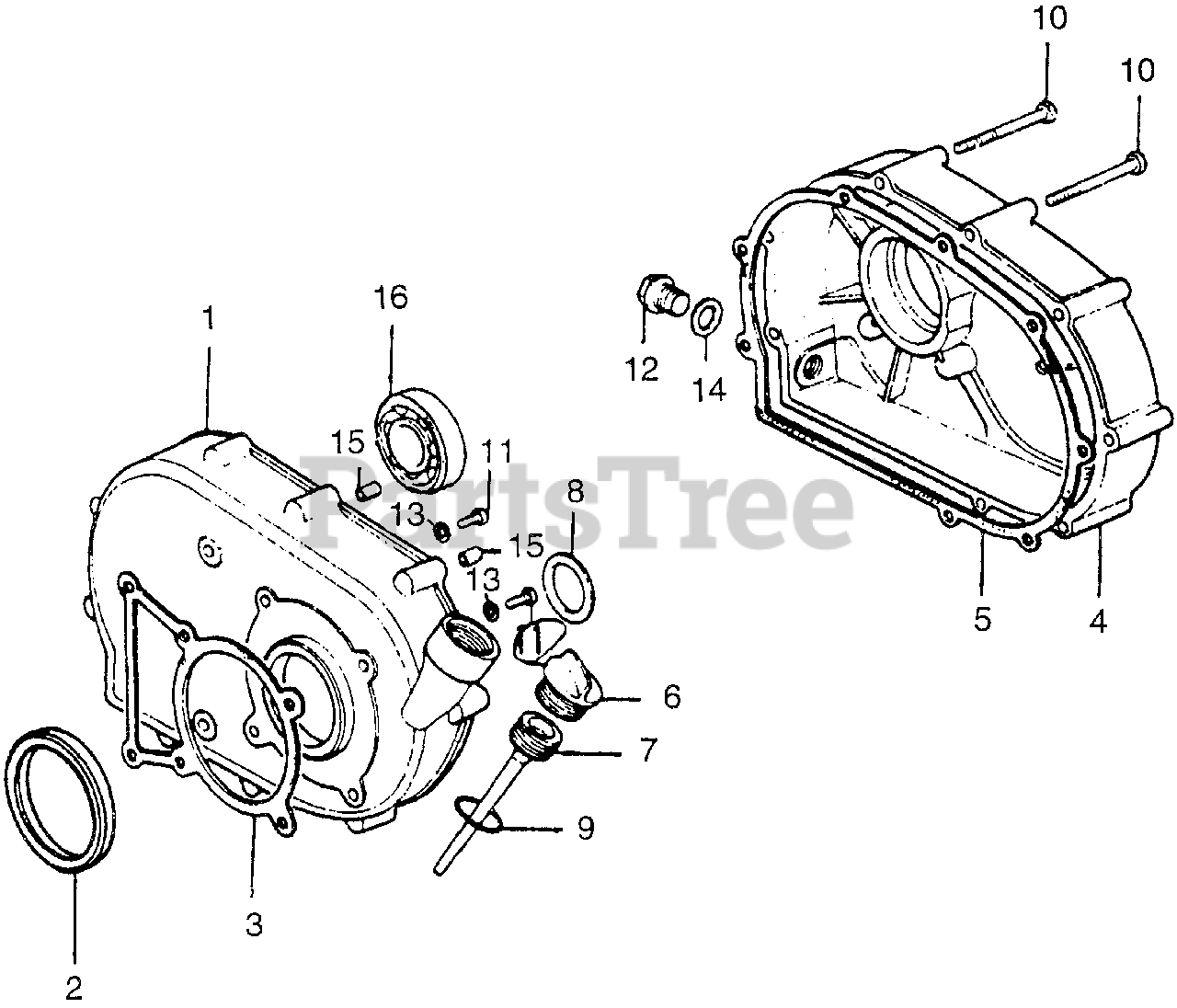

G42 1/2 REDUCTION CLUTCH I K1 Parts Diagram

  • Title

1

Honda 21510-822-305

CASE, REDUCTION

$

$

Not available

2

Honda 21515-848-610

ADAPTER, RING

$

$

Not available

3

Honda 21591-848-610

GASKET, REDUCTION CASE (NOT AVAILABLE)

$

$

Currently unavailable

4

Honda 21610-822-611

COVER, REDUCTION

$218.99

$

Usually ships in 3-6 days

0

5

Honda 21691-822-306

GASKET, REDUCTION

$

$

Not available

6

Honda 25620-805-612

SEE PART DETAILS - PRI; CAP, REDUCTION OIL (GRAY)

$8.49

$

Usually ships in 3-6 days

0

6

Honda 25620-823-000

SEE PART DETAILS - SUP; CAP, REDUCTION OIL

$

$

Not available

7

Honda 25651-822-610

DIPSTICK, OIL (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 90403-822-610

WASHER (22MM) (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 91301-805-000

O-RING (26X2.7)

$4.99

$

In Stock, Qty 11

0

10

Honda 92000-06056

BOLT, HEX. (6X56)

$

$

Currently unavailable

10

Honda 92000-06056-0A

BOLT, HEX. (6X56) (NOT AVAILABLE)

$

$

Currently unavailable

11

Honda 92101-08025-0A

SEE PART DETAILS - PRI; BOLT, HEX. (8X25)

$2.49

$

In Stock, Qty 6

0

12

Honda 92800-12000

BOLT, DRAIN PLUG (12MM)

$5.49

$

In Stock, only 2 left!

0

13

Honda 94102-08000

WASHER, PLAIN (8MM)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 94109-12000

WASHER, DRAIN PLUG (12MM)

$1.49

$

In Stock, Qty 20+

0

15

Honda 94302-08140

PIN, DOWEL (8X14)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

$30.99

$

In Stock, only 1 left!

0
