G42 K1 Q (G42) - Honda Engine, Made in Japan (SN: G42-2000001 - G42-2191278) FLYWHEEL Parts Diagram

Engine, Made in Japan

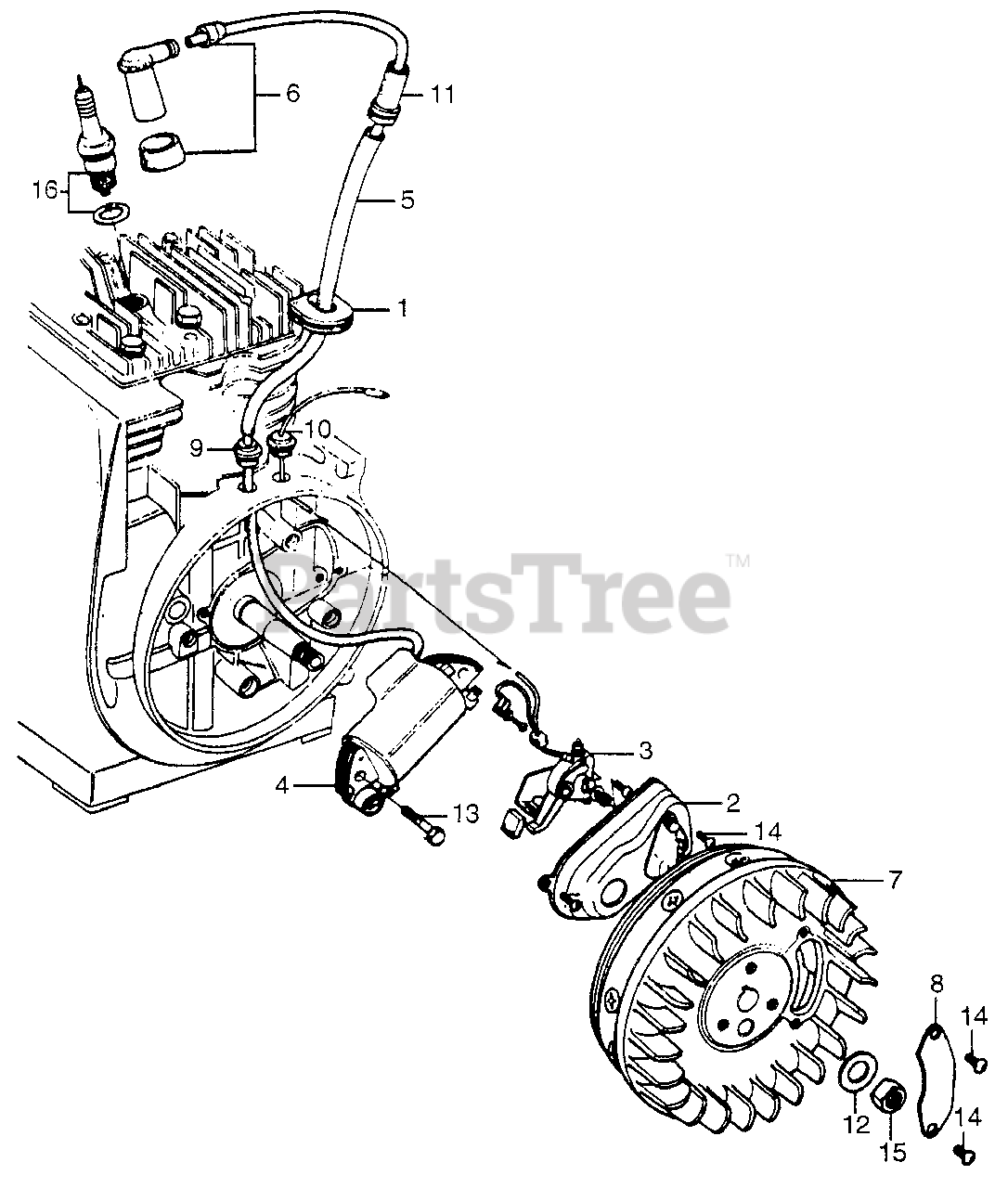

FLYWHEEL Parts Diagram

  • Title

1

Honda 19905-ZA8-701

SEE PART DETAILS - PRI; GROMMET, WIRE

$4.99

$

Usually ships in 3-6 days

0

1

Honda 19905-865-000

SEE PART DETAILS - SUP; GROMMET, WIRE

$

$

Currently unavailable

2

Honda 30210-822-010

SEE PART DETAILS - PRI; COVER, POINTS

$

$

Currently unavailable

3

Honda 30280-822-033

POINTS

$

$

Not available

4

Honda 30560-823-023

COIL, IGNITION

Note: Use up to Engine SN 2036560.

$

$

Not available

4

Honda 30560-823-023

COIL, IGNITION

Note: Use from Engine SN 2036561.

$

$

Not available

5

Honda 30565-865-000

TUBE, IGNITION RUBBER

Note: Use up to Engine SN 2148830.

$

$

Not available

5

Honda 30565-879-000

TUBE, IGNITION RUBBER

Note: Use from Engine SN 2148831.

$

$

Not available

6

Honda 30700-098-163

SEE PART DETAILS - SUP; CAP ASSY., NOISE SUPPRESSOR

Note: Use up to Engine SN 2086738.

$

$

Not available

6

Honda 30700-865-013

CAP ASSY., NOISE SUPPRESSOR

Note: Use from Engine SN 2086739.

$

$

Not available

7

Honda 31121-822-033

SEE PART DETAILS - PRI; FLYWHEEL (NOT AVAILABLE)

$

$

Currently unavailable

8

Honda 31125-822-000

COVER, FLYWHEEL WINDOW (NOT AVAILABLE)

$

$

Currently unavailable

9

Honda 32951-705-000

GROMMET, WIRE

$

$

Currently unavailable

10

Honda 32952-805-020

GROMMET, WIRE

$

$

Currently unavailable

11

Honda 36153-865-000

GROMMET, IGNITION WIRE

$

$

Not available

12

Honda 90408-822-000

WASHER (12MM)

$

$

Currently unavailable

13

Honda 92000-06028

SEE PART DETAILS - SUP; BOLT, HEX. (6X28)

$

$

Currently unavailable

13

Honda 92101-06028-0A

SEE PART DETAILS - PRI; BOLT, HEX. (6X28)

$1.49

$

Usually ships in 3-6 days

0

14

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

15

Honda 94001-14000-0S

NUT, HEX. (14MM)

$2.99

$

Usually ships in 3-6 days

0

16

Honda 98076-56710

SEE PART DETAILS - SUP; SPARK PLUG (B6HS) (NGK)

$

$

Not available

16

Honda 98076-56740

SEE PART DETAILS - PRI; SPARK PLUG (B6HS) (NGK)

$3.49

$

Usually ships in 3-6 days

0
