G4050 (8752-1) - Generac 4,000 Watt Portable Generator Panel Electric Start Units No. 63047 Parts Diagram

4,000 Watt Portable Generator

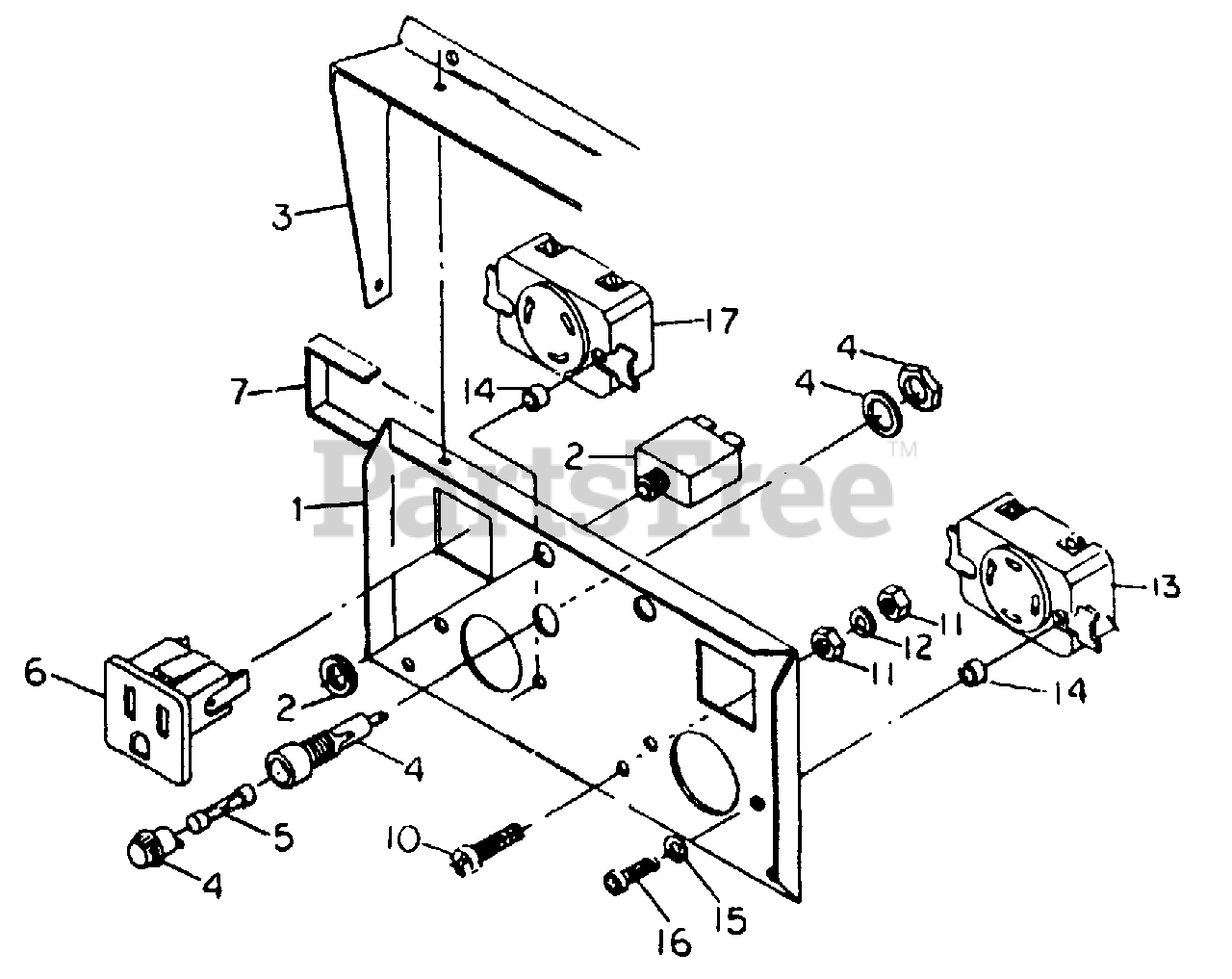

Panel Electric Start Units No. 63047 Parts Diagram

  • Title

1

Briggs & Stratton 61794B

PANEL

$

$

Currently unavailable

2

Briggs & Stratton 56286

BREAKER, Circuit - 15 Ampere

$

$

Not available

3

Briggs & Stratton 61485B

HOOD, Panel

$

$

Currently unavailable

4

Briggs & Stratton 22669

HOLDER, Fuse

$

$

Currently unavailable

5

Briggs & Stratton 22668

FUSE 30 Ampere

$

$

Currently unavailable

6

Briggs & Stratton 22693

RECEPTACLE 120 Volts AC
(Superseded to 7022693YP)

$52.99

$

Usually ships in 2-12 days

0

7

Briggs & Stratton 27272

RETAINER, Receptacle

$

$

Currently unavailable

10

Briggs & Stratton 36919

SCREW - No. 8-32 x 5/8"

$

$

Currently unavailable

11

Briggs & Stratton 22471

NUT, Hex - No. 8-32
(Superseded to 22471GS)

$3.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 22264

WASHER, Lock - No. 8

$

$

Not available

13

Briggs & Stratton 43482

RECEPTACLE - 240 Volts AC. 20 Ampere
(Superseded to 100522GS)

$34.99

$

Usually ships in 2-12 days

0

14

Briggs & Stratton 25909

SPACER (Nylon)
(Superseded to 25909GS)

$2.49

$

Usually ships in 2-12 days

0

15

Briggs & Stratton 22155

WASHER, Lock - No. 6
(Superseded to 5022155)

$130.99

$

Usually ships in 2-12 days

0

16

Briggs & Stratton 36901

SCREW - 6-32 x 3/8"

$

$

Currently unavailable

17

Briggs & Stratton 37807

RECEPTACLE - 120 Volts, 30 Ampere

$

$

Currently unavailable

17

Briggs & Stratton 37806

PLUG, Connector - 120 Volts AC. 30 Ampere
(Superseded to 100523GS)

$20.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 43438

PLUG, Connector
(Superseded to 43438GS)

$26.99

$

Usually ships in 2-12 days

0
