G4050 (8751-2) - Generac 4,000 Watt Portable Generator Sheet Metal No. 68373 - Manual Start Parts Diagram

4,000 Watt Portable Generator

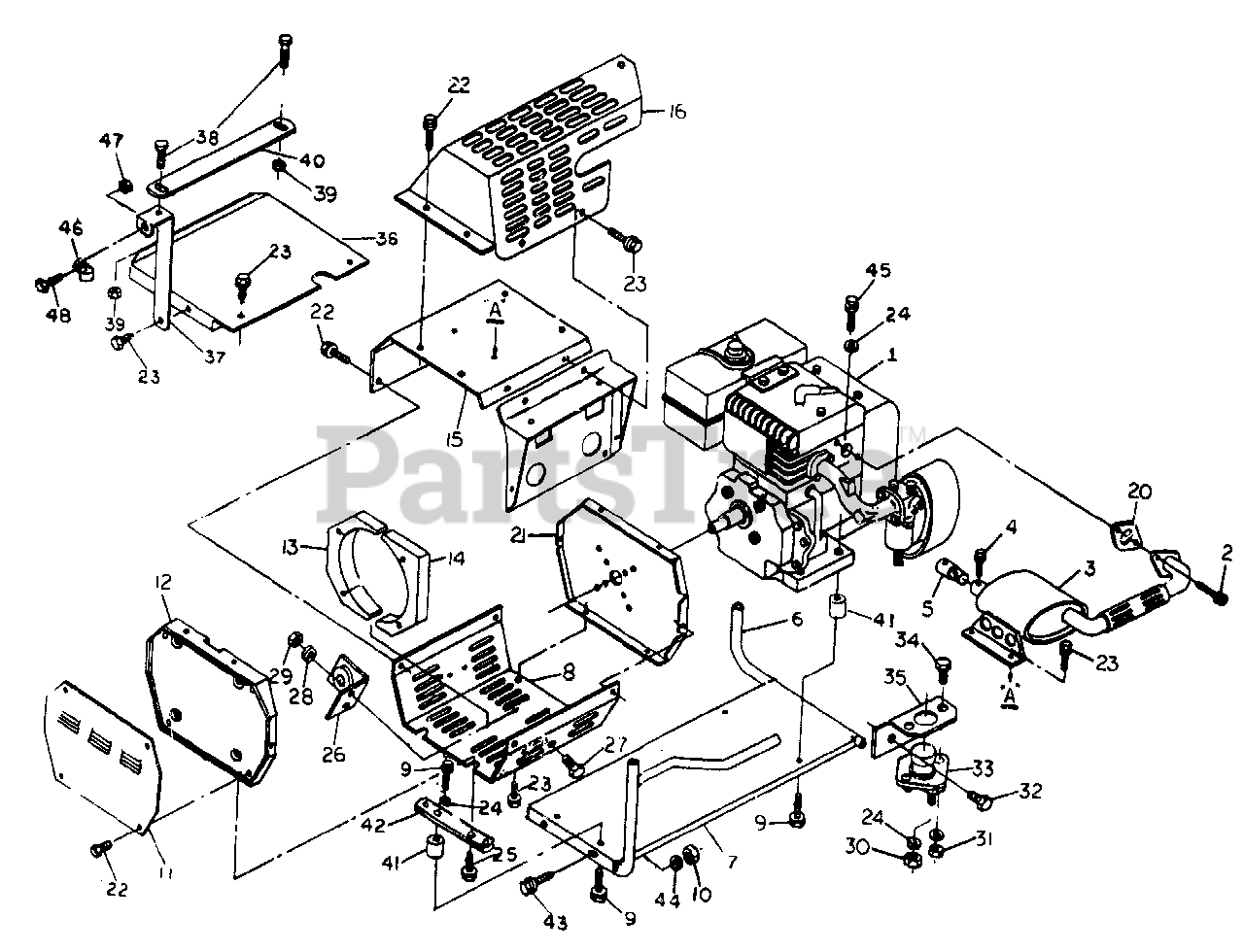

Sheet Metal No. 68373 - Manual Start Parts Diagram

  • Title

1

Briggs & Stratton 69647

ENGINE- 8 HP, Manual Start

Note: (Model 8751-2)

$

$

Currently unavailable

2

Briggs & Stratton 60706

CAPSCREW, Socket Head- 5/16"-18 x 3/4"

$

$

Currently unavailable

3

Briggs & Stratton 58196

MUFFLER, Exhaust

Note: (Includes Spark Arrestor)

$

$

Not available

4

Briggs & Stratton 22774

SCREW, Sheet Metal- No. 8 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 59604

SCREEN, Spark Arrestor

$

$

Currently unavailable

6

Briggs & Stratton 65115

CRADLE

$

$

Currently unavailable

7

Briggs & Stratton 65389

PAN, Base

$

$

Currently unavailable

8

Briggs & Stratton 58876B

WRAPPER, Lower Generator

$

$

Currently unavailable

9

Briggs & Stratton 22165

SCREW- 5/16"-18 x 1/2"
(Superseded to 5022165)

$80.99

$

Usually ships in 2-12 days

0

10

Briggs & Stratton 22127

NUT, Hex- 1/4"-20

$

$

Not available

11

Briggs & Stratton 61771

PANEL, End

$

$

Currently unavailable

12

Briggs & Stratton 61762

PANEL, End

$

$

Currently unavailable

13

Briggs & Stratton 58887B

BAFFLE, Generator Air (Left)

$

$

Currently unavailable

14

Briggs & Stratton 58887C

BAFFLE, Generator Air (Right)

$

$

Currently unavailable

15

Briggs & Stratton 61763B

WRAPPER, Upper Generator

$

$

Currently unavailable

16

Briggs & Stratton 58884

COVER, Muffler and Head

$

$

Currently unavailable

17

Briggs & Stratton 50190

SPACER- 1/8"
(Superseded to 50190GS)

$3.99

$

In Stock, only 1 left!

0

20

Briggs & Stratton 58894

GASKET, Exhaust
(Superseded to 58894GS)

$3.99

$

Usually ships in 2-12 days

0

21

Briggs & Stratton 60209

ADAPTER, Sheet Metal

$

$

Currently unavailable

22

Briggs & Stratton 59635

SCREW- No. 8 x 3/8"

$

$

Currently unavailable

23

Briggs & Stratton 56892

SCREW- No. 10-24 x 3/8"
(Superseded to 56892GS)

$3.49

$

Usually ships in 2-12 days

0

24

Briggs & Stratton 22129

WASHER, Lock- 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 59634

SCREW- 1/4" x 1"

$

$

Not available

26

Briggs & Stratton 45992

DIODE- Battery Charge
(Superseded to 5045992)

$11.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 36933

SCREW- No. 10-32 x 3/8"

$

$

Not available

28

Briggs & Stratton 22152

WASHER, Lock- No. 10
(Superseded to 5022152)

$32.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 22158

NUT, Hex - No. 10-32
(Superseded to 5022158)

$30.99

$

In Stock, Qty 20+

0

30

NUT, Hex - 5/16"-18

Note: Contact Generac for quantity required.

$

$

Not available

31

NUT, Hex - 1/4"-20

Note: Contact Generac for quantity required.

$

$

Not available

32

SCREW (Crimptite)- 1/4"-20 x 1/2"

Note: Contact Generac for quantity required.

$

$

Not available

33

CONTACTOR, Starter

Note: Contact Generac for quantity required.

$

$

Not available

34

SCREW- 1/4"-20 x 3/4"

Note: Contact Generac for quantity required.

$

$

Not available

35

BRACKET, Starter Contactor

Note: Contact Generac for quantity required.

$

$

Not available

36

TRAY, Battery

Note: Contact Generac for quantity required.

$

$

Not available

37

Briggs & Stratton 65391

BRACKET

$

$

Currently unavailable

38

CAPSCREW, Hex Head- 1/4"-20 x 1-1/4"

Note: Contact Generac for quantity required.

$

$

Not available

39

UNKNOWN

Note: Contact Generac for quantity required.

$

$

Not available

40

HOLDDOWN, Battery

Note: Contact Generac for quantity required.

$

$

Not available

41

Briggs & Stratton 44624

MOUNT, Vibration

$

$

Not available

42

Briggs & Stratton 65164

SUPPORT, Rear

$

$

Currently unavailable

43

Briggs & Stratton 51374

CAPSCREW- 1/4"-20 x 1-1/2"
(Superseded to 703234)

$4.49

$

In Stock, only 4 left!

0

44

Briggs & Stratton 22097

WASHER, Lock- 1/4"
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

45

Briggs & Stratton 22283

CAPSCREW- 5/16"-18 x 1-1/2"
(Superseded to 22283GS)

$1.99

$

Usually ships in 2-12 days

0

46

CLAMP

Note: Contact Generac for quantity required.

$

$

Not available

47

NUT, Lock- 1/4"-20

Note: Contact Generac for quantity required.

$

$

Not available

48

CAPSCREW- 1/4"-20 x 1/2"

Note: Contact Generac for quantity required.

$

$

Not available

49

WASHER, Flat- 1/4"

Note: Contact Generac for quantity required.

$

$

Not available
