G4050 (8751-2) - Generac 4,000 Watt Portable Generator Generator No. 68372 Parts Diagram

4,000 Watt Portable Generator

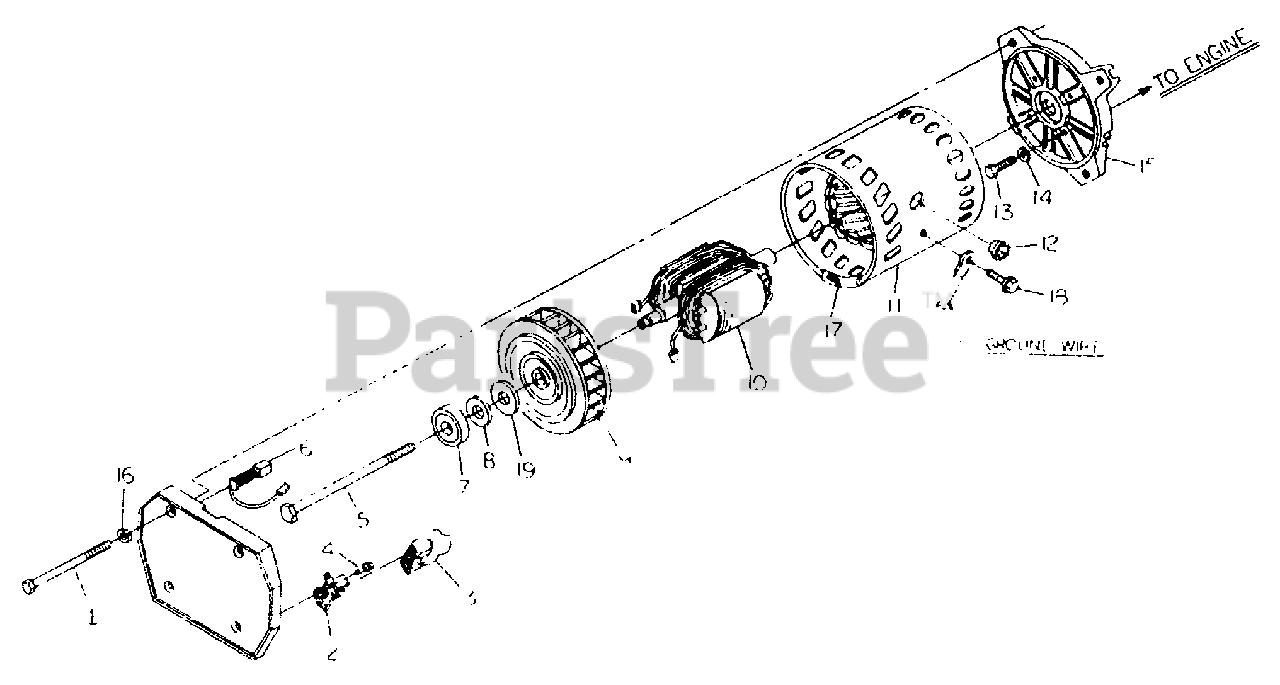

Generator No. 68372 Parts Diagram

  • Title

1

Briggs & Stratton 44395H

BOLT,

$

$

Currently unavailable

2

Briggs & Stratton 22694

HOUSING, Receptacle (White)
(Superseded to 22694GS)

$5.99

$

In Stock, only 1 left!

0

3

Briggs & Stratton 28293

RECTIFIER, Bridge

$

$

Currently unavailable

4

Briggs & Stratton 59636

SCREW - No. 4 x 3/8"

$

$

Currently unavailable

5

Briggs & Stratton 58885B

BOLT, Rotor

$

$

Currently unavailable

6

Briggs & Stratton 59606

BRUSH, (Red) - Positive

$

$

Not available

6

Briggs & Stratton 59606A

BRUSH - Neutral

$

$

Not available

7

Briggs & Stratton 24049

BEARING

$

$

Not available

8

Briggs & Stratton 58886

WASHER (Special)
(Superseded to 58886GS)

$5.99

$

Usually ships in 2-12 days

0

9

Briggs & Stratton 58868

FAN, Cooling

$

$

Currently unavailable

10

Briggs & Stratton 59625

ASSEMBLY, Rotor and Fan

$

$

Currently unavailable

11

Briggs & Stratton 61773

STATOR

$

$

Currently unavailable

12

Briggs & Stratton 23484D

BUSHING, Snap

$

$

Currently unavailable

13

Briggs & Stratton 22336

CAPSCREW, Hex Head - 5/16"-24 x 3/4"

$

$

Not available

14

Briggs & Stratton 22129

WASHER, Lock - 5/16"
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

15

Briggs & Stratton 60220F

HOUSING, Engine Adapter

$

$

Currently unavailable

16

Briggs & Stratton 22097

WASHER, Lock - 1/4"-20
(Superseded to 5022097)

$2.99

$

Usually ships in 2-12 days

0

17

Briggs & Stratton 56326

TRIM, Vinyl - 3 1/2" Long

$

$

Currently unavailable

18

Briggs & Stratton 24489

SCREW (Crimtite) - No. 10-24 x 3/8"

$

$

Currently unavailable

19

Briggs & Stratton 60221

WASHER, Felt
(Superseded to 60221GS)

$6.49

$

Usually ships in 2-12 days

0
