G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) RECOIL STARTER Parts Diagram

Engine, Made in Japan

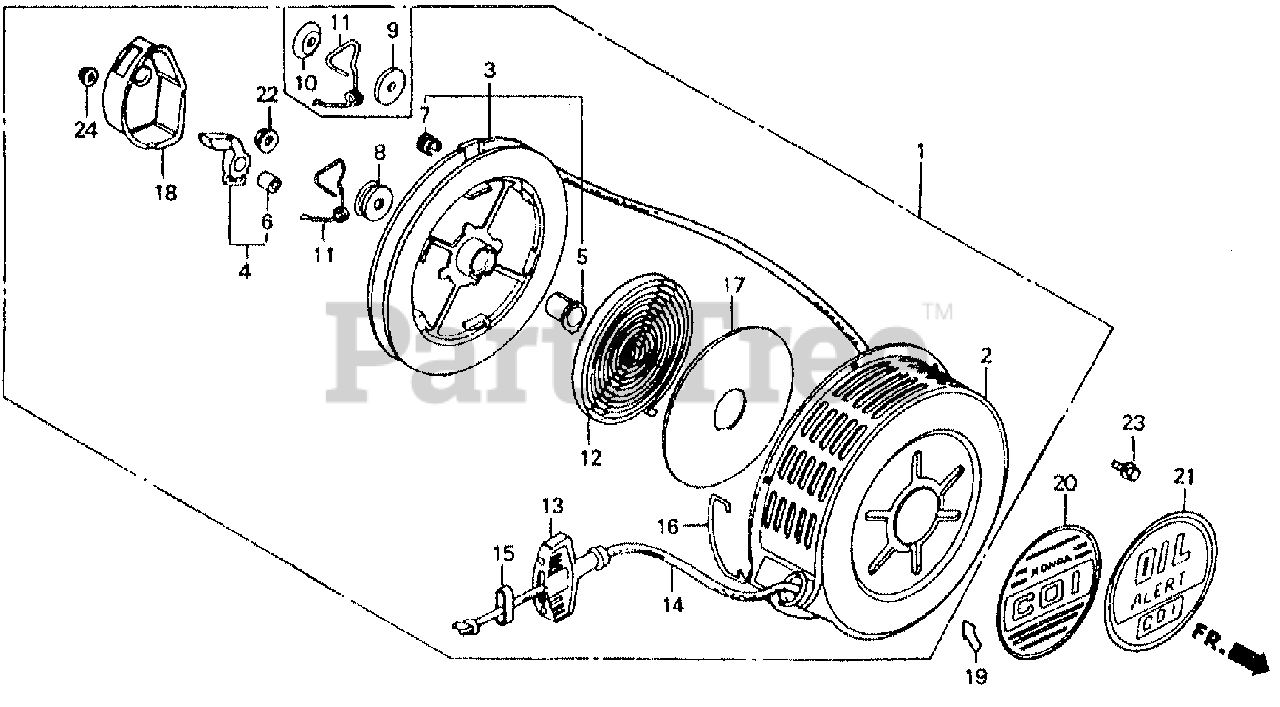

RECOIL STARTER Parts Diagram

  • Title

1

Honda 28400-890-030H

SEE PART DETAILS - SUP; STARTER ASSY., RECOIL *R8* (BRIGHT RED) (Honda Code 1049543).

$

$

Currently unavailable

2

Honda 28410-890-010H

SEE PART DETAILS - SUP; CASE, STARTER *R8* (BRIGHT RED) (Honda Code 1049550).

$

$

Currently unavailable

2

Honda 28410-890-010ZC

SEE PART DETAILS - PRI; CASE, STARTER *R8* (BRIGHT RED) (Honda Code 4469524).

$

$

Currently unavailable

3

Honda 28420-890-020

SEE PART DETAILS - PRI; REEL, STARTER (Honda Code 1049568).

$

$

Not available

4

Honda 28422-890-003

RATCHET (Honda Code 0755785).

$11.99

$

Usually ships in 3-6 days

0

5

Honda 28424-890-310

SEE PART DETAILS - PRI; BOSS, REEL (Honda Code 1049576).

$

$

Not available

6

Honda 28425-890-300

BUSH, RATCHET (Honda Code 0755819).

$4.49

$

Usually ships in 3-6 days

0

7

Honda 28427-883-300

BUSH, REEL STARTER (Honda Code 0743260).

$5.99

$

Usually ships in 3-6 days

0

9

Honda 28430-890-000

SEE PART DETAILS - PRI; PLATE, FRICTION (Honda Code 1049584).

$

$

Not available

10

Honda 28430-890-000

SEE PART DETAILS - PRI; PLATE, FRICTION (Honda Code 1049584).

$

$

Not available

11

Honda 28441-890-020

SEE PART DETAILS - PRI; SPRING, FRICTION (Honda Code 1049592).

$

$

Not available

12

Honda 28442-890-000

SPRING, RETURN (Honda Code 0755850).

$34.99

$

Usually ships in 3-6 days

0

13

Honda 28461-883-000

GRIP, STARTER (Honda Code 0636688).

$11.99

$

In Stock, only 1 left!

0

14

Honda 28462-890-000

SEE PART DETAILS - SUP; ROPE, STARTER (#6X64") (Honda Code 0755884).

Note: Use up to Engine SN 1006330.

$

$

Not available

14

Honda 28462-890-010

SEE PART DETAILS - SUP; ROPE, STARTER (#6X64") (Honda Code 0809061).

Note: Use from Engine SN 1006331.

$

$

Not available

15

Honda 28463-883-000

SUPPORT, GRIP (Honda Code 0636704).

$3.99

$

Usually ships in 3-6 days

0

16

Honda 28466-890-010

HOLDER, ROPE (Honda Code 0755892).

$

$

Currently unavailable

17

Honda 28467-890-010

SEE PART DETAILS - PRI; PLATE, SIDE (Honda Code 1049600).

$

$

Not available

18

Honda 28474-890-020

SEE PART DETAILS - PRI; COVER, REEL STARTER (Honda Code 1049618).

$

$

Not available

19

Honda 87103-883-000

MARK, STARTING (Honda Code 0803627).

$

$

Currently unavailable

20

Honda 87530-889-000

MARK, C.D.I. (Honda Code 0761171).

$

$

Not available

22

Honda 90115-659-003

NUT, SELF-LOCK (8MM) (Honda Code 0599480).

$0.99

$

In Stock, Qty 20+

0

23

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10) (Honda Code 2488443).

$2.49

$

In Stock, Qty 5

0

23

Honda 93481-06010-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X10) (Honda Code 0636944).
(Superseded to 93401-06010-08)

$2.49

$

In Stock, Qty 5

0

24

Honda 94050-06080

SEE PART DETAILS - PRI; NUT, FLANGE (6MM) (Honda Code 0612689).
