G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) FUEL TANK + FUEL VALVE Parts Diagram

Engine, Made in Japan

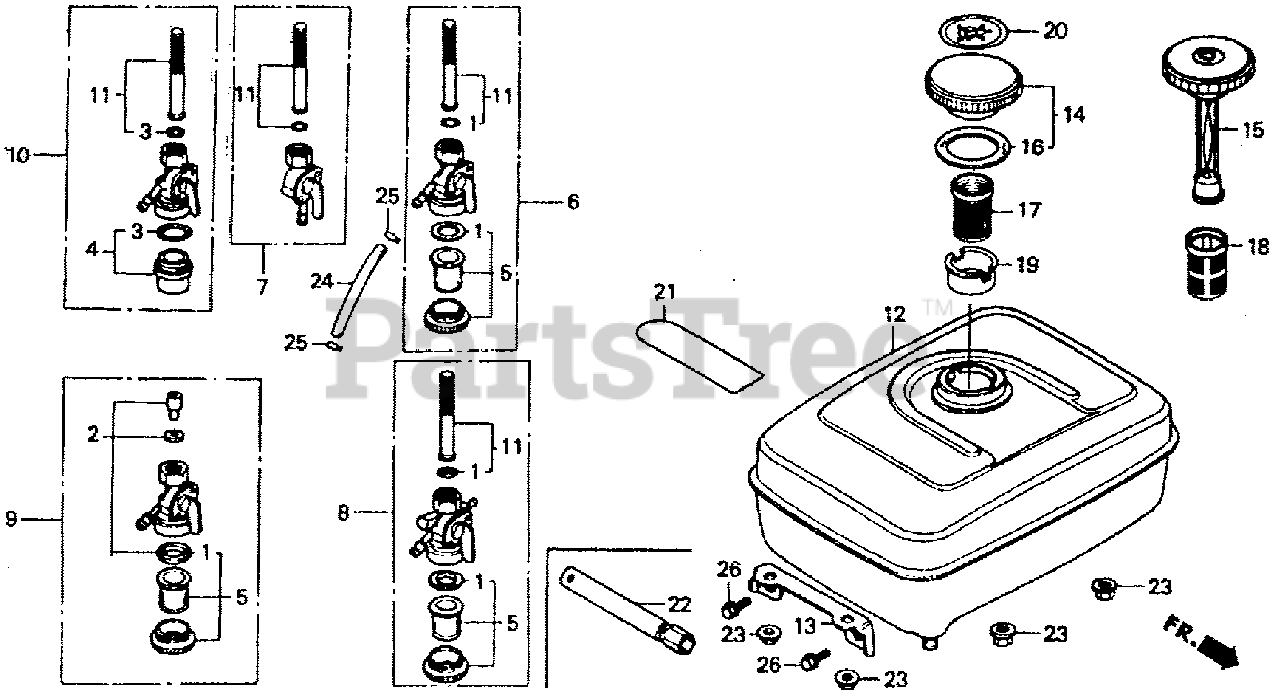

FUEL TANK + FUEL VALVE Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, VALVE (Honda Code 0649194).

$13.99

$

In Stock, only 1 left!

0

2

Honda 16080-890-691

GASKET SET, VALVE (NOT AVAILABLE) (Honda Code 1010248).

Note: (Optional).

$

$

Currently unavailable

3

Honda 16080-898-631

GASKET SET, PETCOCK (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED) (Honda Code 1176726).

Note: (Optional).

$30.99

$

Usually ships in 3-6 days

0

4

Honda 16081-471-831

CUP, FUEL STRAINER (Honda Code 1076439).

Note: (Optional).

$31.99

$

In Stock, only 1 left!

0

5

Honda 16081-883-015

SEE PART DETAILS - PRI; CUP SET, FUEL STRAINER (Honda Code 0965319).
(Superseded to 16081-471-831)

$31.99

$

In Stock, only 1 left!

0

6

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 3498722).

$

$

Currently unavailable

6

Honda 16950-883-045

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 7090269).
(Superseded to 16950-898-633)

$60.99

$

In Stock, only 1 left!

0

7

Honda 16950-883-662

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 0636498).
(Superseded to 16950-883-663)

Note: (Optional).

$49.99

$

In Stock, only 2 left!

0

7

Honda 16950-883-663

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 3521382).

Note: (Optional).

$49.99

$

In Stock, only 2 left!

0

8

Honda 16950-889-015

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 4060034).

Note: (Optional).

$

$

Not available

9

Honda 16950-890-692

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 3521762).
(Superseded to 16950-890-693)

Note: (Optional).

$

$

Not available

10

Honda 16950-898-631

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 1105709).
(Superseded to 16950-898-633)

Note: (Optional).

$60.99

$

In Stock, only 1 left!

0

10

Honda 16950-898-632

SEE PART DETAILS - SUP; PETCOCK ASSY. (Honda Code 3416468).
(Superseded to 16950-898-633)

Note: (Optional).

$60.99

$

In Stock, only 1 left!

0

10

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY. (Honda Code 7089162).

Note: (Optional).

$60.99

$

In Stock, only 1 left!

0

11

Honda 16952-883-005

SCREEN SET (Honda Code 0674580).

$20.99

$

In Stock, only 1 left!

0

12

Honda 17510-890-030ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 3780624).

$

$

Not available

12

Honda 17510-890-691ZA

SEE PART DETAILS - PRI; TANK, FUEL *NH31* (MCKINLEY WHITE) (Honda Code 4421723).

Note: (Optional).

$

$

Currently unavailable

13

Honda 17516-890-000

STAY, FUEL TANK (Honda Code 0760546).

$

$

Not available

14

Honda 17620-ZH7-013

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 4572392).

Note: Use from Engine SN 1085776.

$

$

Currently unavailable

14

Honda 17620-ZH7-023

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 5344817).
(Superseded to 17620-Z0T-305)

Note: Use from Engine SN 1085776.

$

$

Not available

14

Honda 17620-329-010

SEE PART DETAILS - SUP; CAP, FUEL FILLER (Honda Code 0803288).

Note: Use up to Engine SN 1085775.

$

$

Currently unavailable

14

Honda 17620-402-010

SEE PART DETAILS - PRI; CAP, FUEL FILLER (Honda Code 2892610).
(Superseded to 17620-402-020)

Note: Use up to Engine SN 1085775.

$21.99

$

In Stock, only 1 left!

0

16

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (Honda Code 2820587).
(Superseded to 17631-329-013)

$

$

Not available

17

Honda 17672-880-000

FILTER, FUEL (Honda Code 0474759).

$14.99

$

Usually ships in 3-6 days

0

19

Honda 17673-893-000

SEE PART DETAILS - PRI; HOLDER, FUEL FILTER (Honda Code 0788109).

$15.99

$

In Stock, only 2 left!

0

21

Honda 87522-883-660

SEE PART DETAILS - PRI; MARK, CAUTION (ENGLISH/FRENCH)(SPANISH) (Honda Code 0636811).

$5.49

$

In Stock, Qty 9

0

22

Honda 89216-829-010

SEE PART DETAILS - PRI; WRENCH, SPARK PLUG (Honda Code 0171660).

$4.99

$

Usually ships in 3-6 days

0

23

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 20+

0

24

Honda 95001-45003-60M

BULK HOSE, FUEL (4.5X3000) (4.5X85) (Honda Code 5137104).

$54.99

$

In Stock, only 3 left!

0

25

Honda 95002-02080

CLIP, TUBE (B8) (Honda Code 0250647).

$2.49

$

In Stock, Qty 20+

0

26

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

$2.49

$

In Stock, only 3 left!

0
