G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) FAN COVER + SIDE PLATE + COMBINATION SWITCH (1) Parts Diagram

Engine, Made in Japan

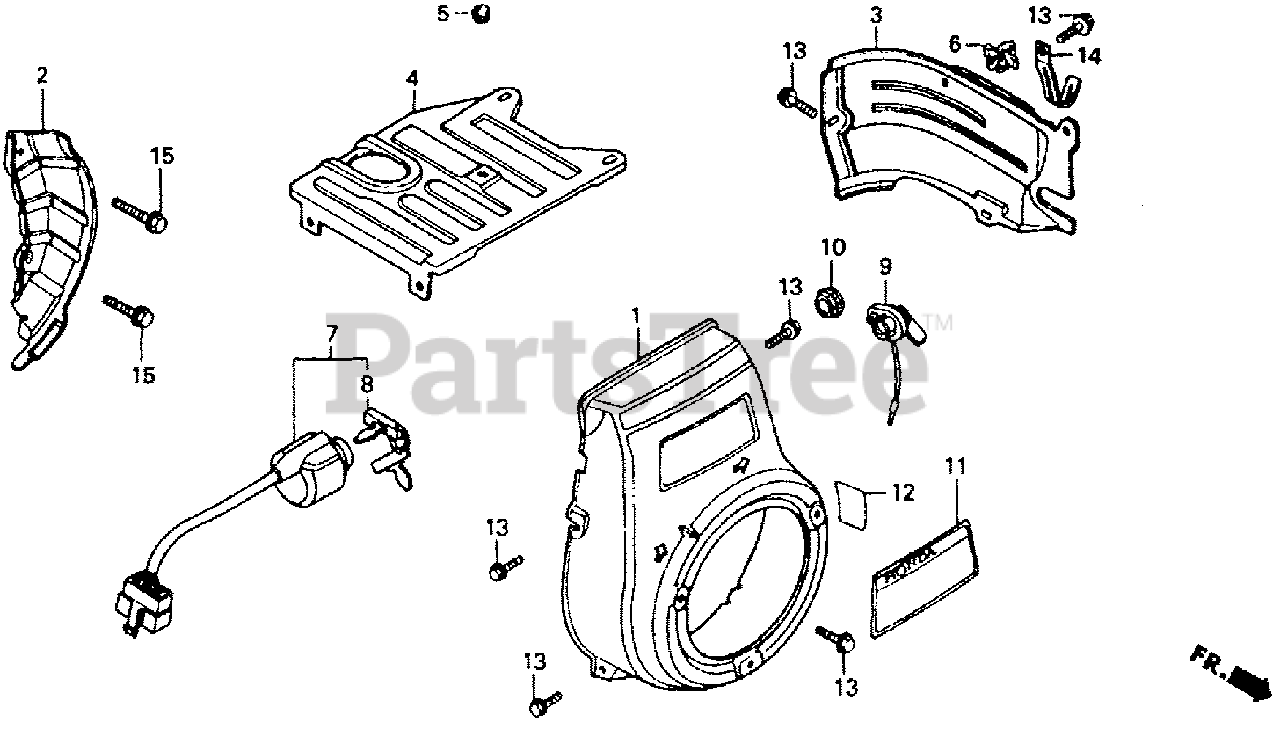

FAN COVER + SIDE PLATE + COMBINATION SWITCH (1) Parts Diagram

  • Title

1

Honda 19610-890-000ZA

COVER, FAN *R8* (BRIGHT RED) (Honda Code 3754264).

$

$

Not available

2

Honda 19611-890-000

PLATE, SIDE (Honda Code 0760652).

$

$

Not available

3

Honda 19631-890-010H

SEE PART DETAILS - SUP; SHROUD *R8* (BRIGHT RED) (Honda Code 1008440).

$

$

Currently unavailable

4

Honda 19641-890-010H

SEE PART DETAILS - PRI; COVER, TOP *R8* (BRIGHT RED) (Honda Code 1008457).

$

$

Currently unavailable

4

Honda 19641-890-010ZB

COVER, TOP *R8* (BRIGHT RED) (Honda Code 4184214).

$

$

Not available

5

Honda 19643-883-010

GROMMET, TOP COVER (Honda Code 0635904).

$2.99

$

Usually ships in 3-6 days

0

6

Honda 30701-883-000

CLIP, IGNITION WIRE (8MM) (Honda Code 0636787).

$3.99

$

In Stock, only 1 left!

0

7

Honda 35100-ZA0-013

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION (Honda Code 3634904).
(Superseded to 35100-ZA0-023)

Note: (Optional).

$111.99

$

Usually ships in 3-6 days

0

8

Honda 35111-880-003

SEE PART DETAILS - SUP; KEY (Honda Code 0485706).
(Superseded to 35111-880-013)

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0

9

Honda 36100-887-630

SEE PART DETAILS - SUP; SWITCH ASSY., ENGINE STOP (Honda Code 0761106).

$

$

Currently unavailable

11

Honda 87521-890-602

SEE PART DETAILS - PRI; EMBLEM (ENGLISH/FRENCH/SPANISH) (Honda Code 1010883).

$

$

Not available

12

Honda 87594-883-000

MARK, OIL CAUTION (Honda Code 0761205).

$

$

Not available

13

Honda 90013-883-000

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (CT200) (Honda Code 0636845).

$1.99

$

In Stock, Qty 20+

0

14

Honda 91406-671-000

CLIP, WIRE HARNESS (Honda Code 0621367).

$21.99

$

Usually ships in 3-6 days

0

15

Honda 95701-08020-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X20) (Honda Code 2440477).

$2.49

$

Usually ships in 3-6 days

0
