G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) CRANKCASE COVER (1) Parts Diagram

Engine, Made in Japan

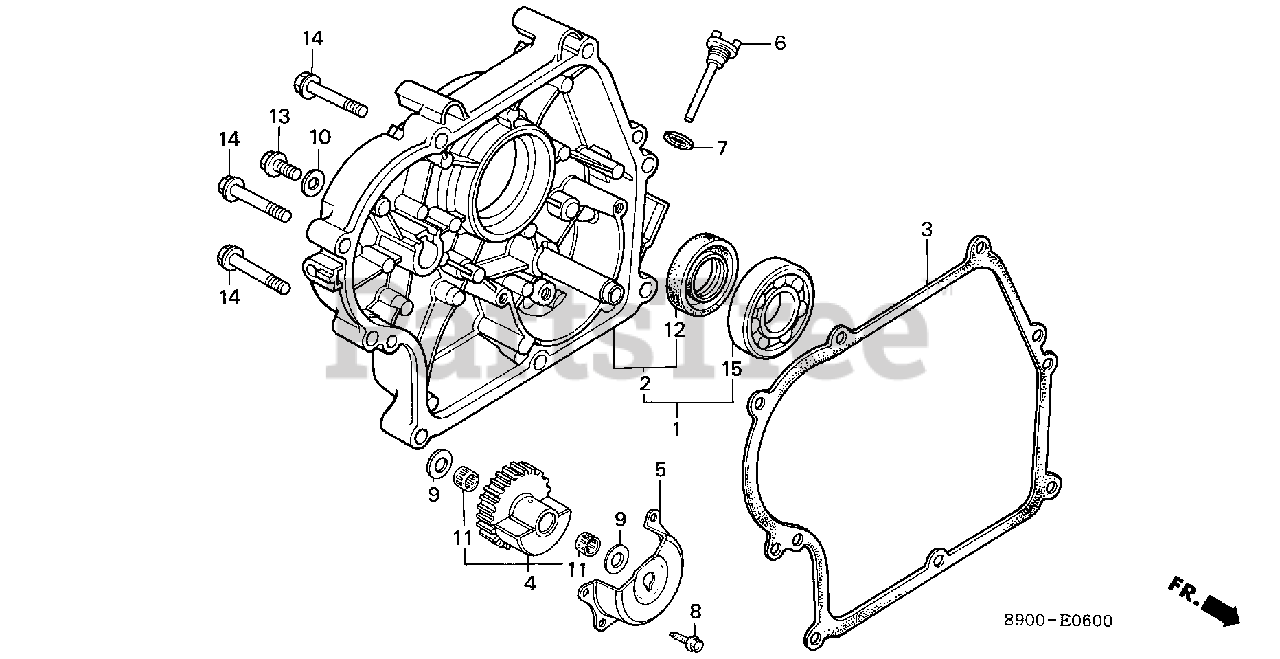

CRANKCASE COVER (1) Parts Diagram

  • Title

1

Honda 11300-890-721

COVER ASSY., CRANKCASE

Note: Use up to Engine SN 1085859.

$

$

Not available

2

Honda 11300-890-721

COVER ASSY., CRANKCASE

Note: Use from Engine SN 1085860.

$

$

Not available

3

Honda 11381-890-850

GASKET, CASE COVER

$8.99

$

Usually ships in 3-6 days

0

4

Honda 13350-890-010

WEIGHT, BALANCER

$136.99

$

Usually ships in 3-6 days

0

5

Honda 13354-890-000

COVER, BALANCER

$

$

Currently unavailable

6

Honda 15620-890-000

CAP, OIL FILLER (YELLOW)

Note: (Optional).

$

$

Not available

8

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

Note: Use up to Engine SN 1039236.

$2.49

$

In Stock, Qty 20+

0

8

Honda 90061-161-000

BOLT, FLANGE (6X16)

Note: Use from Engine SN 1039237.

$4.49

$

Usually ships in 3-6 days

0

9

Honda 90451-166-000

WASHER, THRUST (15MM)

$

$

Not available

10

Honda 90488-700-000

WASHER A (8MM)

$1.99

$

Usually ships in 3-6 days

0

11

Honda 91021-890-000

BEARING, NEEDLE

$27.99

$

Usually ships in 3-6 days

0

12

Honda 91201-890-003

OIL SEAL (30X46X8)

$12.99

$

In Stock, Qty 6

0

13

Honda 95701-08012-08

BOLT, FLANGE (8X12)

Note: Use from Engine SN 1086090.

$2.49

$

Usually ships in 3-6 days

0

13

Honda 95701-08014-08

BOLT, FLANGE (8X14)

Note: Use up to Engine SN 1086089.

$2.49

$

Usually ships in 3-6 days

0

14

Honda 95700-08045-08

BOLT, FLANGE (8X45)
(Superseded to 95701-08045-08)

$3.49

$

In Stock, only 3 left!

0

14

Honda 95701-08045-08

BOLT, FLANGE (8X45)

$3.49

$

In Stock, only 3 left!

0

15

Honda 96100-62060-00

SEE PART DETAILS - PRI; BEARING, RADIAL BALL (6206)

Note: Use up to Engine SN 1085859.

$33.99

$

In Stock, only 3 left!

0
