G400 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096409) AIR CLEANER (1) Parts Diagram

Engine, Made in Japan

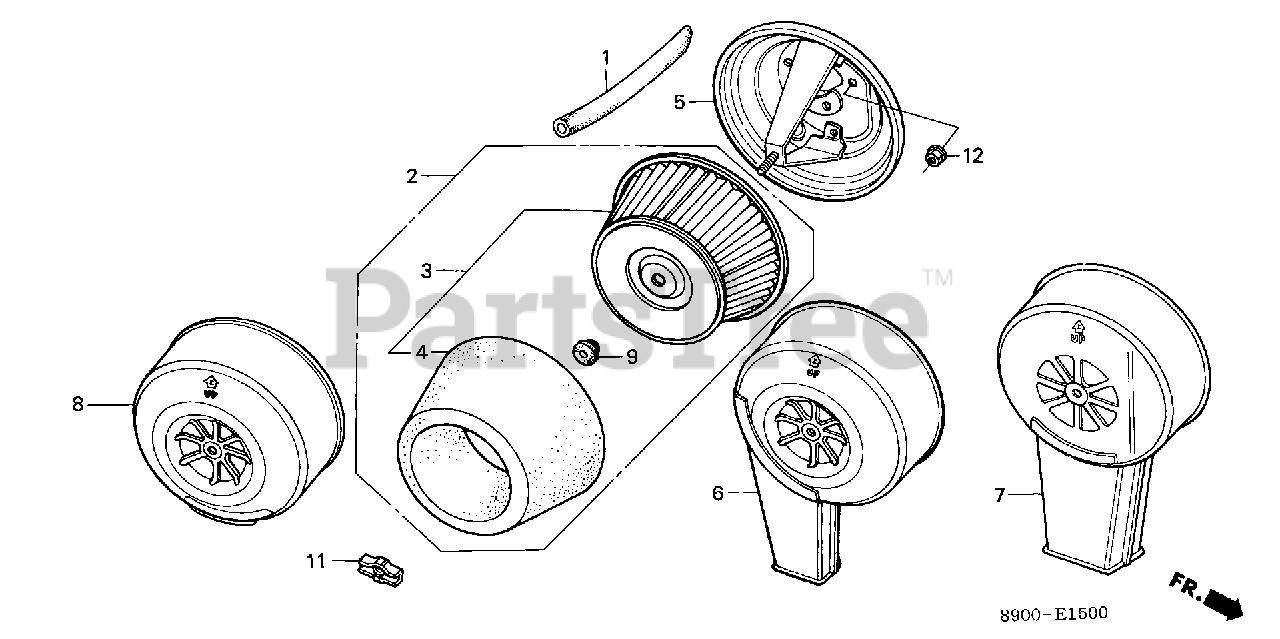

AIR CLEANER (1) Parts Diagram

  • Title

1

Honda 15721-890-010

TUBE, BREATHER

$5.99

$

Usually ships in 3-6 days

0

3

Honda 17210-890-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER
(Superseded to 17210-890-305)

Note: (Optional). Use up to Engine SN 1092589.

$49.99

$

In Stock, only 1 left!

0

3

Honda 17210-890-505

SEE PART DETAILS - PRI; ELEMENT, AIR CLEANER
(Superseded to 17210-890-305)

Note: Use from Engine SN 1092590.

$49.99

$

In Stock, only 1 left!

0

4

Honda 17218-890-505

SEE PART DETAILS - PRI; FILTER (OUTER)
(Superseded to 17218-890-305)

Note: Use from Engine SN 1092590.

$

$

Not available

5

Honda 17220-890-003

HOUSING, AIR CLEANER

Note: (Optional). Use up to Engine SN 1074849.

$70.99

$

Usually ships in 3-6 days

0

5

Honda 17220-890-600

HOUSING, AIR CLEANER (NOT AVAILABLE)

Note: Use from Engine SN 1074850.

$

$

Currently unavailable

6

Honda 17230-890-731

COVER, AIR CLEANER

Note: (Optional). Use up to Engine SN 1074849.

$

$

Not available

7

Honda 17230-890-740

COVER, AIR CLEANER

Note: (Optional). Use from Engine SN 1074850.

$90.99

$

Usually ships in 3-6 days

0

8

Honda 17231-890-003

COVER, AIR CLEANER

Note: (Optional). Use up to Engine SN 1074849.

$75.99

$

Usually ships in 3-6 days

0

8

Honda 17231-890-600

COVER, AIR CLEANER

Note: Use from Engine SN 1074850.

$

$

Currently unavailable

9

Honda 17232-890-010

GROMMET, AIR CLEANER

Note: (Optional). Use up to Engine SN 1092589.

$6.99

$

Usually ships in 3-6 days

0

9

Honda 17232-890-010

GROMMET, AIR CLEANER

Note: Use from Engine SN 1092590.

$6.99

$

Usually ships in 3-6 days

0

11

Honda 90203-PB2-000

NUT, AIR CLEANER COVER (DACRO COATING)

$10.99

$

In Stock, only 3 left!

0

12

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
