G400 QJ0 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096247) FAN COVER + SIDE PLATE (2) Parts Diagram

Engine, Made in Japan

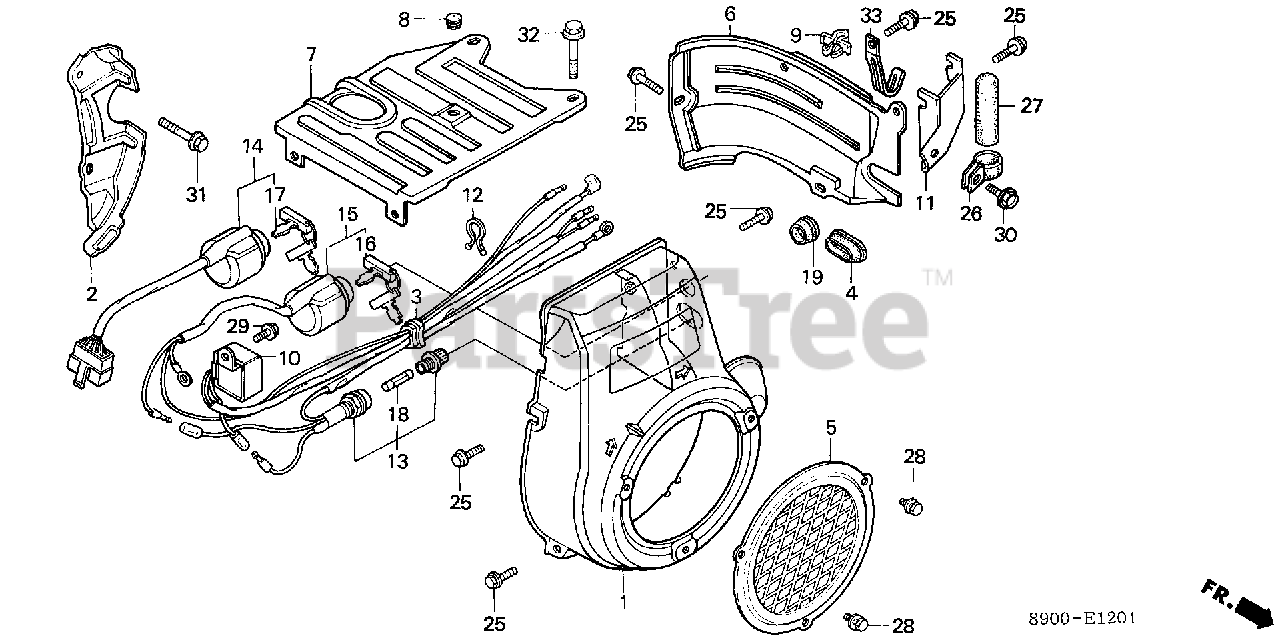

FAN COVER + SIDE PLATE (2) Parts Diagram

  • Title

1

Honda 19610-890-801ZA

COVER, FAN *R8* (BRIGHT RED)

$

$

Not available

2

Honda 19611-890-800

PLATE, SIDE

Note: (Optional).

$

$

Not available

3

Honda 19613-889-800

GROMMET, SWITCH CORD

Note: (Optional).

$

$

Not available

5

Honda 19620-890-800ZA

PROTECTOR, FAN COVER *R8* (BRIGHT RED)

Note: (Optional).

$

$

Not available

6

Honda 19631-890-010ZA

SHROUD *R8* (BRIGHT RED)

$

$

Not available

7

Honda 19641-890-010ZB

COVER, TOP *R8* (BRIGHT RED)

$

$

Not available

8

Honda 19643-883-010

GROMMET, TOP COVER

$2.99

$

Usually ships in 3-6 days

0

9

Honda 30701-883-000

SEE PART DETAILS - PRI; CLIP, IGNITION WIRE (8MM)

$3.99

$

In Stock, only 1 left!

0

10

Honda 31700-890-801

RECTIFIER, SILICON (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

11

Honda 32112-890-000

STAY, CLAMP

Note: (Optional).

$

$

Not available

12

Honda 90630-751-000

SEE PART DETAILS - PRI; CLIP, PURSE LOCK

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

13

Honda 32130-890-003

HOLDER, FUSE (1.5A) (NOT AVAILABLE)

$

$

Currently unavailable

14

Honda 35100-ZA0-013

SEE PART DETAILS - SUP; SWITCH ASSY., COMBINATION
(Superseded to 35100-ZA0-023)

$111.99

$

Usually ships in 3-6 days

0

14

Honda 35100-ZA0-023

SEE PART DETAILS - PRI; SWITCH ASSY., COMBINATION

$111.99

$

Usually ships in 3-6 days

0

15

Honda 35100-890-801

SWITCH ASSY., COMBINATION

Note: (Optional).

$

$

Not available

16

Honda 35111-862-003

KEY

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

17

Honda 35111-880-013

SEE PART DETAILS - PRI; KEY

Note: (Optional).

$11.99

$

In Stock, only 3 left!

0

18

Honda 38201-883-003

FUSE (1.5A) (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

25

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

26

Honda 91405-890-780

CLIP, CORD

Note: (Optional).

$

$

Not available

27

Honda 91408-890-780

TUBE, CORD (25MM)

Note: (Optional).

$6.99

$

Usually ships in 3-6 days

0

28

Honda 93401-06010-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X10)

Note: (Optional).

$2.49

$

In Stock, Qty 5

0

29

Honda 95700-06010-08

BOLT, FLANGE (6X10)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

29

Honda 95701-06010-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10)

Note: (Optional).

$2.49

$

In Stock, Qty 20+

0

30

Honda 95700-06012-08

SEE PART DETAILS - SUP; BOLT, FLANGE (6X12)

Note: (Optional).

$

$

Currently unavailable

30

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12)

Note: (Optional).

$2.49

$

In Stock, only 1 left!

0

31

Honda 95701-08020-08

BOLT, FLANGE (8X20)

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0
