G400 QJ0 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096247) CAMSHAFT Parts Diagram

Engine, Made in Japan

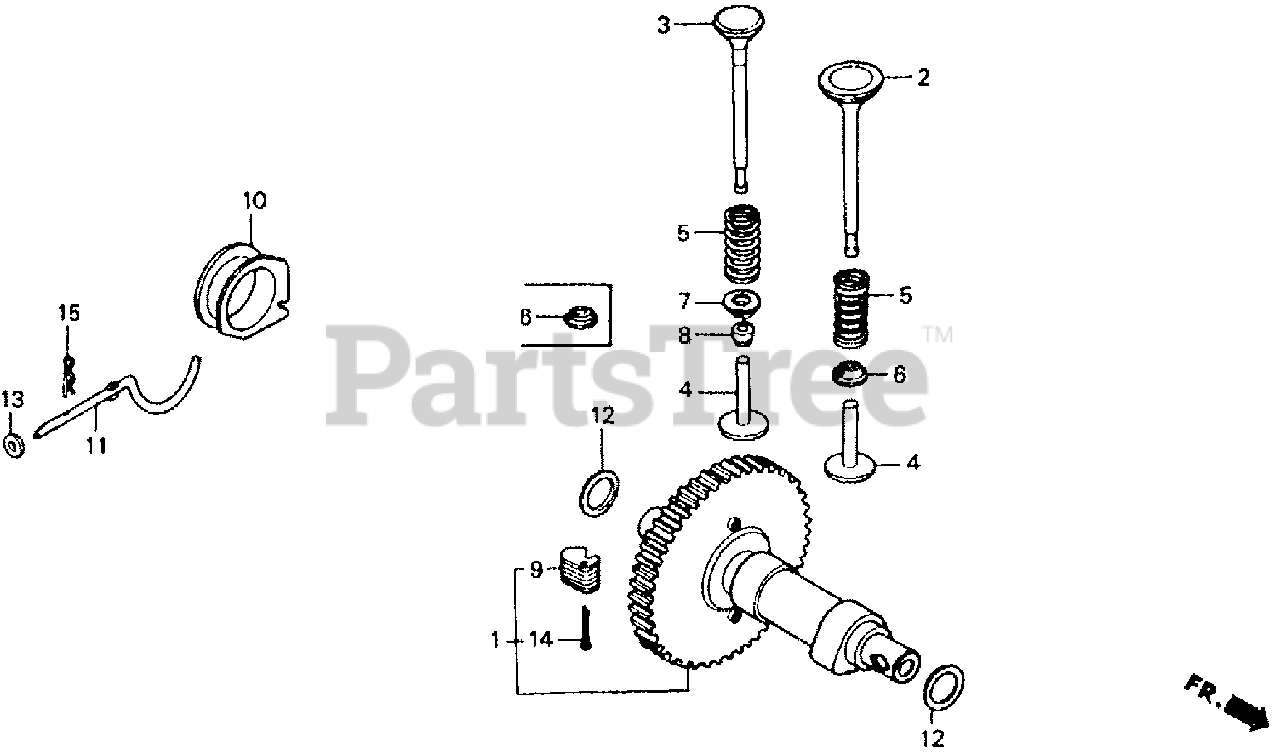

CAMSHAFT Parts Diagram

  • Title

1

Honda 14110-890-040

SEE PART DETAILS - PRI; CAMSHAFT ASSY. (Honda Code 1010214).

$

$

Currently unavailable

2

Honda 14711-890-000

VALVE, IN. (Honda Code 0754937).

$41.99

$

In Stock, only 1 left!

0

3

Honda 14721-ZA1-000

SEE PART DETAILS - PRI; VALVE, EX. (Honda Code 1237791).

Note: Use from Engine SN 1095190.

$70.99

$

Usually ships in 3-6 days

0

3

Honda 14721-890-000

VALVE, EX. (Honda Code 0754952).

Note: Use up to Engine SN 1095189.

$41.99

$

Usually ships in 3-6 days

0

3

Honda 14721-890-600

SEE PART DETAILS - SUP; VALVE, EX. (Honda Code 1049501).

Note: Use from Engine SN 1095190.

$70.99

$

Usually ships in 3-6 days

0

4

Honda 14732-889-000

LIFTER, VALVE (45.89MM) (Honda Code 0754960).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14737-889-000

LIFTER, VALVE (46.04MM) (Honda Code 0754978).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14742-889-000

LIFTER, VALVE (46.19MM) (Honda Code 0754986).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

4

Honda 14747-889-000

LIFTER, VALVE (46.34MM) (Honda Code 0754994).

Note: (Optional).

$22.99

$

Usually ships in 3-6 days

0

5

Honda 14751-890-000

SPRING, VALVE (Honda Code 0755009).

$4.49

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).

Note: Use up to Engine SN 1095189.

$13.99

$

Usually ships in 3-6 days

0

6

Honda 14771-883-305

SEE PART DETAILS - PRI; RETAINER, VALVE SPRING (Honda Code 1196468).

Note: Use from Engine SN 1095190.

$13.99

$

Usually ships in 3-6 days

0

7

Honda 14771-889-000

RETAINER, VALVE SPRING (Honda Code 1038132).

Note: Use from Engine SN 1095190.

$4.49

$

Usually ships in 3-6 days

0

8

Honda 14781-890-000

ROTATOR, EX. VALVE (Honda Code 1049519).

Note: Use from Engine SN 1095190.

$

$

Not available

9

Honda 16511-883-300

WEIGHT, GOVERNOR (Honda Code 0636316).

$2.49

$

Usually ships in 3-6 days

0

10

Honda 16531-890-000

SLIDER, GOVERNOR (Honda Code 0755306).

$37.99

$

Usually ships in 3-6 days

0

11

Honda 16541-889-610

SHAFT, GOVERNOR (Honda Code 0808071).

$13.99

$

Usually ships in 3-6 days

0

12

Honda 90452-883-000

WASHER, THRUST (18MM) (Honda Code 0636928).

$3.49

$

Usually ships in 3-6 days

0

13

Honda 94101-06800

SEE PART DETAILS - PRI; WASHER, PLAIN (6MM) (Honda Code 0345900).

$0.99

$

In Stock, Qty 5

0

14

Honda 94201-30450

SEE PART DETAILS - PRI; PIN, COTTER (3.0X45) (Honda Code 0058453).

$1.49

$

Usually ships in 3-6 days

0

15

Honda 94251-10400

PIN, LOCK (10MM) (Honda Code 0761270).

$1.99

$

Usually ships in 3-6 days

0
