G400 QB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096247) MUFFLER Parts Diagram

Engine, Made in Japan

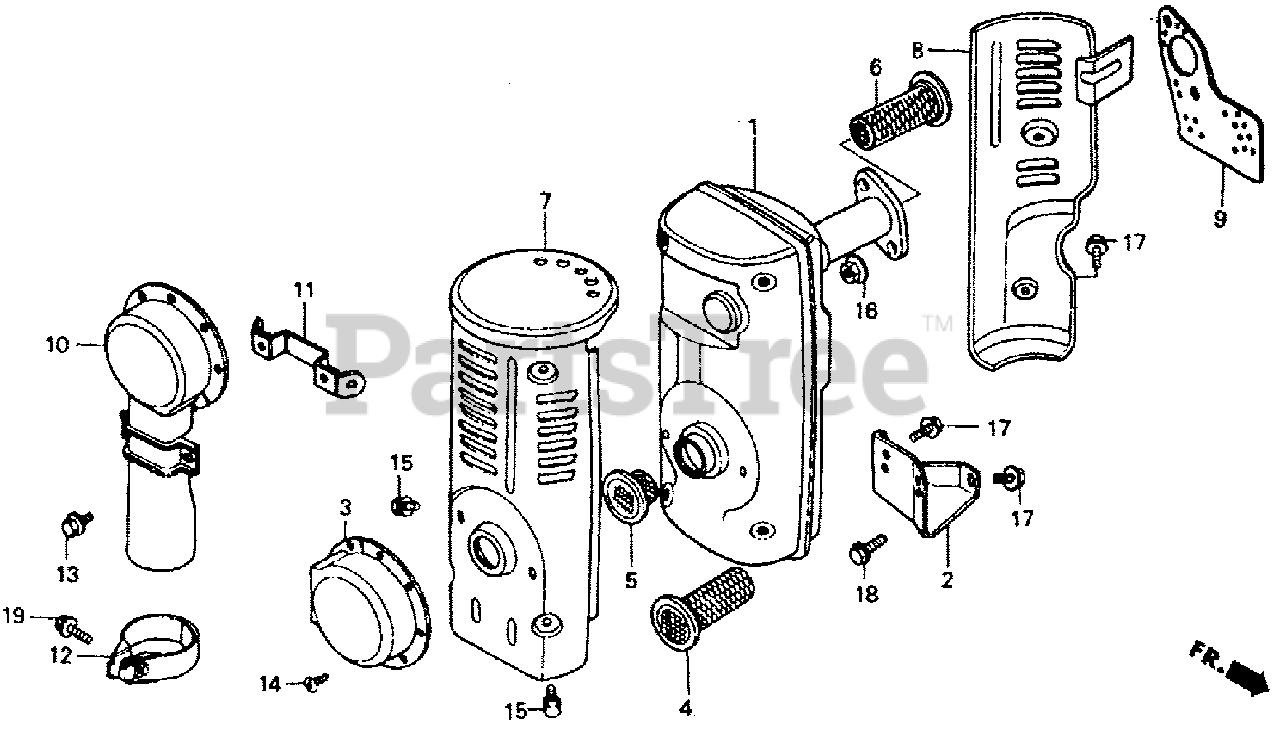

MUFFLER Parts Diagram

  • Title

1

Honda 18310-890-735

SEE PART DETAILS - PRI; MUFFLER (Honda Code 1012525).

$

$

Not available

2

Honda 18320-890-731

SEE PART DETAILS - PRI; STAY, MUFFLER (Honda Code 1008432).

$

$

Not available

3

Honda 18331-889-010

SEE PART DETAILS - PRI; DEFLECTOR, MUFFLER (Honda Code 0943266).

$17.99

$

Usually ships in 3-6 days

0

4

Honda 18335-890-000

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 0923219).

Note: (Optional). Use from Engine SN 1071060.

$

$

Not available

5

Honda 18336-890-000

FLANGE, BAFFLE (Honda Code 1010479).

Note: (Optional). Use from Engine SN 1086918.

$

$

Not available

6

Honda 18335-890-000

SEE PART DETAILS - PRI; ARRESTER, SPARK (Honda Code 0923219).

Note: (Optional). Use up to Engine SN 1071059.

$

$

Not available

7

Honda 18361-890-730

PROTECTOR A, MUFFLER (Honda Code 0755538).

$

$

Not available

8

Honda 18365-890-730

PROTECTOR B, MUFFLER (Honda Code 0755546).

Note: (Optional).

$

$

Not available

9

Honda 18381-890-306

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4434510).
(Superseded to 18381-890-800)

$

$

Not available

9

Honda 18381-890-800

SEE PART DETAILS - PRI; GASKET, MUFFLER (Honda Code 4646170).

$

$

Not available

14

Honda 90183-671-003

SCREW, TAPPING (4X8) (Honda Code 0752345).
(Superseded to 90002-ZG0-003)

$1.49

$

Usually ships in 3-6 days

0

15

Honda 90003-890-000

BOLT-WASHER (6X10) (Honda Code 0943274).

Note: Use from Engine SN 1095940.

$

$

Currently unavailable

15

Honda 92100-06008-0B

SEE PART DETAILS - PRI; BOLT, HEX. (6X8) (Honda Code 4129730).

Note: Use up to Engine SN 1095939.

$

$

Currently unavailable

15

Honda 92101-06008-0B

BOLT, HEX. (6X8) (Honda Code 4562096).

Note: Use up to Engine SN 1095939.

$2.49

$

Usually ships in 3-6 days

0

16

Honda 94050-08080

SEE PART DETAILS - PRI; NUT, FLANGE (8MM) (Honda Code 0468447).

$1.49

$

In Stock, Qty 16

0

17

Honda 95701-06010-00

SEE PART DETAILS - PRI; BOLT, FLANGE (6X10) (Honda Code 2410876).

$1.99

$

In Stock, Qty 13

0

18

Honda 95701-08014-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X14) (Honda Code 2411015).

Note: Use up to Engine SN 1086831.

$2.49

$

Usually ships in 3-6 days

0

18

Honda 95701-08016-08

SEE PART DETAILS - PRI; BOLT, FLANGE (8X16) (Honda Code 2374767).

Note: Use from Engine SN 1086832.

$2.49

$

In Stock, only 3 left!

0
