G400 QB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096247) CYLINDER HEAD + CYLINDER BARREL Parts Diagram

Engine, Made in Japan

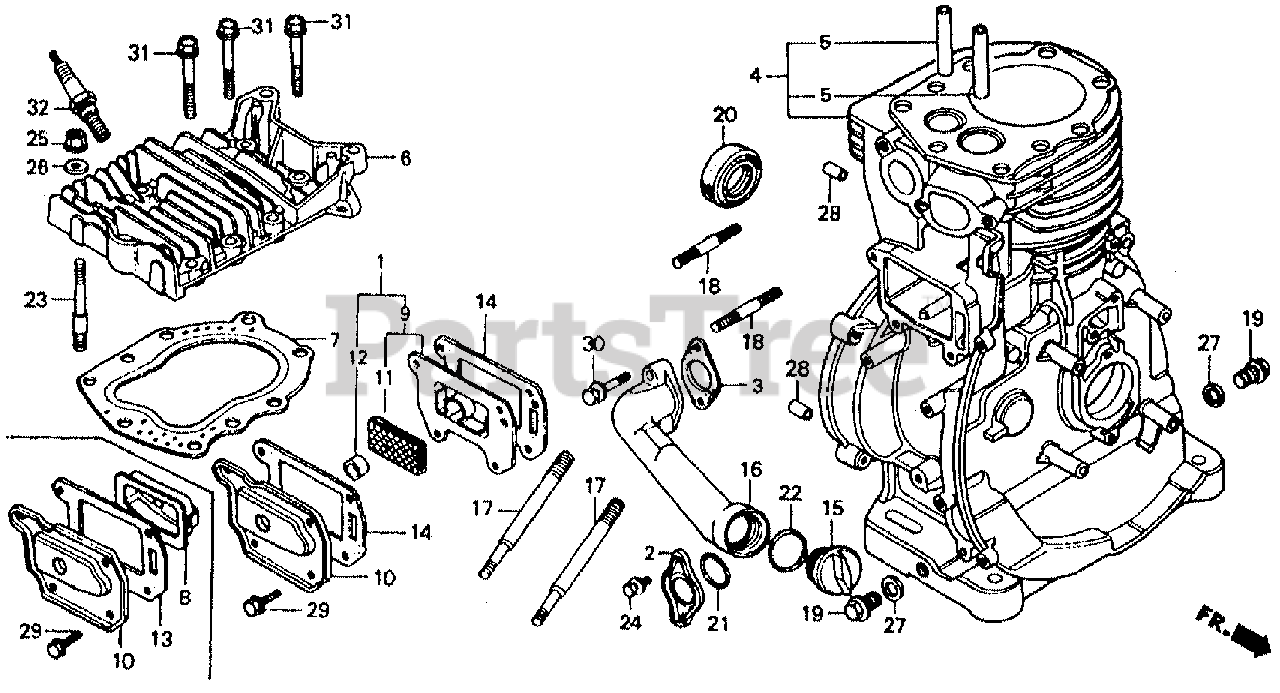

CYLINDER HEAD + CYLINDER BARREL Parts Diagram

  • Title

2

Honda 11210-822-010

COVER, OIL PAN (Honda Code 0397539).

$3.99

$

Usually ships in 3-6 days

0

3

Honda 11211-822-306

SEE PART DETAILS - PRI; GASKET, OIL PAN (Honda Code 4574539).

Note: (Optional).

$

$

Not available

4

Honda 12100-890-325

SEE PART DETAILS - SUP; CYLINDER (CRANKSHAFT P.T.O.) (Honda Code 0760066).

Note: Use up to Engine SN 1095397.

$

$

Currently unavailable

4

Honda 12100-890-335

SEE PART DETAILS - PRI; CYLINDER (CRANKSHAFT P.T.O.) (NOT AVAILABLE) (Honda Code 1049493).

Note: Use from Engine SN 1095398.

$

$

Currently unavailable

5

Honda 12134-890-305

GUIDE, VALVE (Honda Code 0760082).

Note: (Optional).

$9.49

$

Usually ships in 3-6 days

0

6

Honda 12221-890-305

CYLINDER HEAD (NOT AVAILABLE) (Honda Code 0760108).

$

$

Not available

7

Honda 12281-890-306

SEE PART DETAILS - SUP; GASKET, CYLINDER HEAD (Honda Code 4212957).

$

$

Not available

7

Honda 12281-891-610

SEE PART DETAILS - PRI; GASKET, CYLINDER HEAD (Honda Code 2427466).

$

$

Not available

8

Honda 12360-889-000

CASE, BREATHER (Honda Code 0754556).

$

$

Currently unavailable

8

Honda 12360-889-010

CASE, BREATHER (Honda Code 1083476).

$

$

Not available

10

Honda 12361-890-000

COVER, TAPPET (Honda Code 0754572).

$

$

Not available

13

Honda 12375-ZA1-000

SEE PART DETAILS - PRI; GASKET, TAPPET COVER (Honda Code 1237734).

$

$

Not available

15

Honda 15611-921-000

SEE PART DETAILS - PRI; CAP, OIL (Honda Code 0282806).

Note: (Optional).

$13.99

$

Usually ships in 3-6 days

0

16

Honda 15632-890-010

SEE PART DETAILS - PRI; PIPE, OIL (Honda Code 0964916).

Note: (Optional).

$

$

Not available

17

Honda 90042-890-010

SEE PART DETAILS - PRI; BOLT, STUD (8X110) (Honda Code 0761213).

Note: Use up to Engine SN 1091034.

$8.49

$

Usually ships in 3-6 days

0

17

Honda 90042-890-680

BOLT, STUD (8X104) (Honda Code 1009067).

Note: Use from Engine SN 1091035.

$8.99

$

Usually ships in 3-6 days

0

18

Honda 90047-883-000

BOLT, STUD (8X35) (Honda Code 0636894).

$4.99

$

Usually ships in 3-6 days

0

19

Honda 90131-883-000

SEE PART DETAILS - SUP; BOLT, DRAIN PLUG (Honda Code 0636902).

$

$

Not available

19

Honda 90131-896-650

SEE PART DETAILS - PRI; BOLT, DRAIN PLUG (Honda Code 1986231).

$4.99

$

In Stock, Qty 12

0

20

Honda 91201-890-003

OIL SEAL (30X46X8) (Honda Code 0756494).

$11.99

$

In Stock, Qty 5

0

21

Honda 91301-028-000

O-RING (27X2.0) (Honda Code 0013284).

$3.99

$

Usually ships in 3-6 days

0

22

Honda 91301-805-000

SEE PART DETAILS - PRI; O-RING (26X2.7) (Honda Code 0065185).

Note: (Optional).

$4.99

$

In Stock, Qty 11

0

24

Honda 93412-06012-08

SEE PART DETAILS - PRI; BOLT-WASHER (6X12) (Honda Code 3811023).

$

$

Currently unavailable

24

Honda 93482-06012-08

SEE PART DETAILS - SUP; BOLT-WASHER (6X12) (Honda Code 0995845).

$

$

Currently unavailable

27

Honda 94109-12000

SEE PART DETAILS - PRI; WASHER, DRAIN PLUG (12MM) (Honda Code 0171868).

$1.49

$

In Stock, Qty 20+

0

28

Honda 94301-08140

SEE PART DETAILS - PRI; PIN A, DOWEL (8X14) (Honda Code 0069310).

$2.99

$

In Stock, Qty 8

0

29

Honda 95700-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 0252254).

$

$

Currently unavailable

29

Honda 95701-06012-08

SEE PART DETAILS - PRI; BOLT, FLANGE (6X12) (Honda Code 2170793).

$2.49

$

In Stock, only 1 left!

0

30

Honda 95700-06025-08

BOLT, FLANGE (6X25) (Honda Code 0258731).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

30

Honda 95701-06025-08

BOLT, FLANGE (6X25) (Honda Code 2259711).

Note: (Optional).

$2.49

$

Usually ships in 3-6 days

0

31

Honda 95730-10055-08

BOLT, FLANGE (10X55) (Honda Code 0761320).

$2.99

$

Usually ships in 3-6 days

0

32

Honda 98076-54710

SPARK PLUG (B-4H) (Honda Code 0316927).

Note: (Optional).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54716

SEE PART DETAILS - PRI; SPARK PLUG (BR-4HS) (NGK) (Honda Code 0649830).

Note: (Optional).

$3.49

$

In Stock, Qty 10

0

32

Honda 98076-54911

SPARK PLUG (BP-4HS-10) (NGK) (Honda Code 0761338).

$3.49

$

Usually ships in 3-6 days

0

32

Honda 98076-54914

SEE PART DETAILS - SUP; SPARK PLUG (BPR-4HS-10) (NGK) (Honda Code 0761346).
(Superseded to 98076-54917)

Note: (Optional).

$3.49

$

In Stock, only 3 left!

0

32

Honda 98076-54917

SEE PART DETAILS - PRI; SPARK PLUG (BPR4HS-10) (NGK) (Honda Code 4161691).

Note: (Optional).

$3.49

$

In Stock, only 3 left!

0

32

Honda 98076-54919

SPARK PLUG (BP4HS-10) (NGK) (Honda Code 4161659).

$3.49

$

Usually ships in 3-6 days

0
