G400 QB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096247) CONTROL Parts Diagram

Engine, Made in Japan

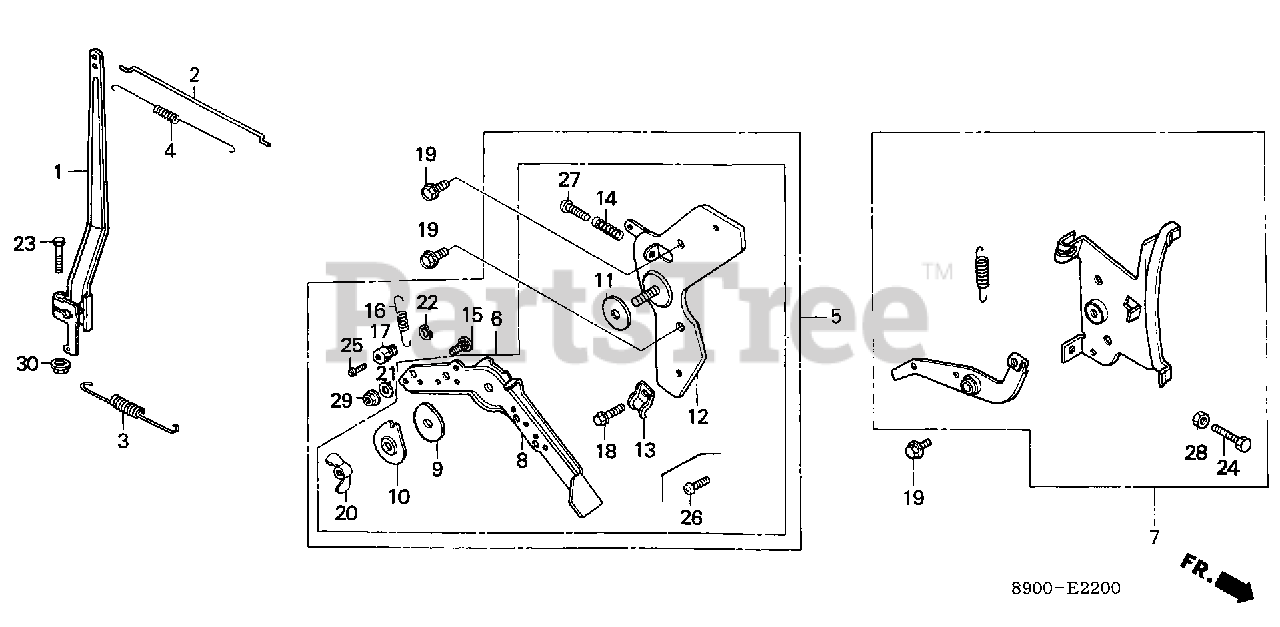

CONTROL Parts Diagram

  • Title

1

Honda 16551-890-010

ARM, GOVERNOR

$18.99

$

Usually ships in 3-6 days

0

2

Honda 16555-889-010

ROD, GOVERNOR

$4.99

$

Usually ships in 3-6 days

0

3

Honda 16561-890-010

SPRING, GOVERNOR (NOT AVAILABLE)

Note: Use up to Engine SN 1074839.

$

$

Not available

3

Honda 16561-890-020

SPRING, GOVERNOR

Note: Use from Engine SN 1090966.

$5.49

$

Usually ships in 3-6 days

0

3

Honda 16561-890-601

SPRING, GOVERNOR

Note: Use from Engine SN 1074840 to 1090965.

$

$

Not available

4

Honda 16562-889-000

SPRING, THROTTLE RETURN

Note: Use up to Engine SN 1026946.

$

$

Currently unavailable

4

Honda 16562-889-010

SPRING, THROTTLE RETURN (NOT AVAILABLE)

Note: Use from Engine SN 1026947.

$

$

Not available

6

Honda 16570-883-W10

SEE PART DETAILS - PRI; CONTROL ASSY.

Note: (Optional).

$47.99

$

Usually ships in 3-6 days

0

8

Honda 16571-883-300

SEE PART DETAILS - SUP; LEVER, CONTROL

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

8

Honda 16571-883-310

SEE PART DETAILS - PRI; LEVER, CONTROL

Note: (Optional).

$23.99

$

Usually ships in 3-6 days

0

9

Honda 16574-883-300

SPRING, LEVER

Note: (Optional).

$4.49

$

In Stock, only 1 left!

0

10

Honda 16575-883-300

WASHER, CONTROL LEVER

Note: (Optional).

$4.49

$

Usually ships in 3-6 days

0

11

Honda 16576-883-300

SPACER, CONTROL LEVER

Note: (Optional).

$5.49

$

Usually ships in 3-6 days

0

12

Honda 16581-883-320

BASE, CONTROL LEVER

Note: (Optional).

$

$

Not available

13

Honda 16582-883-300

HOLDER, CONTROL CABLE

Note: (Optional).

$4.49

$

In Stock, only 1 left!

0

14

Honda 16584-883-300

SPRING, CONTROL ADJUSTING

Note: (Optional).

$4.99

$

In Stock, Qty 7

0

19

Honda 90013-883-000

BOLT, FLANGE (6X12) (CT200)

$1.99

$

In Stock, Qty 20+

0

20

Honda 90352-883-003

WINGNUT (6MM)

Note: (Optional).

$

$

Not available

23

Honda 92101-06025-0H

BOLT, HEX. (6X25)

$2.49

$

Usually ships in 3-6 days

0

26

Honda 93500-05010-0A

SCREW, PAN (5X10)

$1.49

$

In Stock, Qty 8

0

27

Honda 93500-05022-0A

SCREW, PAN (5X22)

Note: (Optional).

$0.99

$

Usually ships in 3-6 days

0

30

Honda 94050-06080

NUT, FLANGE (6MM)

$0.99

$

In Stock, only 3 left!

0
