G400 QB6 (G400) - Honda Engine, Made in Japan (SN: G400-1000001 - G400-1096247) CARBURETOR (1) Parts Diagram

Engine, Made in Japan

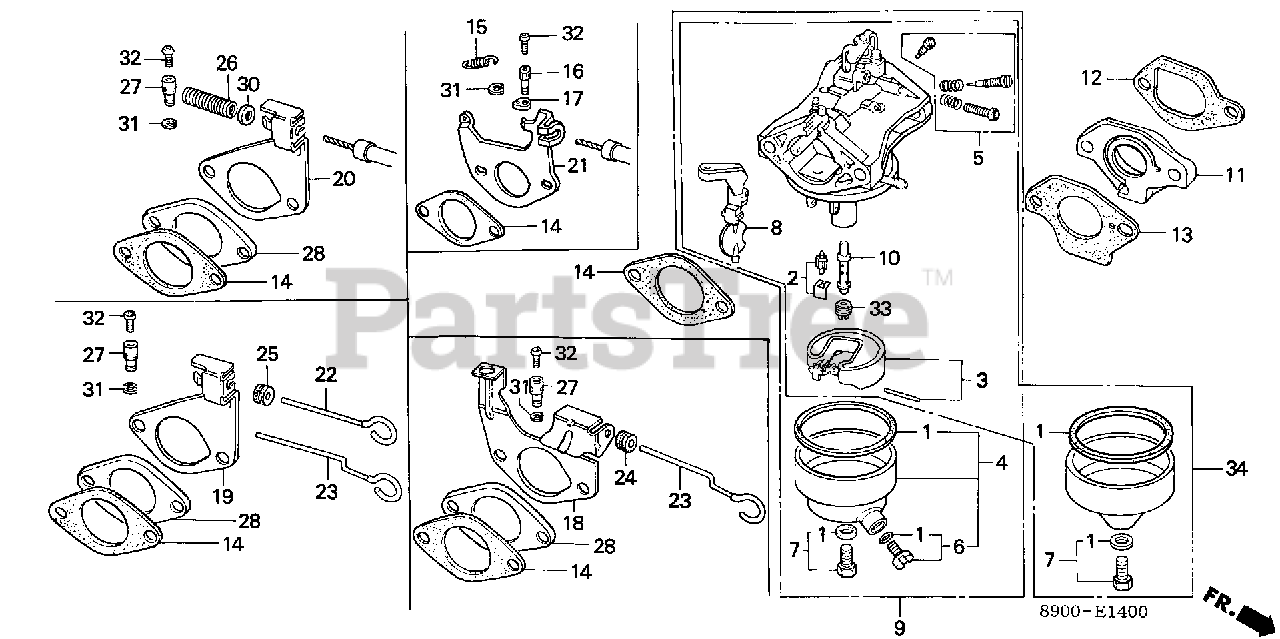

CARBURETOR (1) Parts Diagram

  • Title

1

Honda 16010-883-015

GASKET SET

Note: Use up to Engine SN BB35C A.

$12.99

$

In Stock, only 2 left!

0

2

Honda 16011-KCK-910

SEE PART DETAILS - PRI; VALVE SET, FLOAT

Note: Use up to Engine SN BB35C A.

$43.99

$

In Stock, only 2 left!

0

2

Honda 16011-382-004

SEE PART DETAILS - SUP; VALVE SET, FLOAT (CARBURETOR NO.)
(Superseded to 16011-KCK-910)

Note: Use up to Engine SN BB35C A.

$43.99

$

In Stock, only 2 left!

0

3

Honda 16013-890-015

FLOAT SET (CARBURETOR NO.)

Note: Use up to Engine SN BB35C A.

$

$

Not available

4

Honda 16015-896-005

CHAMBER SET, FLOAT (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use up to Engine SN 1090965.

$

$

Currently unavailable

5

Honda 16016-728-631

SCREW SET A (CARBURETOR NO.)

Note: (Optional). Use from Engine SN BB35A B to BB35A B.

$

$

Currently unavailable

5

Honda 16016-883-661

SEE PART DETAILS - SUP; SCREW SET A (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35A A.

$

$

Currently unavailable

5

Honda 16016-890-015

SEE PART DETAILS - PRI; SCREW SET A (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use from Engine SN BB35C A to BB35C A.

$

$

Not available

7

Honda 16028-ZE0-005

SEE PART DETAILS - SUP; SCREW SET (CARBURETOR NO.)
(Superseded to 16028-ZK7-S91)

Note: Use up to Engine SN BB35C A.

$13.99

$

In Stock, only 1 left!

0

7

Honda 16028-ZK7-S91

SEE PART DETAILS - PRI; SCREW SET

Note: Use up to Engine SN BB35C A.

$13.99

$

In Stock, only 1 left!

0

8

Honda 16044-890-005

CHOKE SET (CARBURETOR NO.)

Note: Use up to Engine SN BB35C A.

$

$

Not available

10

Honda 16166-890-005

NOZZLE, MAIN (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35A B.

$

$

Not available

10

Honda 16166-890-731

NOZZLE, MAIN (CARBURETOR NO.) (NOT AVAILABLE)

Note: Use from Engine SN BB35C A to BB35C A.

$

$

Not available

11

Honda 16211-890-000

INSULATOR, CARBURETOR

Note: Use up to Engine SN 1090965.

$13.99

$

Usually ships in 3-6 days

0

12

Honda 16212-890-306

SEE PART DETAILS - SUP; GASKET, INSULATOR
(Superseded to 16212-890-800)

Note: Use up to Engine SN 1090965.

$

$

Not available

12

Honda 16212-890-800

SEE PART DETAILS - PRI; GASKET, INSULATOR

Note: Use up to Engine SN 1090965.

$

$

Not available

13

Honda 16221-890-306

SEE PART DETAILS - SUP; GASKET, CARBURETOR
(Superseded to 16221-890-800)

Note: Use up to Engine SN 1090965.

$2.99

$

In Stock, only 4 left!

0

13

Honda 16221-890-800

SEE PART DETAILS - PRI; GASKET, CARBURETOR

Note: Use up to Engine SN 1090965.

$2.99

$

In Stock, only 4 left!

0

14

Honda 16269-890-306

SEE PART DETAILS - SUP; GASKET, AIR CLEANER
(Superseded to 16269-890-800)

Note: Use up to Engine SN 1090965.

$1.99

$

In Stock, only 3 left!

0

14

Honda 16269-890-800

SEE PART DETAILS - PRI; GASKET, AIR CLEANER

Note: Use up to Engine SN 1090965.

$1.99

$

In Stock, only 3 left!

0

19

Honda 16598-889-731

STAY, CHOKE CONTROL (NOT AVAILABLE)

Note: Use up to Engine SN 1090965.

$

$

Not available

22

Honda 16611-889-000

ROD, CHOKE CONTROL (NOT AVAILABLE)

Note: Use up to Engine SN 1090965.

$

$

Not available

25

Honda 16613-890-000

GROMMET, CHOKE ROD

Note: Use up to Engine SN 1090965.

$2.99

$

Usually ships in 3-6 days

0

27

Honda 16617-890-010

HOLDER, CABLE

Note: Use up to Engine SN 1090965.

$8.49

$

In Stock, only 1 left!

0

28

Honda 17229-890-690

SPACER, AIR CLEANER (NOT AVAILABLE)

Note: Use from Engine SN 1068173 to 1090965.

$

$

Currently unavailable

31

Honda 90605-230-000

CIRCLIP (5MM)

Note: Use up to Engine SN 1090965.

$3.99

$

In Stock, only 3 left!

0

32

Honda 93500-04008-0A

SCREW, PAN (4X8)

Note: Use up to Engine SN 1090965.

$1.49

$

In Stock, only 4 left!

0

33

Honda 99101-124-0880

JET, MAIN (#88) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35C A.

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-0900

JET, MAIN (#90) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35C A.

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-0920

JET, MAIN (#92) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35A B.

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-0950

JET, MAIN (#95) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35C A.

$12.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-0980

JET, MAIN (#98) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35C A.

$12.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-1000

JET, MAIN (#100) (CARBURETOR NO.)

Note: (Optional). Use up to Engine SN BB35C A.

$11.99

$

Usually ships in 3-6 days

0

33

Honda 99101-124-1020

JET, MAIN (#102) (CARBURETOR NO.)

Note: Use from Engine SN BB35C A to BB35C A.

$11.99

$

Usually ships in 3-6 days

0

34

Honda 16100-890-005

CARBURETOR ASSY. (BB35A A) (NOT AVAILABLE)

Note: (Optional). Use up to Engine SN 1059152.

$

$

Currently unavailable

34

Honda 16100-890-015

CARBURETOR ASSY. (BB35A B) (NOT AVAILABLE)

Note: (Optional). Use from Engine SN 1059153 to 1074849.

$

$

Currently unavailable

34

Honda 16100-890-075

CARBURETOR ASSY. (BB35C G)

Note: Use from Engine SN 1074850 to 1090965.

$

$

Not available
