G400 K1 VB6 (G400) - Honda Engine, Made in Japan (SN: G400-1200001 - G400-1519048) FUEL TANK + FUEL PETCOCK (1) Parts Diagram

Engine, Made in Japan

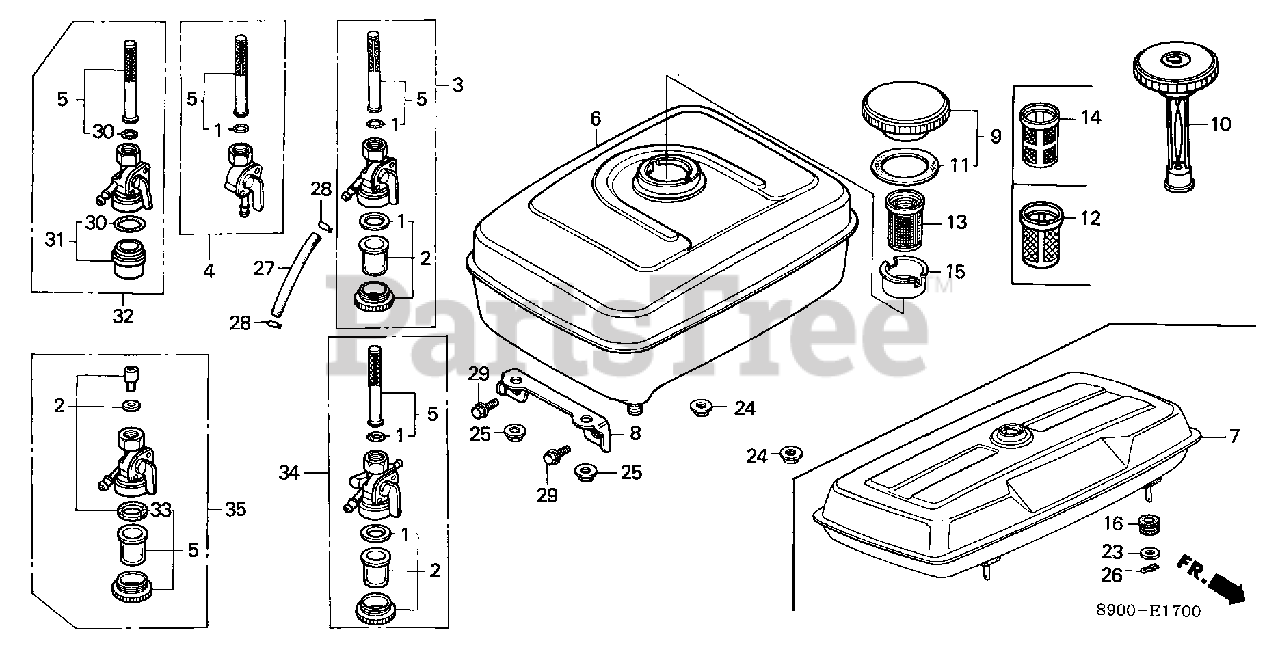

FUEL TANK + FUEL PETCOCK (1) Parts Diagram

  • Title

1

Honda 16080-883-005

GASKET SET, PETCOCK

$12.99

$

In Stock, only 1 left!

0

2

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

$30.99

$

In Stock, only 1 left!

0

2

Honda 16081-883-015

SEE PART DETAILS - SUP; CUP SET, FUEL STRAINER
(Superseded to 16081-471-831)

$30.99

$

In Stock, only 1 left!

0

3

Honda 16950-883-035

SEE PART DETAILS - SUP; PETCOCK ASSY.

Note: (Optional).

$

$

Currently unavailable

3

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY.

Note: (Optional).

$57.99

$

In Stock, only 1 left!

0

4

Honda 16950-883-663

SEE PART DETAILS - PRI; PETCOCK ASSY.

Note: (Optional).

$45.99

$

In Stock, only 2 left!

0

5

Honda 16952-883-005

SCREEN SET

$18.99

$

In Stock, only 1 left!

0

6

Honda 17510-890-030ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use up to Engine SN 1439148.

$

$

Not available

6

Honda 17510-890-030ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: Use from Engine SN 1439149.

$

$

Not available

6

Honda 17510-890-690ZA

TANK, FUEL *NH31* (MCKINLEY WHITE)

Note: (Optional).

$

$

Currently unavailable

8

Honda 17516-890-000

STAY, FUEL TANK

$

$

Not available

9

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: Use up to Engine SN 1480644.

$

$

Not available

9

Honda 17620-ZH7-023

CAP, FUEL FILLER (BLACK)
(Superseded to 17620-Z0T-305)

Note: (Optional). Use from Engine SN 1480645.

$

$

Not available

10

Honda 17630-890-692

GAUGE, FUEL (ENGLISH)

Note: (Optional). Use from Engine SN 1207984 to 1477277.

$

$

Not available

10

Honda 17630-890-692

GAUGE, FUEL (ENGLISH)

Note: (Optional). Use from Engine SN 1477278.

$

$

Not available

11

Honda 17631-329-003

SEE PART DETAILS - PRI; GASKET, FUEL FILLER CAP (39X58X3)
(Superseded to 17631-329-013)

Note: (Optional).

$

$

Not available

13

Honda 17672-880-000

FILTER, FUEL

$13.99

$

Usually ships in 3-6 days

0

14

Honda 17672-890-810

FILTER, FUEL

Note: (Optional). Use from Engine SN 1207984.

$

$

Not available

15

Honda 17673-893-000

HOLDER, FUEL FILTER

$14.99

$

Usually ships in 3-6 days

0

24

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 19

0

25

Honda 94050-08080

NUT, FLANGE (8MM)

$1.49

$

In Stock, Qty 19

0

27

Honda 95001-45003-50M

SEE PART DETAILS - PRI; BULK HOSE, FUEL (4.5X3000) (4.5X85)

$82.99

$

In Stock, only 1 left!

0

28

Honda 95002-02080

CLIP, TUBE (B8)

$2.49

$

In Stock, Qty 11

0

29

Honda 95701-08016-08

BOLT, FLANGE (8X16)

Note: (Optional).

$2.49

$

In Stock, only 3 left!

0

30

Honda 16080-898-631

O-RING (CONTAINS 1 LARGE & 1 SMALL. USE AS NEEDED)

Note: (Optional).

$29.99

$

Usually ships in 3-6 days

0

31

Honda 16081-471-831

SEE PART DETAILS - PRI; CUP, FUEL STRAINER

Note: (Optional).

$30.99

$

In Stock, only 1 left!

0

32

Honda 16950-898-632

SEE PART DETAILS - SUP; PETCOCK ASSY.
(Superseded to 16950-898-633)

Note: (Optional).

$57.99

$

In Stock, only 1 left!

0

32

Honda 16950-898-633

SEE PART DETAILS - PRI; PETCOCK ASSY.

Note: (Optional).

$57.99

$

In Stock, only 1 left!

0

33

Honda 16080-890-691

GASKET SET, PETCOCK (NOT AVAILABLE)

Note: (Optional).

$

$

Currently unavailable

34

Honda 16950-889-015

PETCOCK ASSY. (NOT AVAILABLE)

Note: (Optional).

$

$

Not available

35

Honda 16950-890-693

PETCOCK ASSY.

Note: (Optional).

$

$

Not available
